RY 08420 B (090156010) - Ryobi Backpack Blower, Rev 01 (2018-07) Figure C Parts Diagram

Backpack Blower, Rev 01

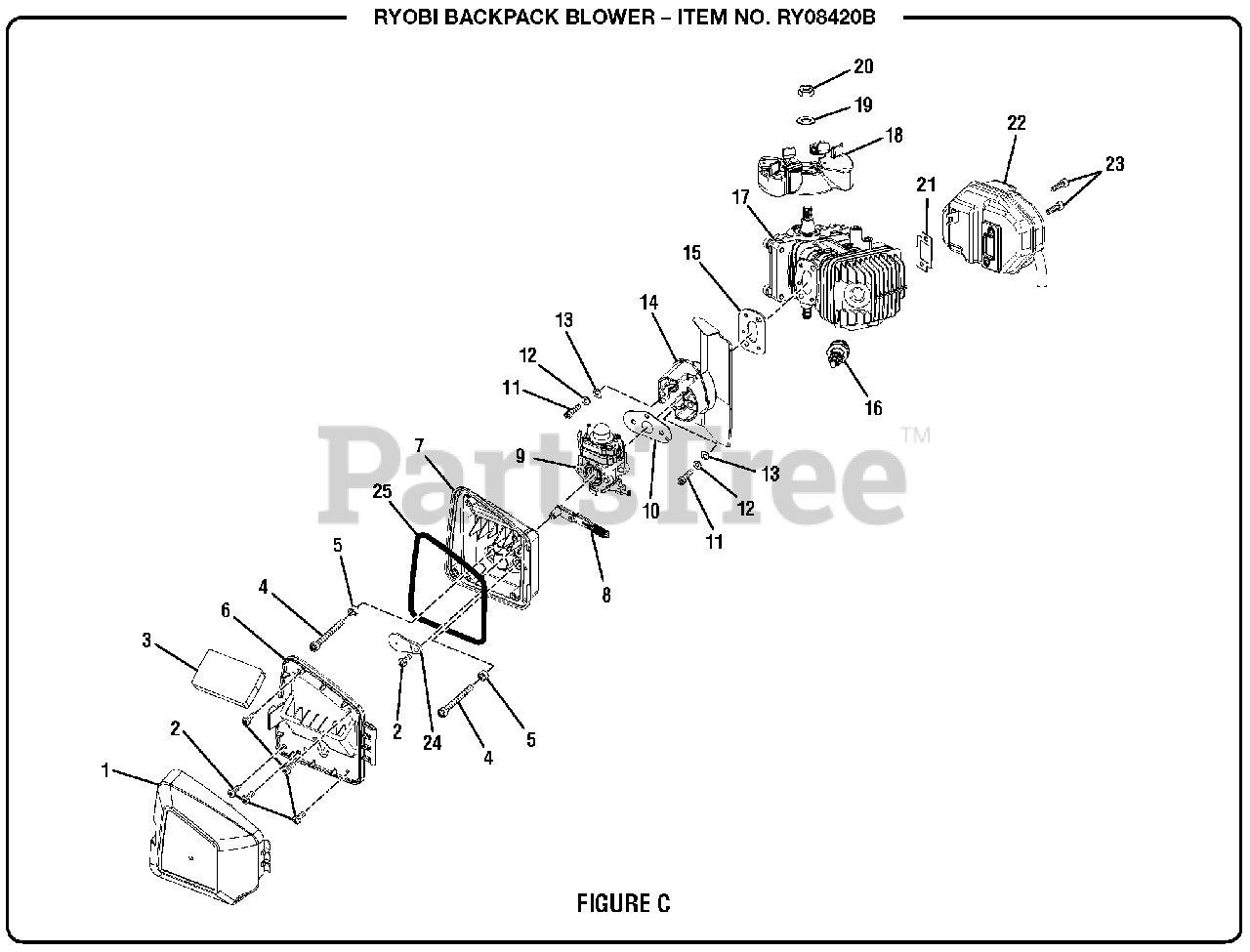

Figure C Parts Diagram

  • Title

1

Homelite 523924005

Air Box Cover

$1.49

$

In Stock, Qty 9

0

2

Homelite 660345001

Screw (M4 x 12 mm, T20 Torx Pan Hd.)
(Superseded to 983645005)

$1.49

$

In Stock, Qty 7

0

3

Homelite 901652001

Air Filter

$

$

Not available

4

Homelite 660347003

Screw (M5 x 50 mm, Soc. Hd.)

$1.49

$

In Stock, only 4 left!

0

5

Homelite 678515015

Washer (ID5.8 x OD11.5 x 1.7t)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 525019002

Midplate

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 523923002

Air Box Base

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 590458026

Choke Lever

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 308054202

Carburetor (Walbro, WYJ-536)

Note: (Inc. Key No. 8)

$

$

Not available

10

Homelite 900711015

Gasket Carb-Heat Dam

$

$

Not available

11

Homelite 661832001

Screw (M5 x 0.8 in.)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 678343002

Spring Washer (M5)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 638980003

Washer (Heat Dam)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 524583005

Heat Dam

$

$

Not available

15

Homelite 562927010

Heat Dam Gasket

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 870170001

Spark Plug (RCJ4)

Note: Standard Hardware Item - May Be Purchased Locally

$10.99

$

Usually ships in 3-7 days

0

17

Homelite 309842001

Short Block Assembly

$

$

Not available

18

Homelite 309013005

Flywheel Assembly

$15.99

$

Usually ships in 3-7 days

0

19

Homelite 631049001

Washer (ID9 x OD17.7 x 1.1t)
(Superseded to PS84065)

$

$

Not available

20

Homelite 678067001

Lock Nut (M8)

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 901653007

Gasket

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 309330004

Exhaust Assembly

$85.99

$

Usually ships in 3-7 days

0

23

Homelite 660612001

Bolt (1/4-20 x 18 mm)

$1.49

$

In Stock, only 3 left!

0

24

Homelite 590946007

Choke Plate

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 570107005

Airbox Gasket

$1.49

$

Usually ships in 3-7 days

0
