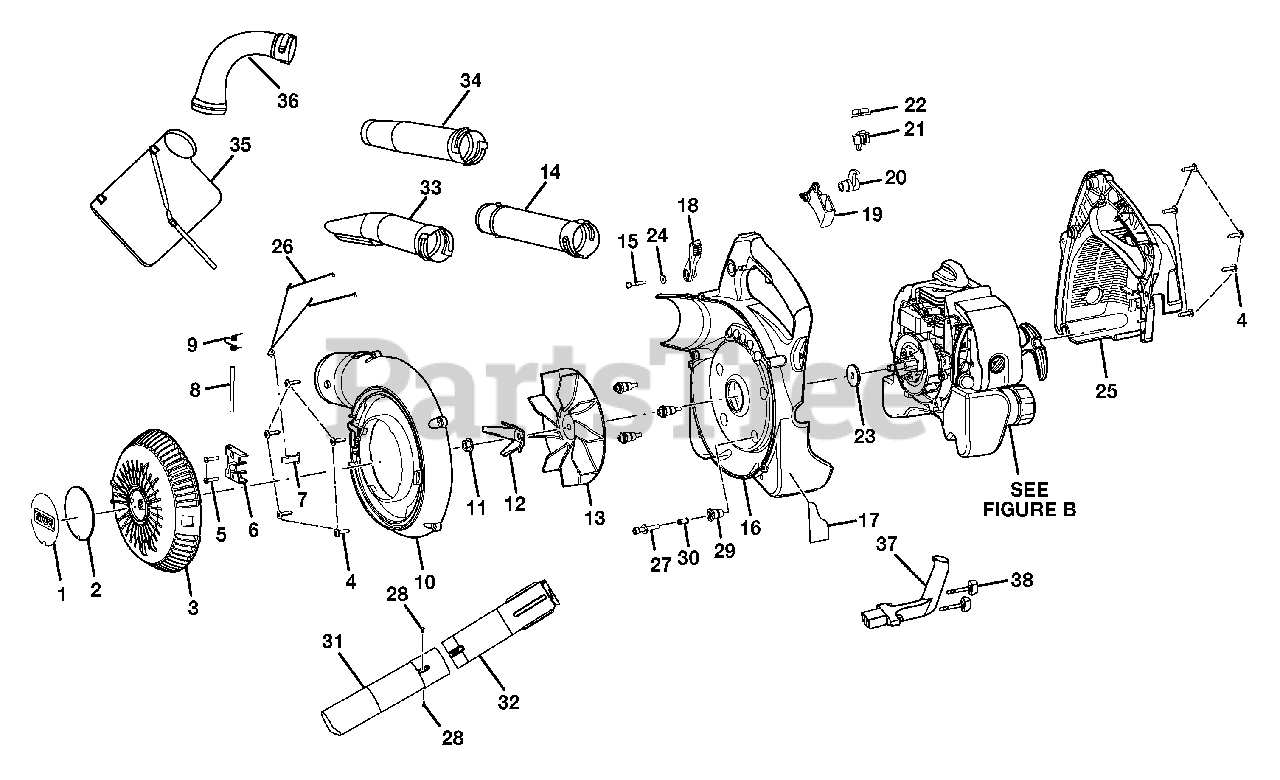

RY 08510 - Ryobi Handheld Blower Housing/ Tube Assembly Parts Diagram

Handheld Blower

Housing/ Tube Assembly Parts Diagram

  • Title

1

Homelite 940627001

VACUUM DOOR LABEL

$

$

Not available

2

Homelite 518252001

VACUUM DOOR COVER

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 518268001

VAC DOOR

$10.99

$

Usually ships in 3-7 days

0

4

Homelite 660674001

SCREW (#10-14 X 7/8 in.)
(Superseded to 82537)

Note: MAY BE PURCHASED LOCALLY

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 660665001

SCREW (#8-14 X 16.3 mm)

Note: MAY BE PURCHASED LOCALLY

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 518170001

VACUUM DOOR HINGE

$

$

Not available

7

Homelite 518254001

KILL SWITCH ACTIVATOR LEVER

$

$

Not available

8

Homelite 650026002

HINGE PIN

$

$

Not available

9

Homelite 678117001

VACUUM DOOR SPRING

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 518266001

OUTER VOLUTE HOUSING

$

$

Not available

11

Homelite 678128002

RETAINING WASHER NUT

$1.49

$

In Stock, only 1 left!

0

12

Homelite 678114001

BLADE-MULDER

$

$

Not available

13

Homelite 518265001

24.5 CC BLOWER FAN

$

$

Not available

14

Homelite 570543001

TUBE-UPPER BLOWER
(Superseded to 310845007)

$6.49

$

In Stock, Qty 18

0

15

Homelite 660666001

SCREW (#8-14 x 50 mm)

Note: MAY BE PURCHASED LOCALLY

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 518140001

HOUSING INNER VOLUTE

$

$

Not available

17

Homelite 940627005

WARNING LABEL

$

$

Not available

18

Homelite 518160001

CRUISE LEVER

$

$

Not available

19

Homelite 518255001

TRIGGER

$1.49

$

In Stock, only 1 left!

0

20

Homelite 518150001

TRIGGER LOCK

$1.49

$

In Stock, only 3 left!

0

21

Homelite 760363003

SWITCH

$

$

Not available

22

Homelite 678121001

DUST COVER

$

$

Not available

23

Homelite 678126001

WASHER-FAN SPACER

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 678125001

WASHER

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 518267001

ENGINE SHROUD HOUSING

$

$

Not available

26

Homelite 870166001

VACUUM DOOR KILL SWITCH

$

$

Not available

27

Homelite 660759002

SCREW (M5 X 30 mm CAP HD.)

Note: MAY BE PURCHASED LOCALLY

$

$

Not available

28

Homelite 660621001

SCREW (10-14 X 1/2 in.)
(Superseded to 82632)

Note: MAY BE PURCHASED LOCALLY

$1.49

$

In Stock, Qty 12

0

29

Homelite 570544002

VIBRATION ISOLATOR

$

$

Not available

30

Homelite 678124001

AV BUSHING SLEEVE

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 570562001

TUBE-LOWER VACUUM

$6.99

$

In Stock, only 1 left!

0

32

Homelite 570561001

TUBE-UPPER VACUUM

$

$

Not available

33

Homelite 580613001

TUBE NOZZLE

$

$

Not available

34

Homelite 570564001

TUBE-LOWER BLOWER

$

$

Not available

35

Homelite 900918001

VACUUM BAG ASSEMBLY
(Superseded to 983914001)

$13.99

$

In Stock, only 2 left!

0

36

Homelite 570563001

TUBE ELBOW

$

$

Not available

37

Homelite 518180001

HANDLE

$

$

Not available

38

Homelite 518273001

KNOB

$1.49

$

In Stock, Qty 10

0

39

Homelite 638179001

METAL MESH

Note: (NOT SHOWN)

$

$

Not available

40

Homelite 570624001

GROMMET

Note: (NOT SHOWN)

$

$

Not available

Homelite 983000647

OPERATOR'S MANUAL (900968002)

$

$

Not available

Homelite 983000647R

REPAIR SHEET (REV:03)

$

$

Currently unavailable
