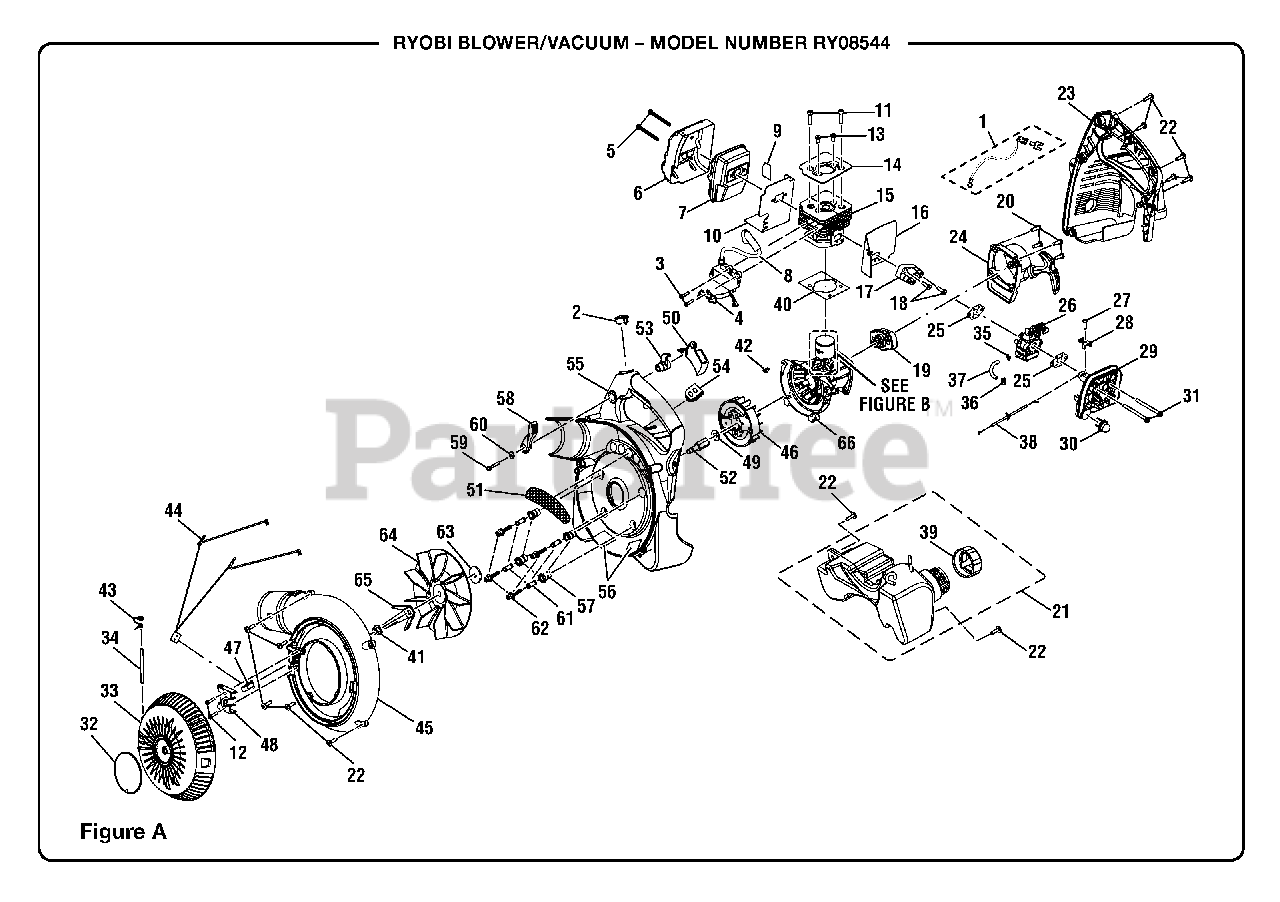

RY 08544 - Ryobi Blower Vacuum Engine Assembly Parts Diagram

Blower Vacuum

Engine Assembly Parts Diagram

  • Title

1

Homelite 290294001

Grounding Wire Kit

$2.99

$

Usually ships in 3-7 days

0

2

Homelite 760363003

Switch

$

$

Not available

3

Homelite 660349001

Screw (M4 X 22 mm)

Note: May Be Purchased Locally

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 290702001

Lead Assembly

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 660347001

Screw (M5 X 50 mm)

Note: May Be Purchased Locally

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 638027001

Heat Shield

$4.49

$

Usually ships in 3-7 days

0

7

Homelite 300748016

Muffler Assembly

$

$

Not available

8

Homelite 290178008

Coil & Boot Assembly

$

$

Not available

9

Homelite 900955003

Heat Shield

$

$

Not available

10

Homelite 638183001

Gasket Muffler

$8.99

$

In Stock, only 3 left!

0

11

Homelite 660342001

Screw (M5 X 22 mm)

Note: May Be Purchased Locally

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 660665001

Screw (#8-14 X 16.3 mm)

Note: May Be Purchased Locally

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 660351002

Screw & Washer (M5 X 10 mm)
(Superseded to 983660005)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 630002021

Plate for Cylinder

$1.49

$

In Stock, only 3 left!

0

15

Homelite 640570016

Cylinder
(Superseded to 640570026)

$70.99

$

In Stock, only 2 left!

0

16

Homelite 900711006

Insulator Gasket

$

$

Not available

17

Homelite 518329001

Insulator

$9.49

$

Usually ships in 3-7 days

0

18

Homelite 660344003

Screw & Washer (M5 X 22 mm)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 308004001

Pulley Assembly

$20.99

$

Usually ships in 3-7 days

0

20

Homelite 660351001

Screw (M5 X 16 mm)
(Superseded to 6635101)

Note: May Be Purchased Locally

$2.49

$

In Stock, Qty 10

0

21

Homelite 308342003

Fuel Tank Assembly

Note: (Inc. Key No. 39)

$

$

Not available

22

Homelite 660674001

Screw (#10-14 X 7/8 in.)
(Superseded to 82537)

Note: May Be Purchased Locally

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 518323001

Engine Shroud Housing

$

$

Not available

24

Homelite 308430001

Starter Assembly
(Superseded to 308430016)

$

$

Not available

25

Homelite 900711003

Carburetor Gasket
(Superseded to 9071103)

$

$

Not available

26

Homelite 308428003

Carburetor (Walbro WYC-8)

$

$

Not available

27

Homelite 660734001

Screw (M4 X 1.75 X16 mm Pan Hd.)

Note: May Be Purchased Locally

$2.49

$

In Stock, only 3 left!

0

28

Homelite 638133003

Clip-throttle Cable

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 518130002

Air Box Base
(Superseded to 985530002)

$

$

Not available

30

Homelite 300780002

Primer Assembly
(Superseded to 01183)

$

$

Not available

31

Homelite 660346001

Screw (M5 X 60 mm)

Note: May Be Purchased Locally

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 518252001

Vacuum Door Cover

$4.99

$

Usually ships in 3-7 days

0

33

Homelite 518268001

Vacuum Door

$21.99

$

Usually ships in 3-7 days

0

34

Homelite 650026002

Hinge Pin

$

$

Not available

35

Homelite 690700001

Clip-hose (Id 4.9)
(Superseded to 6970001)

$2.49

$

In Stock, Qty 5

0

36

Homelite 690699001

Clip-hose
(Superseded to 6969901)

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 570574001

Tubing Rubber

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 308209001

Cable Assembly

$

$

Not available

39

Homelite 300758006

Fuel Cap Assembly

$

$

Not available

40

Homelite 900709001

Cylinder Gasket
(Superseded to 9070901)

$2.49

$

Usually ships in 3-7 days

0

41

Homelite 678128002

Retaining Washer Nut

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 690688001

Key Woodruff (S43C)
(Superseded to 983784006)

$

$

Not available

43

Homelite 678117001

Vacuum Door Hinge Spring

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 870166001

Vacuum Door Kill Switch

$

$

Not available

45

Homelite 518266001

Outer Volute Housing

$

$

Not available

46

Homelite 640574001

Fly-wheel Assembly
(Superseded to 6457401)

$

$

Not available

47

Homelite 518254001

Kill Switch Activator Lever

$

$

Not available

48

Homelite 518170001

Vacuum Door Hinge

$

$

Not available

49

Homelite 678171002

Washer (2 mm)

$

$

Not available

50

Homelite 518255001

Trigger

$1.49

$

Usually ships in 3-7 days

0

51

Homelite 638179001

Metal Mesh

$

$

Not available

52

Homelite 308068002

Crank Shaft Extension

$

$

Not available

53

Homelite 518150001

Trigger Lock

$1.49

$

In Stock, only 2 left!

0

54

Homelite 570624001

Rubber Grommet

$

$

Not available

55

Homelite 518140001

Housing Inner Volute

$

$

Not available

56

Homelite 900955001

Heat Shield

$1.49

$

Usually ships in 3-7 days

0

57

Homelite 570544002

Vibration Isolator

$

$

Not available

58

Homelite 518160001

Cruise Lever

$

$

Not available

59

Homelite 660666001

Screw (#8-14 X 25 mm)

Note: May Be Purchased Locally

$2.49

$

Usually ships in 3-7 days

0

60

Homelite 678125001

Washer

$2.49

$

Usually ships in 3-7 days

0

61

Homelite 678124001

Bushing Sleeve

$1.49

$

Usually ships in 3-7 days

0

62

Homelite 660759002

Screw (M5 X 8 mm Cap Hd.)

Note: May Be Purchased Locally

$

$

Not available

63

Homelite 678126001

Washer-fan Spacer

$2.49

$

Usually ships in 3-7 days

0

64

Homelite 518265001

24.5 Cc Blower Fan

$

$

Not available

65

Homelite 678114001

Blade-mulder

$

$

Not available

66

Homelite 300749004

Crankcase Assembly

$132.99

$

Usually ships in 3-7 days

0
