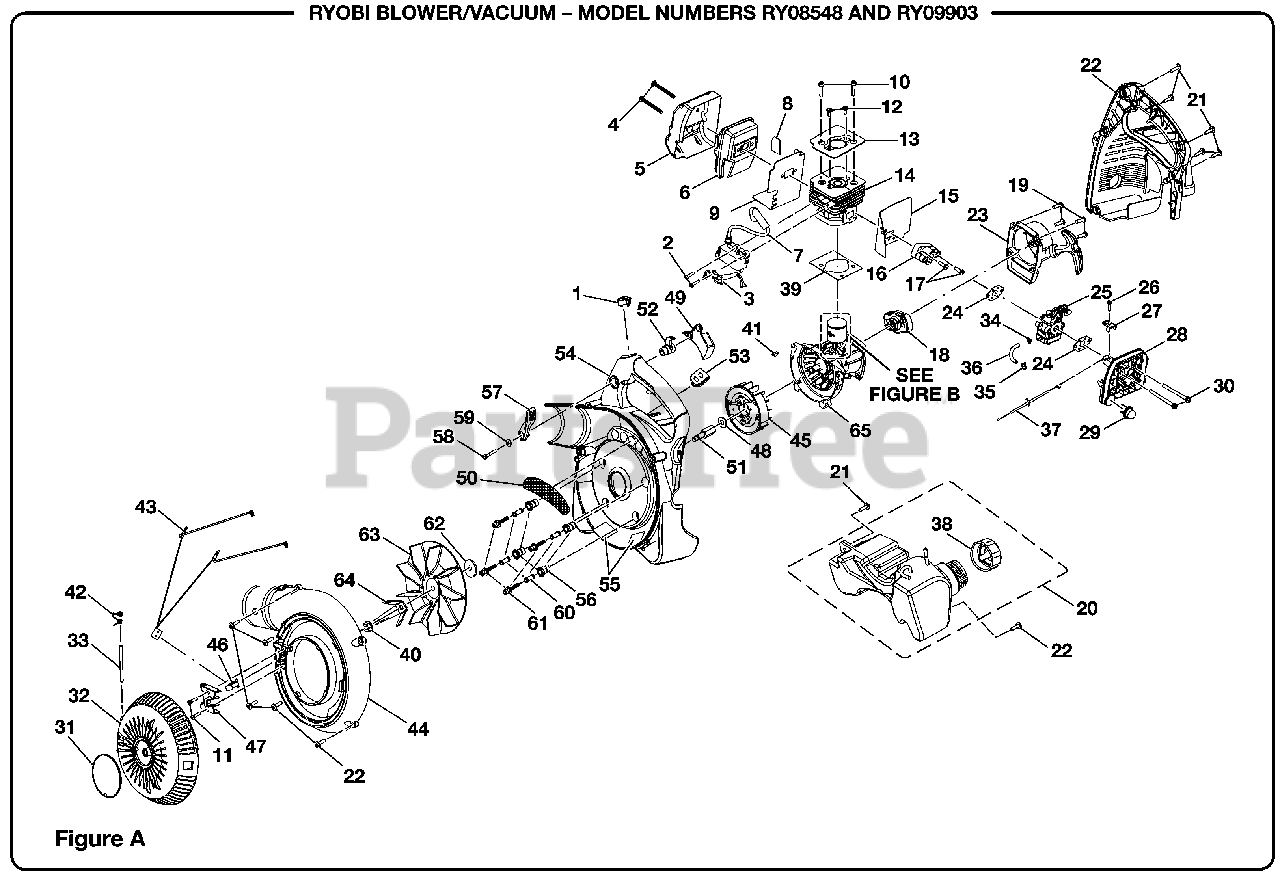

RY 08548 - Ryobi Blower Vacuum Figure A Parts Diagram

Blower Vacuum

Figure A Parts Diagram

  • Title

1

Homelite 760363003

Switch

$

$

Not available

2

Homelite 660349001

Screw (M4 X 22 mm)

Note: Purchase locally

$1.49

$

In Stock, only 3 left!

0

3

Homelite 290702001

Lead Assembly

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 660347001

Screw (M5 X 50 mm)

Note: Purchase locally

$1.49

$

In Stock, Qty 5

0

5

Homelite 638027001

Heat Shield

$4.49

$

Usually ships in 3-7 days

0

6

Homelite 300748016

Muffler Assembly

$

$

Not available

7

Homelite 290178008

Coil & Boot Assembly

$

$

Not available

8

Homelite 900955003

Heat Shield

$

$

Not available

9

Homelite 638183001

Gasket Muffler

$8.99

$

In Stock, Qty 5

0

10

Homelite 660342001

Screw (M5 X 22 mm)

Note: Purchase locally

$1.49

$

In Stock, Qty 5

0

11

Homelite 660665001

Screw (M14 X 16.3 mm)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 660351002

Screw & Washer (M5 X 10 mm)
(Superseded to 983660005)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 630002021

Cylinder Plate

$1.49

$

In Stock, only 3 left!

0

14

Homelite 640570016

Cylinder
(Superseded to 640570026)

$35.99

$

Usually ships in 3-7 days

0

15

Homelite 900711006

Insulator Gasket

$

$

Not available

16

Homelite 518329001

Insulator

$4.99

$

In Stock, only 1 left!

0

17

Homelite 660344003

Screw & Washer (M5 X 22 mm)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 308004001

Pulley Assembly

$10.99

$

Usually ships in 3-7 days

0

19

Homelite 660351001

Screw (M5 X 16 mm)
(Superseded to 6635101)

Note: Purchase locally

$1.49

$

In Stock, Qty 9

0

20

Homelite 308342005

Fuel Tank Assembly

Note: Inc. Key No. 38

$

$

Not available

21

Homelite 660674001

Screw (M14 X 7/8 in.)
(Superseded to 82537)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 518323001

Engine Shroud Housing

$

$

Not available

23

Homelite 308430001

Starter Assembly
(Superseded to 308430016)

$

$

Not available

24

Homelite 900711003

Carburetor Gasket
(Superseded to 9071103)

$

$

Not available

25

Homelite 308428003

Carburetor (Walbro WYC-8)

$

$

Not available

26

Homelite 660734001

Screw (M4 X 16 mm Pan Hd.)

Note: Purchase locally

$1.49

$

In Stock, Qty 5

0

27

Homelite 638133003

Throttle Cable Clip

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 518130002

Air Box Base
(Superseded to 985530002)

$

$

Not available

29

Homelite 300780002

Primer Assembly
(Superseded to 01183)

$

$

Not available

30

Homelite 660346001

Screw (M5 X 60 mm)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 518252001

Vacuum Door Cover

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 518268001

Vacuum Door

$10.99

$

Usually ships in 3-7 days

0

33

Homelite 650026002

Hinge Pin

$

$

Not available

34

Homelite 690700001

Hose Clip (Id 4.9)
(Superseded to 6970001)

$1.49

$

In Stock, Qty 5

0

35

Homelite 690699001

Hose Clip (Id 2.9)
(Superseded to 6969901)

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 570574001

Rubber Tubing

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 308209001

Cable Assembly

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 300758006

Fuel Cap Assembly

$

$

Not available

39

Homelite 900709001

Cylinder Gasket
(Superseded to 9070901)

$

$

Not available

40

Homelite 678128002

Hex Nut w/Retaining Washer

$1.49

$

In Stock, only 2 left!

0

41

Homelite 690688001

Woodruff Key (S43C)
(Superseded to 983784006)

$

$

Not available

42

Homelite 678117001

Vacuum Door Hinge Spring

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 870166001

Vacuum Door Kill Switch

$

$

Not available

44

Homelite 518266001

Outer Volute Housing

$

$

Not available

45

Homelite 640574001

Fly-wheel Assembly
(Superseded to 6457401)

$

$

Not available

46

Homelite 518254001

Kill Switch Activator Lever

$

$

Not available

47

Homelite 518170001

Vacuum Door Hinge

$

$

Not available

48

Homelite 678171002

Washer (2 mm)

$

$

Not available

49

Homelite 518255001

Trigger

$1.49

$

In Stock, only 1 left!

0

50

Homelite 638179001

Wire Mesh

$

$

Not available

51

Homelite 308068002

Crank Shaft Extension

$

$

Not available

52

Homelite 518150001

Trigger Lock

$1.49

$

In Stock, only 3 left!

0

53

Homelite 570624001

Rubber Grommet

$

$

Not available

54

Homelite 518140001

Inner Volute Housing

$

$

Not available

55

Homelite 900955001

Heat Shield

$1.49

$

Usually ships in 3-7 days

0

56

Homelite 570544002

Vibration Isolator

$

$

Not available

57

Homelite 518160001

Cruise Control Lever

$

$

Not available

58

Homelite 660666001

Screw (M14 X 25 mm)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

59

Homelite 678125001

Washer

$1.49

$

Usually ships in 3-7 days

0

60

Homelite 678124001

Sleeve Bushing

$1.49

$

Usually ships in 3-7 days

0

61

Homelite 660759002

Screw (M5 X 8 mm Cap Hd.)

Note: Purchase locally

$

$

Not available

62

Homelite 678126001

Fan Spacer (Washer)

$1.49

$

Usually ships in 3-7 days

0

63

Homelite 518265001

Blower Fan (24.5)

$

$

Not available

64

Homelite 678114001

Mulcher Blade

$

$

Not available

65

Homelite 300749004

Crankcase Assembly

$66.99

$

Usually ships in 3-7 days

0
