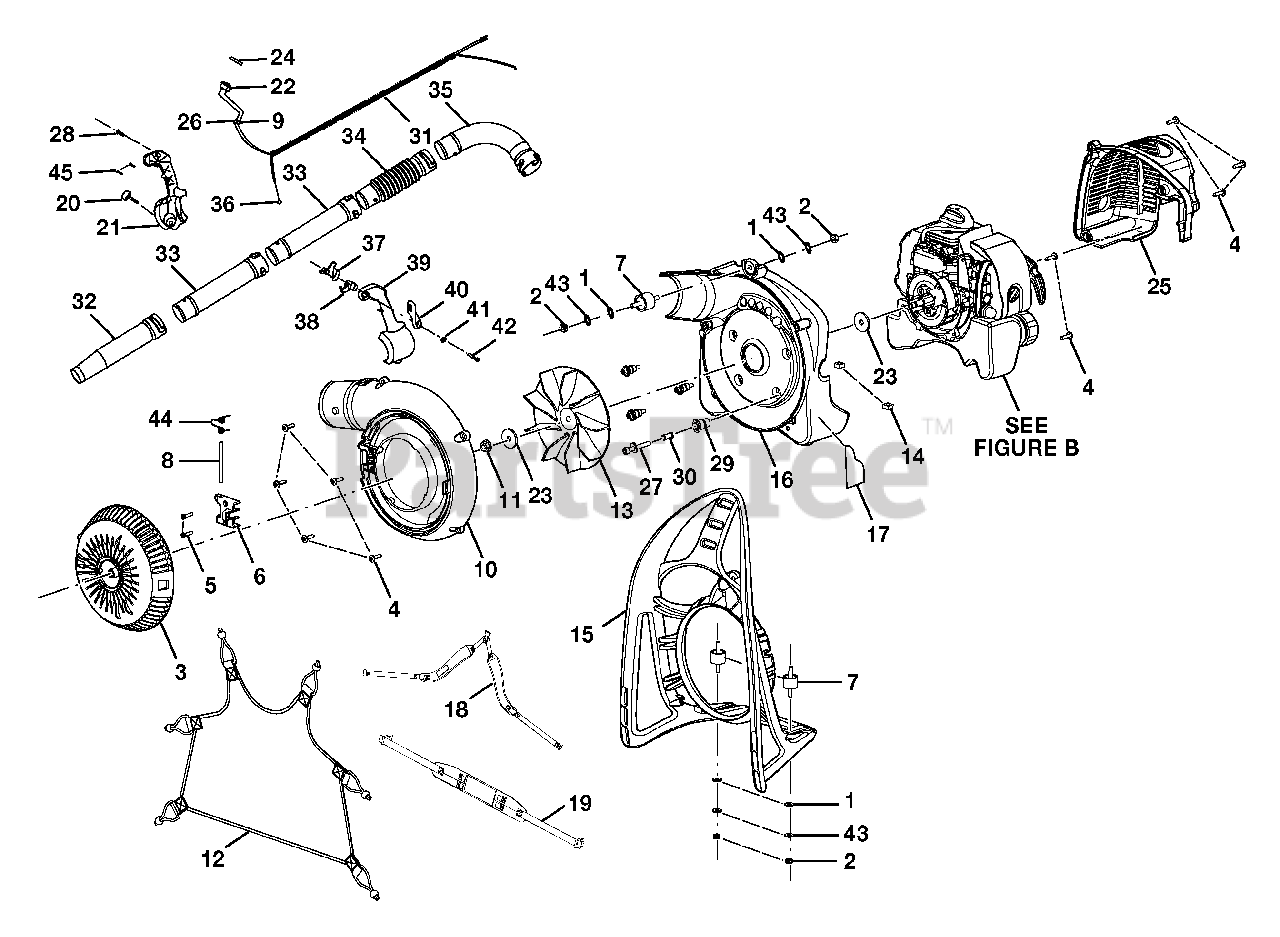

RY 08570 - Ryobi Backpack Blower Housing / Tube Assembly Parts Diagram

Backpack Blower

Housing / Tube Assembly Parts Diagram

  • Title

1

Homelite 678186002

WASHER

$

$

Not available

2

Homelite 678190002

NUT

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 518268001

VAC DOOR

$10.99

$

Usually ships in 3-7 days

0

4

Homelite 660674001

SCREW (#10-14 X 7/8 in.)
(Superseded to 82537)

Note: MAY BE PURCHASED LOCALLY

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 660665001

SCREW (#8-14 x 16.3 mm)

Note: MAY BE PURCHASED LOCALLY

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 518170001

VACUUM DOOR HINGE

$

$

Not available

7

Homelite 570546001

RUBBER AV ISOLATOR

$

$

Not available

8

Homelite 650026002

HINGE PIN

$

$

Not available

9

Homelite 290703002

LEAD ASSEMBLY (BLACK)

$

$

Not available

10

Homelite 518266001

OUTER VOLUTE HOUSING

$

$

Not available

11

Homelite 678128002

RETAINING WASHER NUT

$1.49

$

In Stock, only 1 left!

0

12

Homelite 900964001

BACK PAD

$6.99

$

Usually ships in 3-7 days

0

13

Homelite 518265001

24.5 CC BLOWER FAN

$

$

Not available

14

Homelite 678108001

SQUARE NUT
(Superseded to 81246)

$

$

Not available

15

Homelite 570547001

FRAME

$

$

Not available

16

Homelite 518270001

HOUSING INNER VOLUTE

$

$

Not available

17

Homelite 940627005

WARNING LABEL

$

$

Not available

18

Homelite 900962001

SHOULDER STRAPS

$

$

Not available

19

Homelite 900963001

WAIST STRAP

$6.49

$

Usually ships in 3-7 days

0

20

Homelite 518273002

KNOB

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 518272001

HOUSING-RH

$

$

Not available

22

Homelite 760363003

SWITCH

$

$

Not available

23

Homelite 678126001

FAN SPACER WASHER

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 678121001

DUST COVER

$

$

Not available

25

Homelite 518269001

ENGINE SHROUD HOUSING

$

$

Not available

26

Homelite 290703001

LEAD ASSEMBLY (RED)

$

$

Not available

27

Homelite 660759002

SCREW (M5 X 0.8 CAP HD.)

Note: MAY BE PURCHASED LOCALLY

$

$

Not available

28

Homelite 660629001

SCREW (#10-14 X 3/4 in.)
(Superseded to 82563)

Note: MAY BE PURCHASED LOCALLY

$1.49

$

In Stock, Qty 6

0

29

Homelite 570544002

VIBRATION ISOLATOR

$

$

Not available

30

Homelite 678124001

AV BUSHING SLEEVE

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 518210002

CORRUGATED TUBE

$3.99

$

Usually ships in 3-7 days

0

32

Homelite 570564001

TUBE-LOWER BLOWER

$

$

Not available

33

Homelite 570543001

TUBE-UPPER BLOWER
(Superseded to 310845007)

$6.49

$

In Stock, Qty 18

0

34

Homelite 570566001

BELLOWS

$5.99

$

Usually ships in 3-7 days

0

35

Homelite 580600001

BLOWER ELBOW

$5.49

$

Usually ships in 3-7 days

0

36

Homelite 308026003

CABLE ASSEMBLY

$2.99

$

Usually ships in 3-7 days

0

37

Homelite 518255001

TRIGGER

$1.49

$

In Stock, only 1 left!

0

38

Homelite 518150001

TRIGGER LOCK

$1.49

$

In Stock, only 3 left!

0

39

Homelite 518271001

HOUSING-LH

$

$

Not available

40

Homelite 518160001

CRUISE LEVER

$

$

Not available

41

Homelite 678125001

WASHER

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 660666001

SCREW (#8-14 x 50 mm)

Note: MAY BE PURCHASED LOCALLY

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 678109001

LOCK WASHER
(Superseded to 83061)

$

$

Not available

44

Homelite 678117001

SPRING

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 660734001

SCREW (M4 X 1.75 X 16 PAN HD.)

Note: MAY BE PURCHASED LOCALLY

$1.49

$

In Stock, Qty 5

0

46

Homelite 570624001

GROMMET

Note: (NOT SHOWN)

$

$

Not available

Homelite 983000699

OPERATOR'S MANUAL

Note: (900968001)

$

$

Not available

Homelite 983000699R

REPAIR SHEET

Note: (REV:03)

$

$

Currently unavailable
