RY 09460 - Ryobi Blower Figure A Parts Diagram

Blower

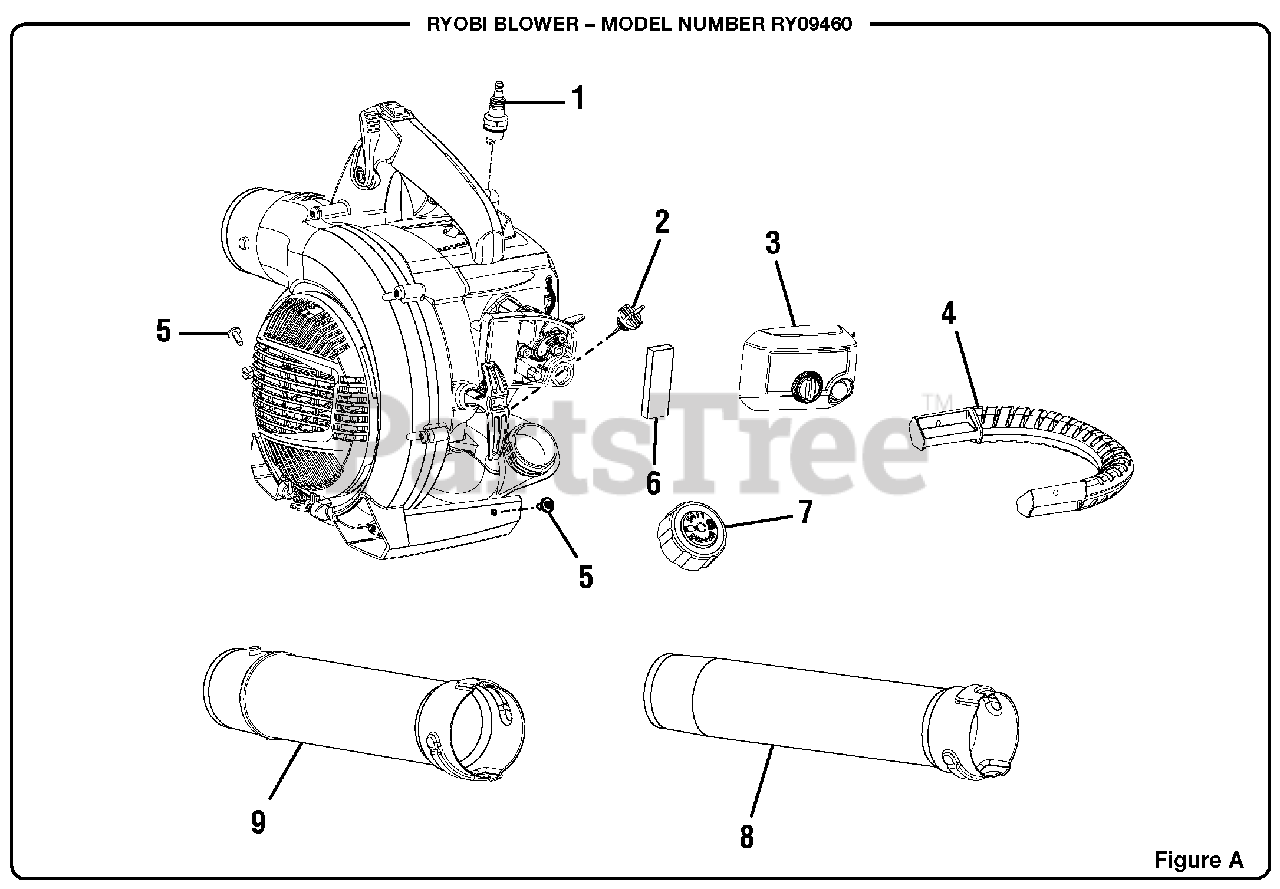

Figure A Parts Diagram

  • Title

1

Homelite 870301002

Spark Plug (RY4C)

$8.49

$

In Stock, only 4 left!

0

2

Homelite 310302001

Oil Fill Cap w/Dipstick

$1.49

$

In Stock, only 2 left!

0

3

Homelite 310804002

Air Filter Cover

$

$

Not available

4

Homelite 521504002

Handle

$2.49

$

In Stock, only 2 left!

0

5

Homelite 660621001

Screw (10-14 x 1/2 in.)
(Superseded to 82632)

$1.49

$

In Stock, Qty 12

0

6

Homelite 901696001

Filter

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 310816002

Fuel Cap Assembly

$2.99

$

In Stock, only 1 left!

0

8

Homelite 580537002

Sweeper Nozzle
(Superseded to 306947001)

$7.99

$

In Stock, only 2 left!

0

9

Homelite 570543002

Upper Blower Tube
(Superseded to 306947001)

$7.99

$

In Stock, only 2 left!

0

Homelite 940477003

Warning Label

Note: Not Shown

$1.49

$

Usually ships in 3-7 days

0

Homelite 940705075

Logo Label

Note: Not Shown

$1.49

$

Usually ships in 3-7 days

0

Homelite 940734066

Starting Label

Note: Not Shown

$1.49

$

Usually ships in 3-7 days

0

Homelite 940855001

Run/Start Label

Note: Not Shown

$

$

Not available

Homelite 940752006

Logo Label

Note: Not Shown

$1.49

$

Usually ships in 3-7 days

0

Homelite 940654088

Combustion Warning Label

Note: Not Shown

$1.49

$

In Stock, only 3 left!

0

Homelite 940871001

Add Oil Label

Note: Not Shown

$

$

Not available

Homelite 940862001

No Mix Label

Note: Not Shown

$

$

Not available

Homelite 940863001

Stop Label

Note: Not Shown

$1.49

$

Usually ships in 3-7 days

0

Homelite 988000290

Operator's Manual

Note: Not Shown

$

$

Not available
