RY 09605 - Ryobi Backpack Blower Figure A Parts Diagram

Backpack Blower

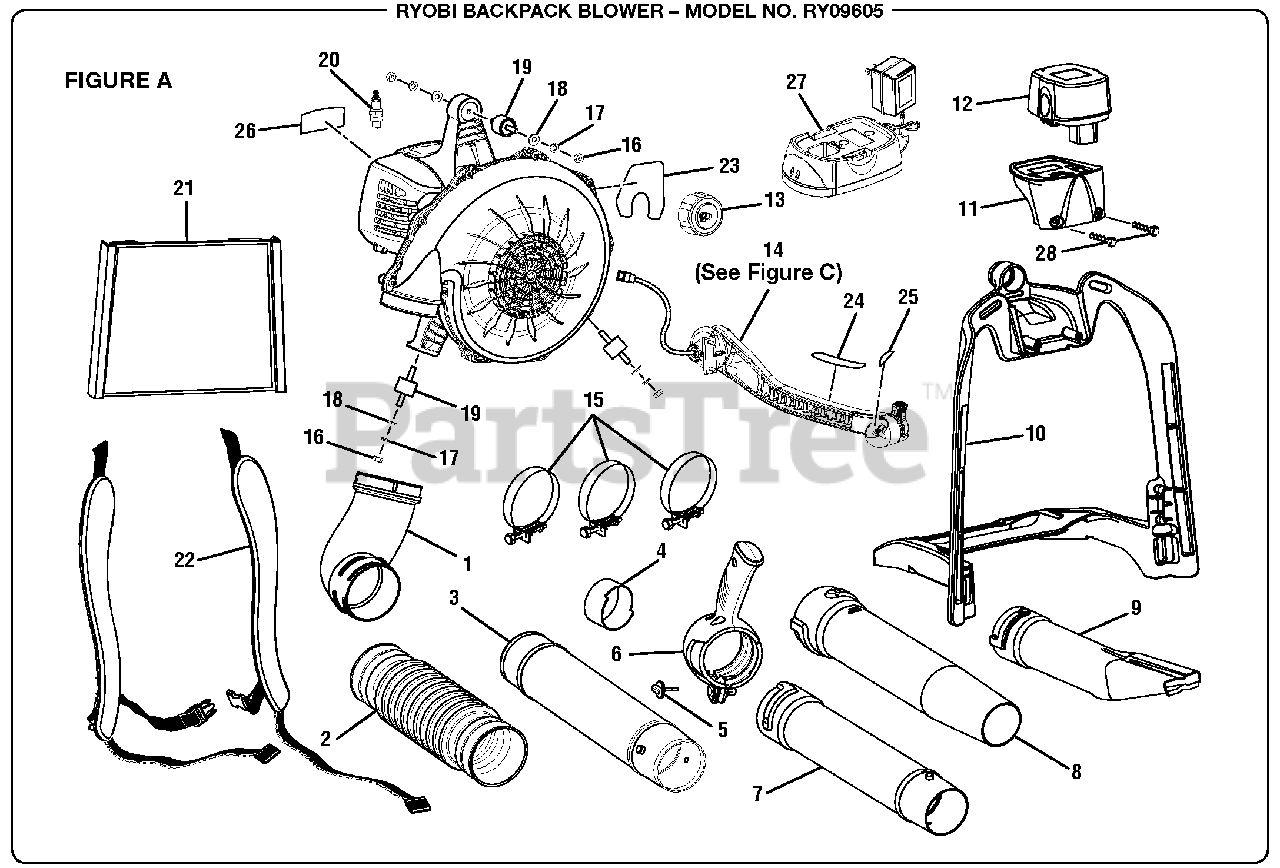

Figure A Parts Diagram

  • Title

1

Homelite 580819002

Elbow
(Superseded to 580819001)

$

$

Not available

2

Homelite 580693003

Bellows

$

$

Not available

3

Homelite 580692001

Upper Tube

$4.49

$

Usually ships in 3-7 days

0

4

Homelite 518481001

Bushing

$1.49

$

In Stock, only 1 left!

0

5

Homelite 590461001

Thumb Screw
(Superseded to 5946101)

$1.49

$

In Stock, only 2 left!

0

6

Homelite 309003001

Adjustable Handle Assembly (Inc. Key No. 5)

$

$

Not available

7

Homelite 570543001

Lower Tube
(Superseded to 310845007)

$6.49

$

In Stock, Qty 18

0

8

Homelite 580537001

Nozzle
(Superseded to 310845007)

$6.49

$

In Stock, Qty 18

0

9

Homelite 580613001

High Velocity Nozzle w/Leaf Scraper

$

$

Not available

10

Homelite 518826001

Frame

$23.99

$

Usually ships in 3-7 days

0

11

Homelite 518646001

Battery Receiver

$4.99

$

In Stock, only 1 left!

0

12

Homelite 130269012

12 Volt Battery

$58.99

$

Usually ships in 3-7 days

0

13

Homelite 310816001

Fuel Cap Assembly

$

$

Not available

14

Homelite 310694001

Throttle Arm Assembly

$

$

Not available

15

Homelite 308645001

Tube Clamp

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 678190002

Hex Nut (1/4-20)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 678109001

Lock Washer
(Superseded to 83061)

$

$

Not available

18

Homelite 678186002

Washer

$

$

Not available

19

Homelite 570546001

Vibration Isolators

$

$

Not available

20

Homelite 870174001

Spark Plug (Champion RCJ6Y)

$4.99

$

In Stock, Qty 20+

0

21

Homelite 901589001

Mesh Backing

$

$

Not available

22

Homelite 901588001

Harness Assembly

$

$

Not available

23

Homelite 940734053

Starting Label

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 940654073

Warning Label

$

$

Not available

25

Homelite 940663002

Touch Start Label

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 940705025

Logo Label

$

$

Not available

27

Homelite 140295003

Charger

$

$

Not available

28

Homelite 660629005

Screw (10-24 x 3/4 in.)

$1.49

$

In Stock, Qty 5

0

Homelite 987000898

Engine Starting Procedure

Note: (Not Shown)

$

$

Currently unavailable

Homelite 987000896

Operator's Manual (960393004)

Note: (Not Shown)

$

$

Not available
