RY 09605 - Ryobi Backpack Blower Figure C Parts Diagram

Backpack Blower

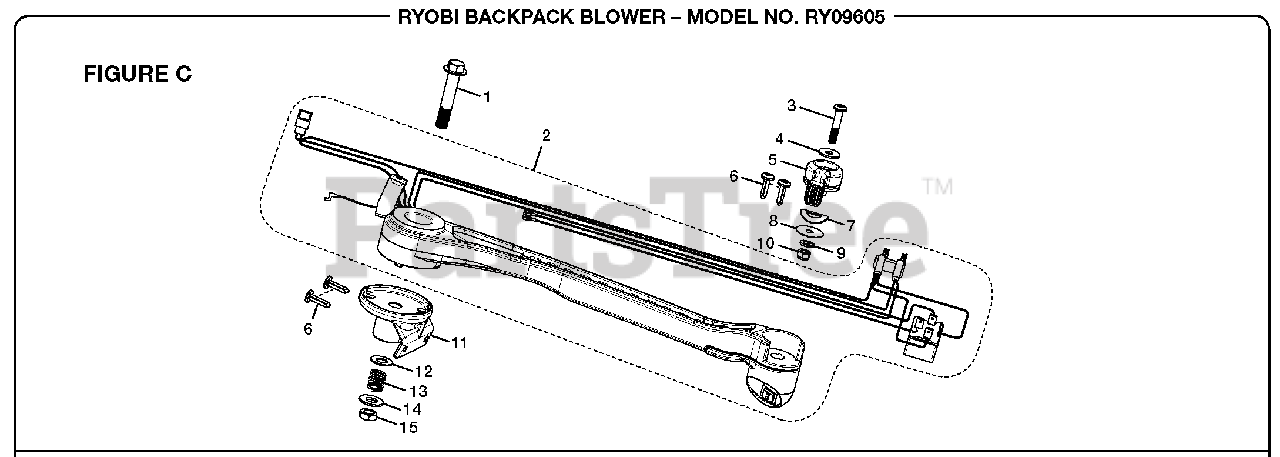

Figure C Parts Diagram

  • Title

1

Homelite 661523002

Bolt w/washer (M10 x 53 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 308315005

Arm, Switch and Wiring Assembly

$

$

Not available

3

Homelite 660755002

Screw (M6 x 32 mm)

$

$

Not available

4

Homelite 638319002

Washer

$

$

Not available

5

Homelite 518653001

Throttle Shield

$

$

Not available

6

Homelite 660629001

Screw (10-14 x 3/4 in.)
(Superseded to 82563)

$1.49

$

In Stock, Qty 6

0

7

Homelite 638518002

Wavy Washer

$

$

Not available

8

Homelite 638518001

Washer

$

$

Not available

9

Homelite 678109001

Lock Washer
(Superseded to 83061)

$

$

Not available

10

Homelite 678460002

Lock Nut (M6 x 6 mm)

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 518654001

Arm Mount

$

$

Not available

12

Homelite 638520001

Washer

$

$

Not available

13

Homelite 678648001

Compression Spring

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 638519001

Washer

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 678647001

Hex Nut (M10 x 5 mm)

$1.49

$

Usually ships in 3-7 days

0
