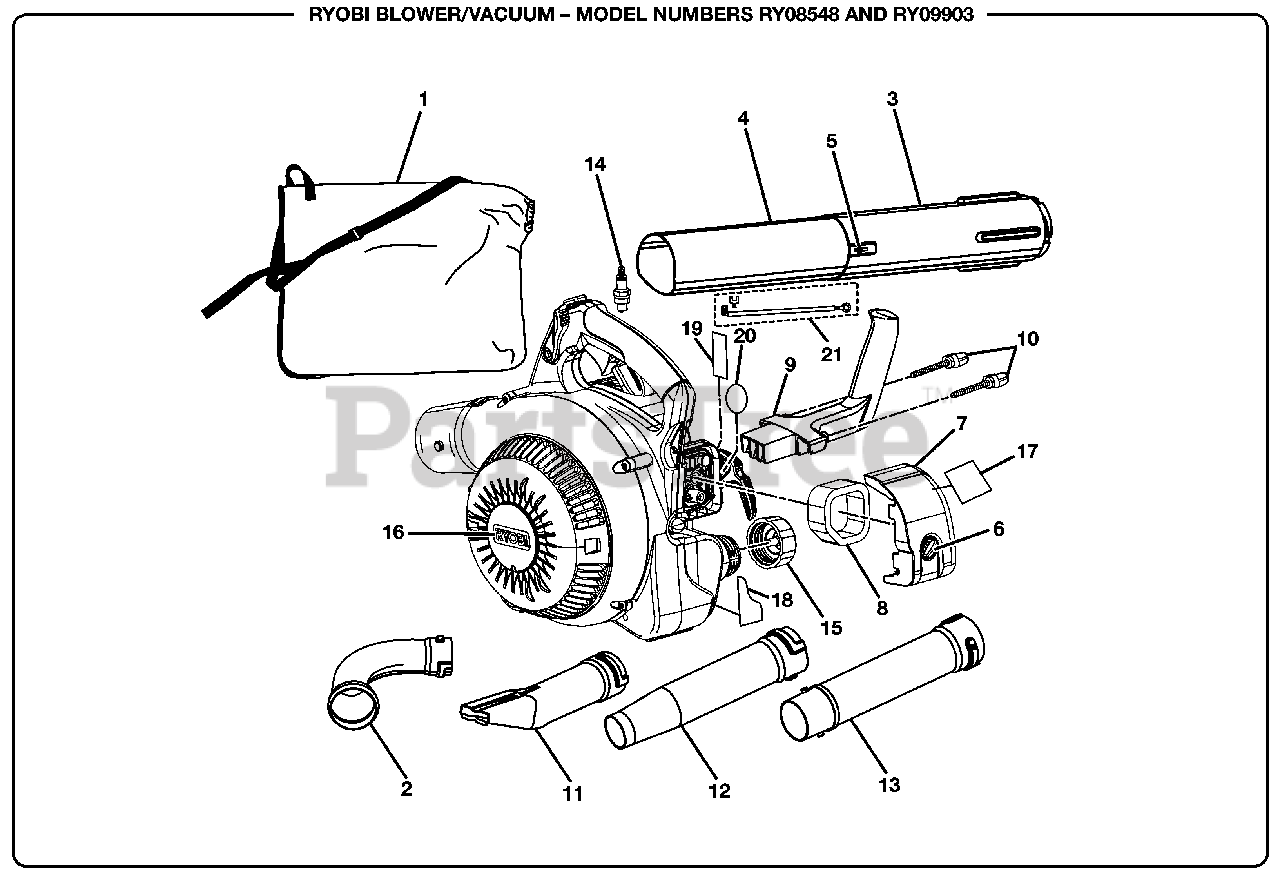

RY 09903 - Ryobi Blower Vacuum General Assembly Parts Diagram

Blower Vacuum

General Assembly Parts Diagram

  • Title

1

Homelite 900960001

Vacuum Bag w/Shoulder Strap

$13.99

$

In Stock, only 2 left!

0

2

Homelite 570563001

Vacuum Bag Adaptor

$

$

Not available

3

Homelite 570561001

Upper Vacuum Tube

$

$

Not available

4

Homelite 570562001

Lower Vacuum Tube

$6.99

$

In Stock, only 1 left!

0

5

Homelite 660621001

Vacuum Tube Screws
(Superseded to 82632)

$1.49

$

In Stock, Qty 12

0

6

Homelite 590461001

Air Filter Knob
(Superseded to 5946101)

$1.49

$

In Stock, only 2 left!

0

7

Homelite 518253001

Air Filter Cover

$

$

Not available

8

Homelite 560873001

Air Filter
(Superseded to 5687301)

$

$

Not available

9

Homelite 518180001

Vacuum Handle

$

$

Not available

10

Homelite 518273001

Vacuum Handle Knobs

$1.49

$

In Stock, Qty 10

0

11

Homelite 580613001

High Velocity Nozzle w/Leaf Scraper

$

$

Not available

12

Homelite 570564001

Sweeper Nozzle

$

$

Not available

13

Homelite 570543001

Upper Blower Tube
(Superseded to 310845007)

$6.49

$

In Stock, Qty 18

0

14

Homelite 870170001

Spark Plug

Note: (Champion RCJ4); Purchase locally

$10.99

$

Usually ships in 3-7 days

0

15

Homelite 300758006

Fuel Cap Assembly

$

$

Not available

16

Homelite 940627001

Vacuum Door Label

$

$

Not available

17

Homelite 940627004

Starting Instructions Label

$1.49

$

In Stock, only 2 left!

0

18

Homelite 940627005

Warning Label

$

$

Not available

19

Homelite 940627007

Starting Label

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 940627006

Zip Start Label

$

$

Not available

21

Homelite 308825001

Ground Wire Kit

$

$

Not available

Homelite 987000081

Operator's Manual (960968009)

$

$

Not available
