RY 13010 - Ryobi Walk-Behind Trimmer, 30cc Figure A Parts Diagram

Walk-Behind Trimmer, 30cc

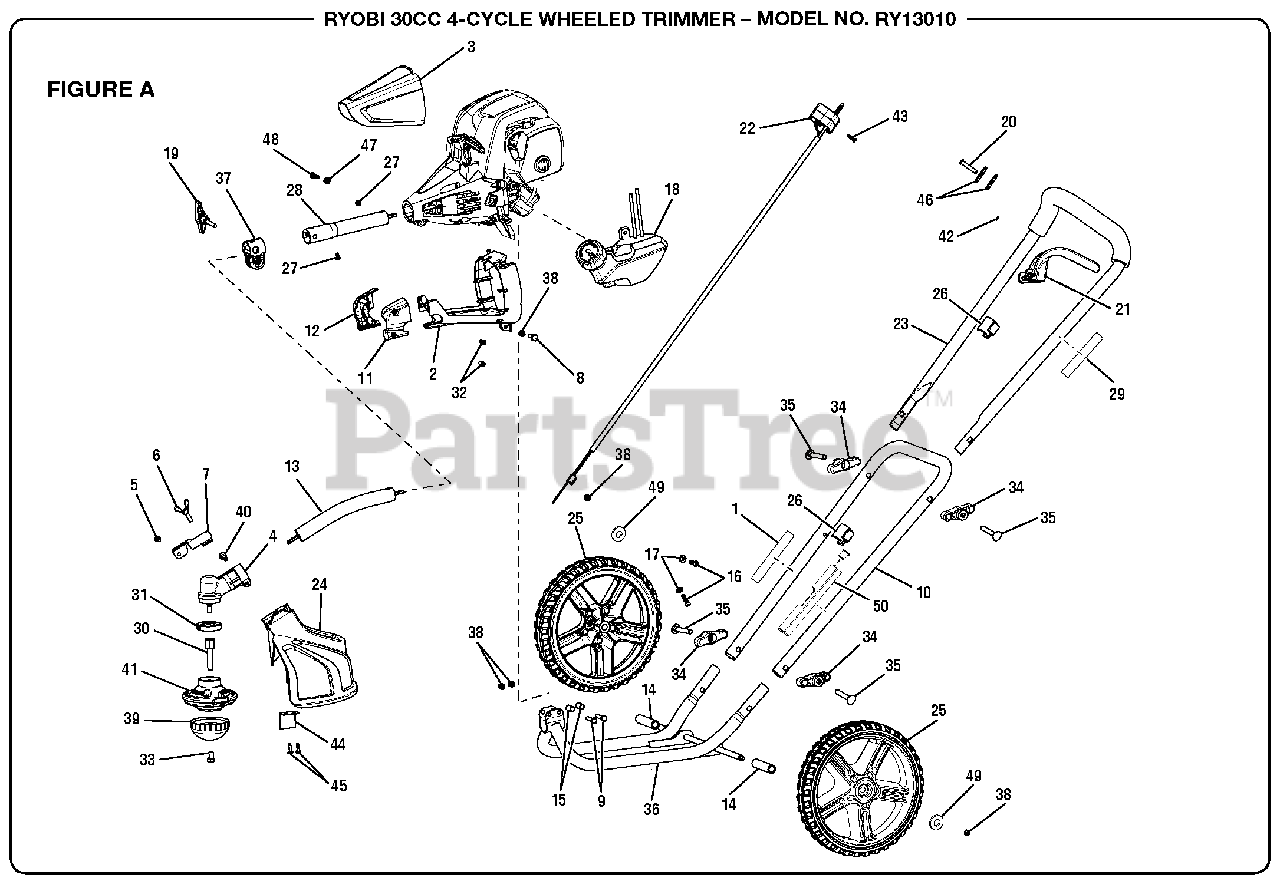

Figure A Parts Diagram

  • Title

1

Homelite 940974010

Warning Label (Fire)

$

$

Not available

2

Homelite 519844001

Screen Frame

$3.99

$

Usually ships in 3-7 days

0

3

Homelite 638179003

Mesh Screen

$

$

Not available

4

Homelite 308210002

Gear Case Assembly
(Superseded to 308210009)

$56.99

$

In Stock, only 2 left!

0

5

Homelite 660736001

Screw (10-24 x 5/8 in., Hex Washer Hd.)
(Superseded to 983774003)

$2.49

$

In Stock, Qty 5

0

6

Homelite 660886001

Wing Screw (1/4-20 x 3/4 in.)

$2.49

$

In Stock, only 4 left!

0

7

Homelite 638125001

String Guard Clamp
(Superseded to PS04420)

$5.49

$

In Stock, only 2 left!

0

8

Homelite 660154006

Bolt (M6 x 16 mm, Hex Hd.)

$

$

Not available

9

Homelite 660903002

Bolt (M6 x 28 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 638740001

Center Handle

$

$

Not available

11

Homelite 519846001

Left Screen Cap

$

$

Not available

12

Homelite 519847001

Right Screen Cap

$

$

Not available

13

Homelite 309021001

Lower Boom Assembly

$

$

Not available

14

Homelite 519864001

Shaft Spacer

$

$

Not available

15

Homelite 638748001

Clamp Spacer

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 660970008

Screw (M4)

$

$

Not available

17

Homelite 638576001

Washer

$

$

Not available

18

Homelite 309018002

Fuel Tank & Cap Assembly

$

$

Not available

19

Homelite 308045005

Knob (1/4-20)

$

$

Not available

20

Homelite 638132001

Pivot Pin

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 518256003

Trigger

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 308330003

Throttle Cable Assembly

$

$

Not available

23

Homelite 309019001

Upper Handle Assembly

$19.99

$

Usually ships in 3-7 days

0

24

Homelite 519856001

Grass Shield (Incl. Key Nos. 44-45)

$

$

Not available

25

Homelite 309023001

Wheel Assembly (10 in.)

$

$

Not available

26

Homelite 519801001

Cable Clip

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 660634001

Screw (8-16 x 5/16 in., Torx Hd.)

$2.49

$

In Stock, Qty 20+

0

28

Homelite 309022001

Upper Boom Assembly

$

$

Not available

29

Homelite 940230132

Warning Label
(Superseded to 984032001)

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 678019002

Stringhead Adapter w/Shaft

$

$

Not available

31

Homelite 678011001

Flanged Washer
(Superseded to 099078001005)

$12.99

$

In Stock, only 1 left!

0

32

Homelite 660840001

Screw (M4 x 12 mm, T20 Torx Hd.)
(Superseded to 983638006)

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 660649001

Screw (5/16 x 1/2 in., Left Hand)

$2.49

$

In Stock, only 4 left!

0

34

Homelite 310262004

Knob w/Nut Assembly

$5.99

$

Usually ships in 3-7 days

0

35

Homelite 661527001

Carriage Bolt

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 309020001

Frame Assembly

$

$

Not available

37

Homelite 638010003

Split Boom Clamp

$3.99

$

Usually ships in 3-7 days

0

38

Homelite 678460002

Lock Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 519831001

Mow Ball

$3.99

$

Usually ships in 3-7 days

0

40

Homelite 660642001

Screw (1/4-20 x 1-1/4 in.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

41

Homelite 308925001

Stringhead Assembly

$

$

Not available

42

Homelite 678135001

E-Ring

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 660669001

Screw

$2.49

$

In Stock, only 3 left!

0

44

Homelite 638020001

Cut-off Blade
(Superseded to 07129)

$

$

Not available

45

Homelite 660675001

Screw (8-16 x 5/8 in.)

$2.49

$

Usually ships in 3-7 days

0

46

Homelite 590462002

Washer

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 678029002

Hex Nut (M6)

$2.49

$

In Stock, only 4 left!

0

48

Homelite 660697002

Screw (M6 x 20 mm)

$2.49

$

In Stock, only 4 left!

0

49

Homelite 678587001

Washer

$2.49

$

In Stock, Qty 10

0

50

Homelite 310818001

Line Carrier Assembly

$3.49

$

Usually ships in 3-7 days

0

Homelite 987000649

Operator's Manual (960409001)

Note: Not Shown

$

$

Not available
