RY 13050 A - Ryobi Walk-Behind Edger, 30cc Figure A Parts Diagram

Walk-Behind Edger, 30cc

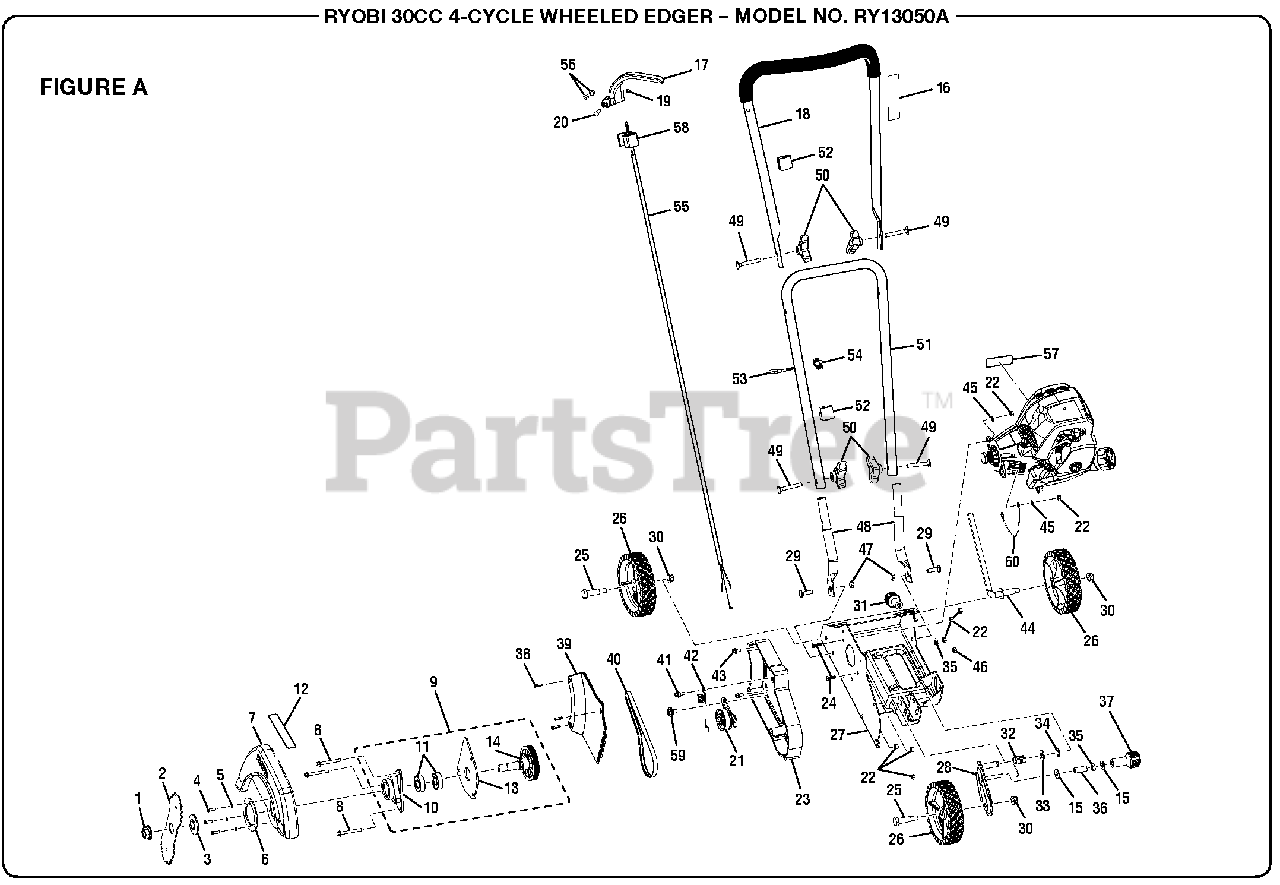

Figure A Parts Diagram

  • Title

1

Homelite 678254002

Blade Nut (M16, Flanged)

$

$

Not available

2

Homelite 638006008

Edger Blade

$

$

Not available

3

Homelite 678011005

Flanged Washer

$

$

Not available

4

Homelite 660887001

Screw (10-24 x 5/8 in, Hex Hd.)
(Superseded to 099078001007)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 678263001

Lock Washer (5mm)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 638252002

Ring Washer

$

$

Not available

7

Homelite 518664003

Guard

$

$

Not available

8

Homelite 661314001

Bolt (M6 x 55 mm)

$

$

Not available

9

Homelite 310532001

Front Pulley Assembly

$

$

Not available

10

Homelite 640253001

Bearing Plate

$

$

Not available

11

Homelite 678719001

Ball Bearing (6203-2RS)

$5.49

$

Usually ships in 3-7 days

0

12

Homelite 940657011

Warning Label (Guard)

$

$

Not available

13

Homelite 638727001

Mounting Plate

$

$

Not available

14

Homelite 310769001

Blade Shaft and Pulley Assembly

$9.49

$

Usually ships in 3-7 days

0

15

Homelite 638294002

Washer

$

$

Not available

16

Homelite 940654114

Warning Label (Upper Handle)

$

$

Currently unavailable

17

Homelite 518256003

Trigger

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 309019001

Upper Handle Assembly

$19.99

$

Usually ships in 3-7 days

0

19

Homelite 678135001

E-Ring

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 638132001

Pivot Pin

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 310529001

Idler Pulley Assembly

$

$

Not available

22

Homelite 678490002

Lock Nut (M6)

$1.49

$

In Stock, only 4 left!

0

23

Homelite 519809001

Guard Cover Base

$

$

Not available

24

Homelite 660697002

Screw (M6 x 20 mm)

$1.49

$

In Stock, only 1 left!

0

25

Homelite 660843002

Shoulder Bolt (M10 x 34 mm)

$

$

Not available

26

Homelite 308236002

Wheel Assembly (6 in.)

$9.49

$

Usually ships in 3-7 days

0

27

Homelite 310526001

Edger Base w/Bushings

$

$

Not available

28

Homelite 310745001

Front Wheel Bracket Assembly

$

$

Not available

29

Homelite 660866002

Handle Bar Bolt (M8)

$

$

Not available

30

Homelite 678331002

Lock Nut (M10, Flange)

$

$

Not available

31

Homelite 678217002

Axle Spring

$

$

Not available

32

Homelite 678591002

Front Axle Spring

$

$

Not available

33

Homelite 638728001

Washer (M13)

$

$

Not available

34

Homelite 678279002

E-Ring

$

$

Not available

35

Homelite 638454002

Lock Washer (M8)

$

$

Not available

36

Homelite 638731001

Front Axle Bushing

$

$

Not available

37

Homelite 308187002

Wheel Adjuster Knob

$5.99

$

Usually ships in 3-7 days

0

38

Homelite 660563001

Bolt (M6 x 16 mm, Thread Forming)
(Superseded to 660734001)

$1.49

$

In Stock, Qty 5

0

39

Homelite 519808001

Belt Cover

$

$

Not available

40

Homelite 570404001

Belt

$

$

Not available

41

Homelite 661314004

Shoulder Bolt (M6 x 17 mm)

$

$

Not available

42

Homelite 672947001

Idle Pulley Spring

$

$

Not available

43

Homelite 661314003

Bolt (M6 x 12 mm)

$

$

Not available

44

Homelite 310744002

Bracket Assembly

$

$

Not available

45

Homelite 678587001

Washer (6 mm)

$1.49

$

In Stock, Qty 5

0

46

Homelite 678355002

Hex Nut (M8)

$

$

Not available

47

Homelite 678339001

Flange Nut (M8)

$1.49

$

Usually ships in 3-7 days

0

48

Homelite 638724001

Handle Post

$

$

Not available

49

Homelite 661527001

Carriage Bolt (M8 x 60 mm)

$1.49

$

Usually ships in 3-7 days

0

50

Homelite 310262004

Knob Assembly

$3.49

$

Usually ships in 3-7 days

0

51

Homelite 638740001

Lower Handle

$

$

Not available

52

Homelite 519801001

Cable Clip

$1.49

$

Usually ships in 3-7 days

0

53

Homelite 661527002

Hook Screw (M5 x 18 mm)

$

$

Not available

54

Homelite 518949002

Wing Nut (M5)

$

$

Not available

55

Homelite 308330005

Throttle Cable Assembly

$15.99

$

Usually ships in 3-7 days

0

56

Homelite 590462002

Plastic Washer

$1.49

$

Usually ships in 3-7 days

0

57

Homelite 940974010

Warning Label (Combustion)

$

$

Not available

58

Homelite 760679001

Switch

$

$

Not available

59

Homelite 661314002

Shoulder Bolt (M8)

$

$

Not available

60

Homelite 308863027

Ground Wire

$

$

Not available

Homelite 638540001

Hex Key (8 mm)

Note: (Not Shown)

$

$

Not available

Homelite 987000606

Operator's Manual (960410001)

Note: (Not Shown)

$

$

Not available
