RY 13050 A - Ryobi Walk-Behind Edger, 30cc Figure C Parts Diagram

Walk-Behind Edger, 30cc

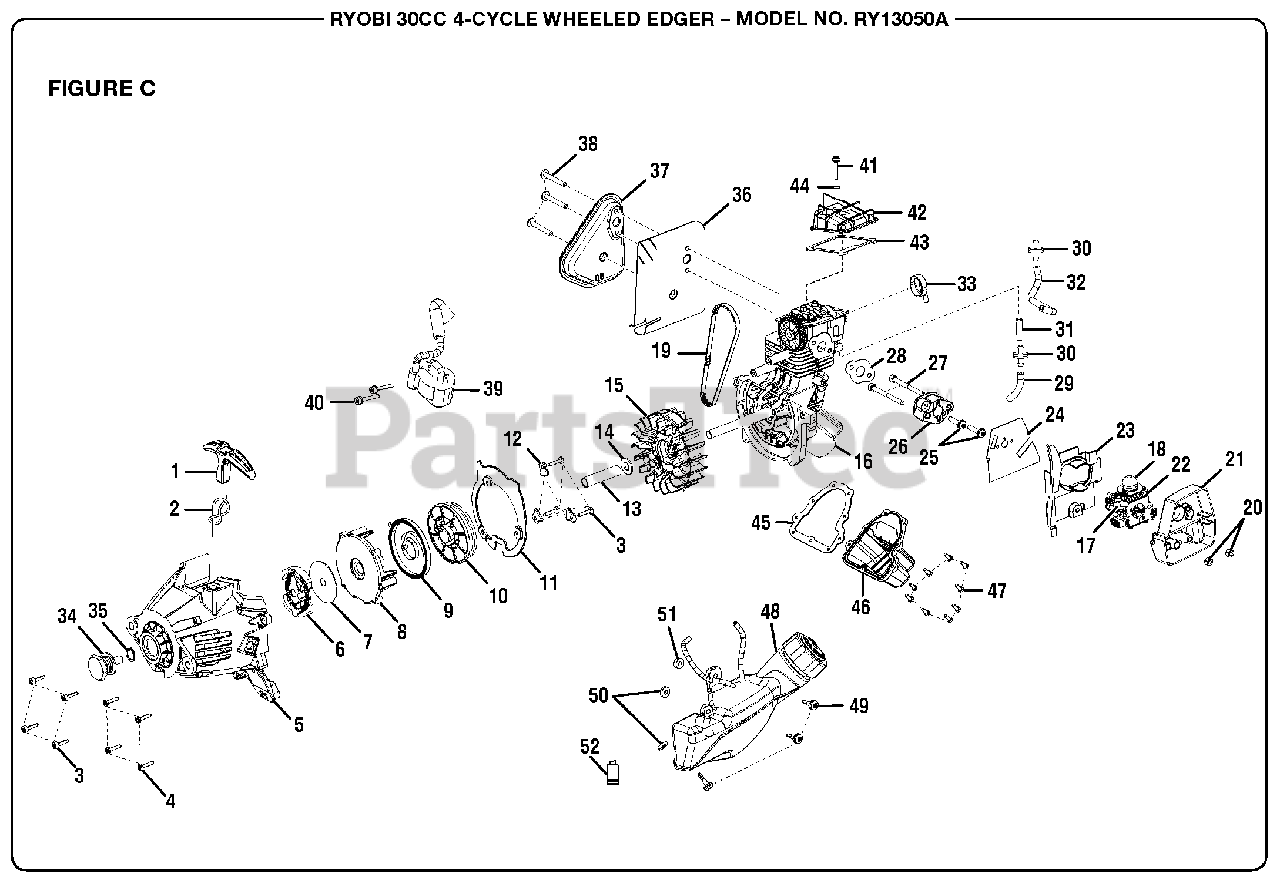

Figure C Parts Diagram

  • Title

1

Homelite 511731004

Starter Grip

$1.49

$

In Stock, Qty 7

0

2

Homelite 900849010

Starter Rope (59 in.)

$

$

Not available

3

Homelite 660466001

Screw (M4 x 18 mm, Thread Forming)

$1.49

$

In Stock, Qty 6

0

4

Homelite 660970001

Screw (M4 x 16 mm, Thread Forming)

$1.49

$

In Stock, only 1 left!

0

5

Homelite 308573002

Starter Housing Assembly (Incl. Key Nos. 34-35)

$23.99

$

Usually ships in 3-7 days

0

6

Homelite 300960002

Clutch Assembly

$6.49

$

Usually ships in 3-7 days

0

7

Homelite 638090001

Washer

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 518994001

Starter Baffle

$3.99

$

In Stock, only 2 left!

0

9

Homelite 638033001

Spring & Container

$3.49

$

In Stock, only 3 left!

0

10

Homelite 518501001

Pulley

$1.99

$

In Stock, Qty 8

0

11

Homelite 518996001

Air Dam

$1.49

$

In Stock, only 4 left!

0

12

Homelite 638389001

Pulley Retainer

$1.49

$

In Stock, only 4 left!

0

13

Homelite 638284002

Spacer Tube

$

$

Not available

14

Homelite 650017001

Washer
(Superseded to PS05268)

$1.49

$

In Stock, only 1 left!

0

15

Homelite 309011001

Flywheel Assembly

$14.99

$

Usually ships in 3-7 days

0

16

Homelite 309921013

Short Block Assembly (Incl. Key Nos. 19, 41-47)
(Superseded to 309962004)

$

$

Not available

17

Homelite 521523001

Choke Lever

$

$

Not available

18

Homelite 561635001

Primer Bulb

$4.99

$

In Stock, Qty 8

0

19

Homelite 901656002

Timing Belt

$

$

Not available

20

Homelite 678180002

Hex Nut (M5)

$

$

Not available

21

Homelite 519792003

Air Box Base

$4.49

$

Usually ships in 3-7 days

0

22

Homelite 309368003

Carburetor Assembly (Incl. Key Nos. 17-18)

$

$

Not available

23

Homelite 518692002

Air Baffle

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 900809003

Carburetor Gasket

$

$

Not available

25

Homelite 660629003

Screw (M5 x 23 mm)

$1.49

$

In Stock, only 1 left!

0

26

Homelite 518143001

Heat Dam

$

$

Not available

27

Homelite 661509001

Bolt (M5 x 58 mm)
(Superseded to 661509002)

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 901657002

Heat Dam Gasket

$1.49

$

In Stock, only 2 left!

0

29

Homelite 570710002

Breather Hose

$1.49

$

In Stock, only 4 left!

0

30

Homelite 308826002

Check Valve

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 570710003

Breather Hose

$1.49

$

In Stock, only 1 left!

0

32

Homelite 570710004

Breather Hose

$1.49

$

In Stock, Qty 7

0

33

Homelite 570401001

Breather Fitting

$2.99

$

Usually ships in 3-7 days

0

34

Homelite 678723001

Drive Pulley

$

$

Not available

35

Homelite 690698001

Snap Ring

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 901702001

Muffler Gasket
(Superseded to 901702002)

$3.49

$

Usually ships in 3-7 days

0

37

Homelite 309320002

Muffler Assembly

$7.49

$

Usually ships in 3-7 days

0

38

Homelite 661143001

Muffler Bolt (M5 x 38 mm)

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 309263004

Ignition Module

$

$

Not available

40

Homelite 660968001

Screw (M4 x 19 mm, Thread Forming)

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 660780002

Screw (M4 x 27 mm)

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 638692001

Cam Cover

$3.49

$

In Stock, only 1 left!

0

43

Homelite 901705001

Gasket

$

$

Not available

44

Homelite 570400002

O-Ring

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 570709002

Gasket

$4.49

$

Usually ships in 3-7 days

0

46

Homelite 518924002

Oil Pan

$7.49

$

Usually ships in 3-7 days

0

47

Homelite 660925003

Screw (M4 x 12 mm)

$1.49

$

Usually ships in 3-7 days

0

48

Homelite 309018001

Fuel Tank Assembly

$12.99

$

Usually ships in 3-7 days

0

49

Homelite 660970008

Screw (M4 x 22 mm)

$

$

Not available

50

Homelite 638576001

Washer

$

$

Not available

51

Homelite 901189001

Washer (Plastic)

$

$

Not available

52

Homelite 300759005

Fuel Filter

$5.99

$

Usually ships in 3-7 days

0
