RY 14122 (090079210) - Ryobi Pressure Washer Figure B Parts Diagram

Pressure Washer

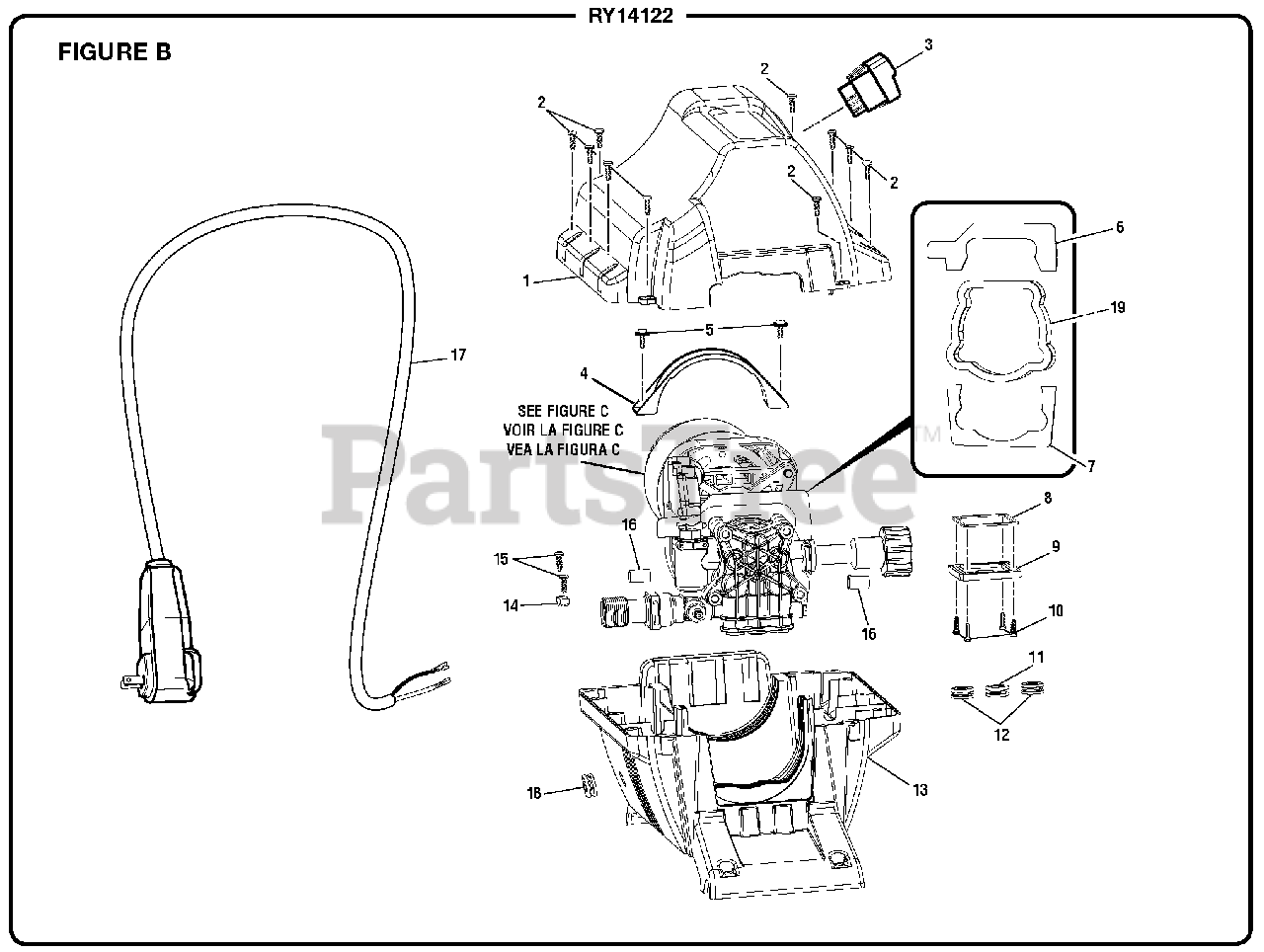

Figure B Parts Diagram

  • Title

1

Homelite 522032004

Top Motor Housing

$

$

Not available

2

Homelite 661403016

Screw (M4 x 15 mm)

$

$

Not available

3

Homelite 760504007

Switch

$6.49

$

In Stock, only 1 left!

0

4

Homelite 525893001

Motor Bracket

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 661403014

Screw (M4 x 12 mm)

$

$

Not available

6

Homelite 525894002

Upper Gasket

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 525894001

Lower Gasket

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 570740016

Switch Cover Gasket

$

$

Not available

9

Homelite 570417002

Switch Cover

$

$

Not available

10

Homelite 661403015

Screw (M3 x 14 mm)

$

$

Not available

11

Homelite 561383024

Grommet

$

$

Not available

12

Homelite 561383012

Grommet

$

$

Not available

13

Homelite 522038004

Lower Motor Housing

$14.99

$

Usually ships in 3-7 days

0

14

Homelite 522051003

Cord Clamp

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 661610008

Screw (M3.5 x 20 mm)

$

$

Not available

16

Homelite 570570002

Bushing

$

$

Not available

17

Homelite 290426012

Power Cord
(Superseded to 290426020)

$83.99

$

Usually ships in 3-7 days

0

18

Homelite 561383025

Grommet

$

$

Not available

19

Homelite 980414010

Foam Pad

$

$

Not available
