RY 14122 (090079210) - Ryobi Pressure Washer Figure C Parts Diagram

Pressure Washer

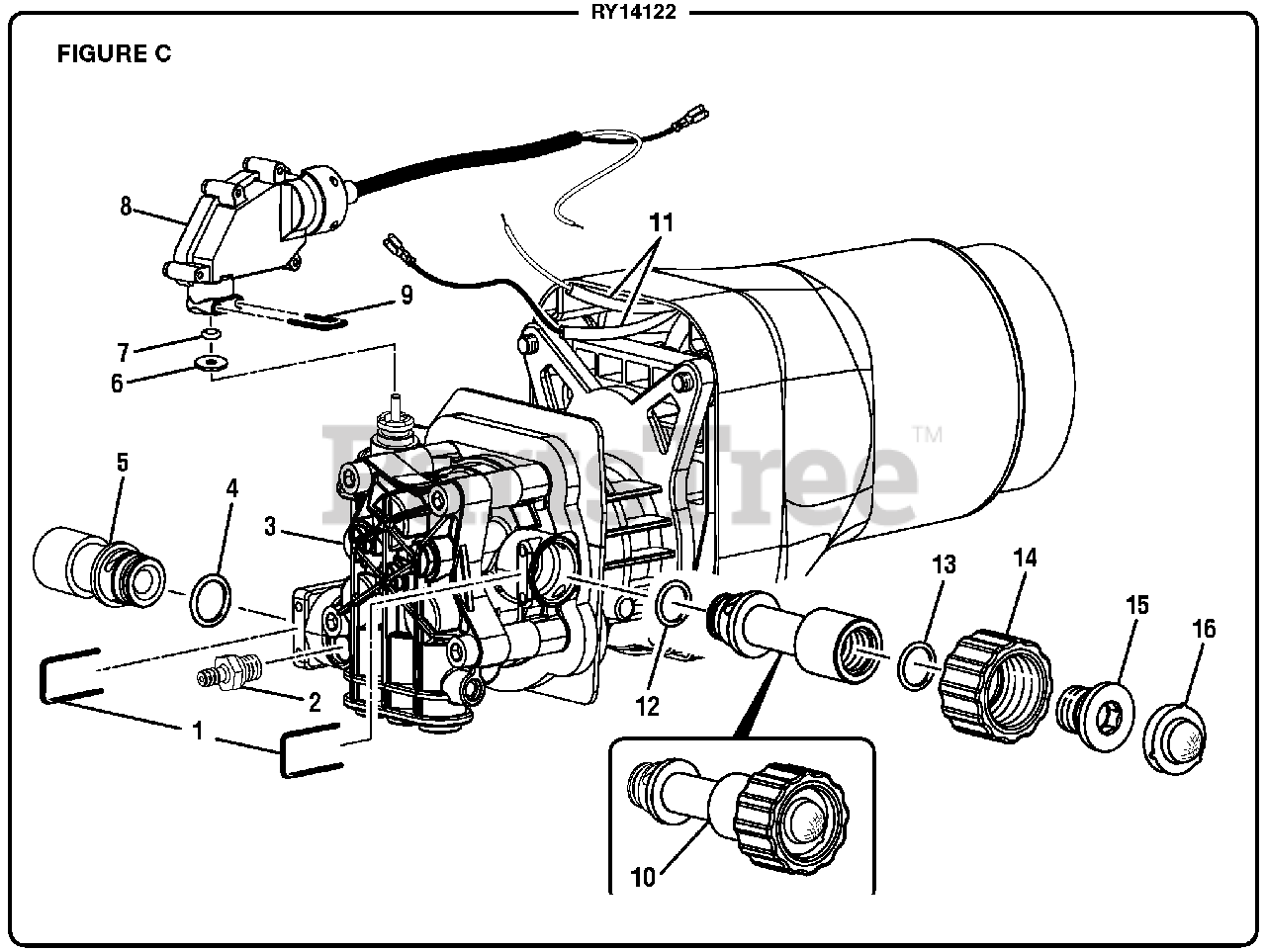

Figure C Parts Diagram

  • Title

1

Homelite 678799013

"U" Clip

$1.49

$

In Stock, Qty 5

0

2

Homelite 310868001

Detergent Nipple Assembly

$

$

Not available

3

Homelite 308833014

Motor and Pump Assembly
(Superseded to 308833019)

$

$

Not available

4

Homelite 563193001

O-Ring

$

$

Not available

5

Homelite 308862005

Outlet Tube Assembly

Note: (Inc. Key No. 4)

$5.49

$

Usually ships in 3-7 days

0

6

Homelite 638397003

Washer (Brass)

$1.49

$

In Stock, only 1 left!

0

7

Homelite 570742071

O-Ring
(Superseded to 570742086)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 310870002

Pressure Switch

$16.99

$

In Stock, only 2 left!

0

9

Homelite 678799014

"U" Clip

$

$

Not available

10

Homelite 870601001

Wire Nut

$

$

Not available

11

Homelite 570113003

Sleeve

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 563194001

O-Ring

$

$

Not available

13

Homelite 570768004

O-Ring

$

$

Not available

14

Homelite 310423002

Water Inlet Connector

$

$

Not available

15

Homelite 310422002

Water Inlet Screw Nut

$

$

Not available

16

Homelite 308103009

Water Inlet Filter

$

$

Not available

17

Homelite 308861005

Inlet Tube Assembly

Note: (Inc. Key Nos. 12-16)

$

$

Not available
