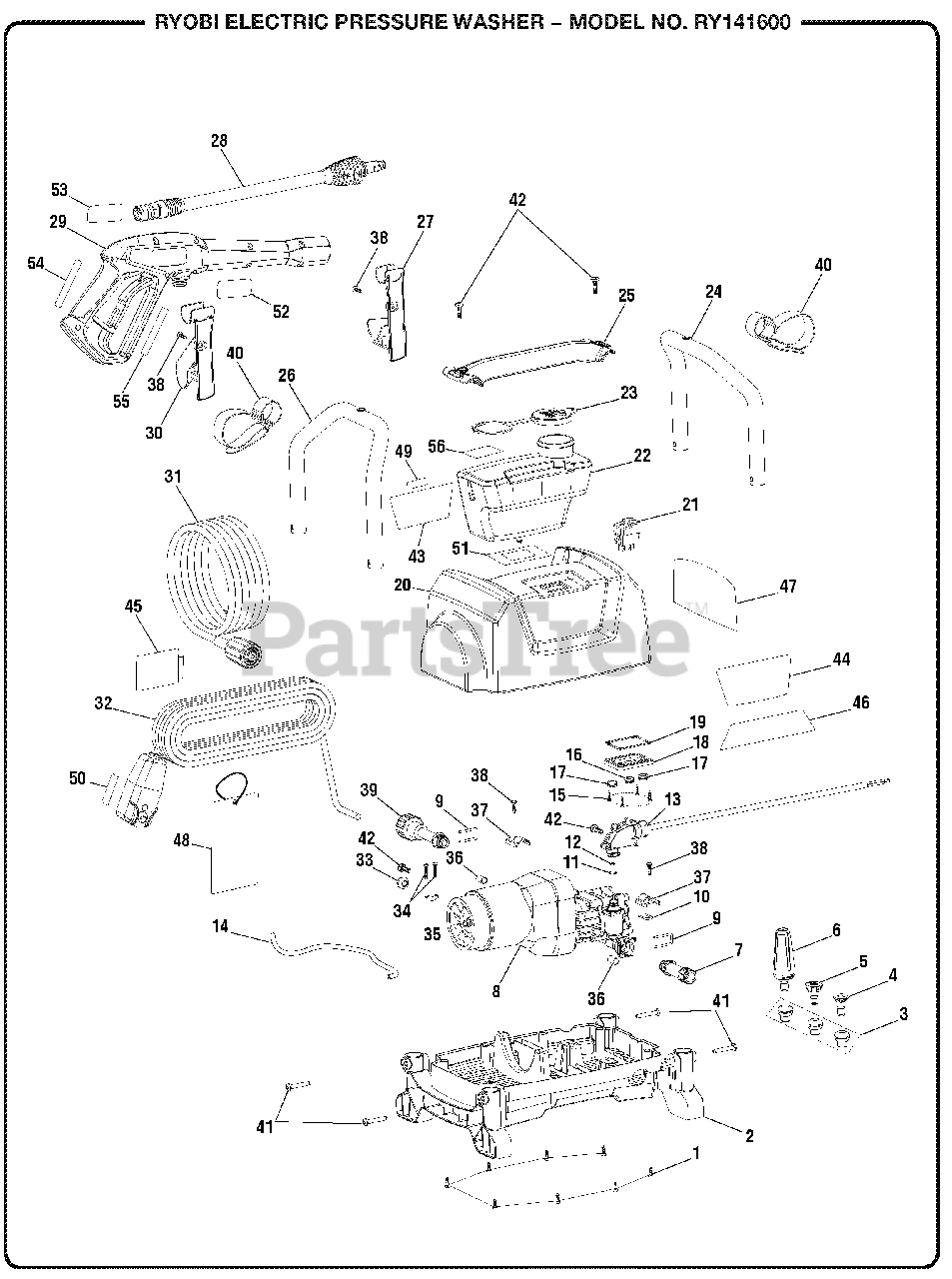

RY 141600 (090079268) - Ryobi Pressure Washer, Electric General Assembly Parts Diagram

Pressure Washer, Electric

General Assembly Parts Diagram

  • Title

1

Homelite 661403016

Screw (M4 x 15 mm)

$

$

Not available

2

Homelite 522038009

Lower Motor Housing

$14.99

$

Usually ships in 3-7 days

0

3

Homelite 561383021

Nozzle Grommet

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 308706013

Soap Nozzle

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 308698028

15deg Nozzle

$3.99

$

Usually ships in 3-7 days

0

6

Homelite 308311014

Turbo Nozzle

$

$

Not available

7

Homelite 308862007

Outlet Tube Assembly

$6.49

$

In Stock, only 3 left!

0

8

Homelite 308833014

Motor and Pump Assembly
(Superseded to 308833019)

$

$

Not available

9

Homelite 678799013

"U" Clip

$1.49

$

In Stock, Qty 5

0

10

Homelite 678799014

"U" Clip

$

$

Not available

11

Homelite 638397003

Washer (Brass)

$1.49

$

In Stock, only 1 left!

0

12

Homelite 570742071

O-Ring
(Superseded to 570742086)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 310870002

Pressure Switch

$16.99

$

In Stock, only 2 left!

0

14

Homelite 561399013

Detergent Suction Hose

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 661403015

Screw (M3 x 14 mm)

$

$

Not available

16

Homelite 561383024

Grommet

$

$

Not available

17

Homelite 561383012

Grommet

$

$

Not available

18

Homelite 570417002

Switch Cover

$

$

Not available

19

Homelite 570740016

Switch Cover Gasket

$

$

Not available

20

Homelite 522032009

Top Motor Housing

$

$

Not available

21

Homelite 760504007

Switch

$6.49

$

In Stock, only 1 left!

0

22

Homelite 310658012

Detergent Tank Assembly

$

$

Not available

23

Homelite 310650007

Detergent Tank Cap
(Superseded to 310650004)

$1.99

$

In Stock, Qty 5

0

24

Homelite 308582059

Left Frame Assembly

$

$

Not available

25

Homelite 527648003

Handle Assembly

$4.49

$

Usually ships in 3-7 days

0

26

Homelite 308582060

Right Frame Assembly

$

$

Not available

27

Homelite 519313015

Trigger Handle Holder (Left)

$

$

Not available

28

Homelite 308494065

Spray Wand
(Superseded to 308494075)

$13.99

$

Usually ships in 3-7 days

0

29

Homelite 308760040

Trigger Handle
(Superseded to 308760059)

$

$

Not available

30

Homelite 519313016

Trigger Handle Holder (Right)

$

$

Not available

31

Homelite 308835074

High Pressure Hose

$23.99

$

In Stock, only 1 left!

0

32

Homelite 290426012

Power Cord
(Superseded to 290426020)

$83.99

$

Usually ships in 3-7 days

0

33

Homelite 561383025

Grommet

$

$

Not available

34

Homelite 661610008

Screw (M35 x 20 mm)

$

$

Not available

35

Homelite 522051003

Cord Clamp

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 570570002

Bushing

$

$

Not available

37

Homelite 636204001

Motor Clamp Plate

$

$

Not available

38

Homelite 661403014

Screw (M4 x 12 mm)

$

$

Not available

39

Homelite 308861006

Inlet Tube Assembly

$

$

Not available

40

Homelite 310801007

Hose Storage Strap

$

$

Not available

41

Homelite 660590004

Bolt (M6 x 35 mm)

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 660481019

Bolt (M6 x 20 mm)

$1.49

$

In Stock, Qty 5

0

43

Homelite 940617145

Quick Start Label

$

$

Not available

44

Homelite 940705264

Ryobi Logo Label

$

$

Not available

45

Homelite 940324013

Cord Wrap Label

$1.49

$

Usually ships in 3-7 days

0

46

Homelite 940779141

Performance Label

$

$

Not available

47

Homelite 940707038

Danger Label

$

$

Not available

48

Homelite 940473008

Warning Hangtag

$1.49

$

Usually ships in 3-7 days

0

49

Homelite 941486008

Inquires Label

$1.49

$

Usually ships in 3-7 days

0

50

Homelite 940603006

Cord Plug Label

$

$

Not available

51

Homelite 940698033

On/Off Switch Label

$1.49

$

Usually ships in 3-7 days

0

52

Homelite 940786027

Trigger Handle Label

$

$

Not available

53

Homelite 940324030

Trigger Handle Warning Label (English)

$

$

Not available

54

Homelite 940324024

Trigger Handle Warning Label (French/Spanish)
(Superseded to 940654228)

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 940904003

Trigger Handle Rating Label

$

$

Not available

56

Homelite 941608005

Detergent Tank Label

$1.49

$

Usually ships in 3-7 days

0

Homelite 991000342

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 991000343

Quick Reference Guide

Note: Not Shown

$

$

Not available
