RY 141800 (090079329) - Ryobi Pressure Washer, Rev 01 (2018-04) Figure B Parts Diagram

Pressure Washer, Rev 01

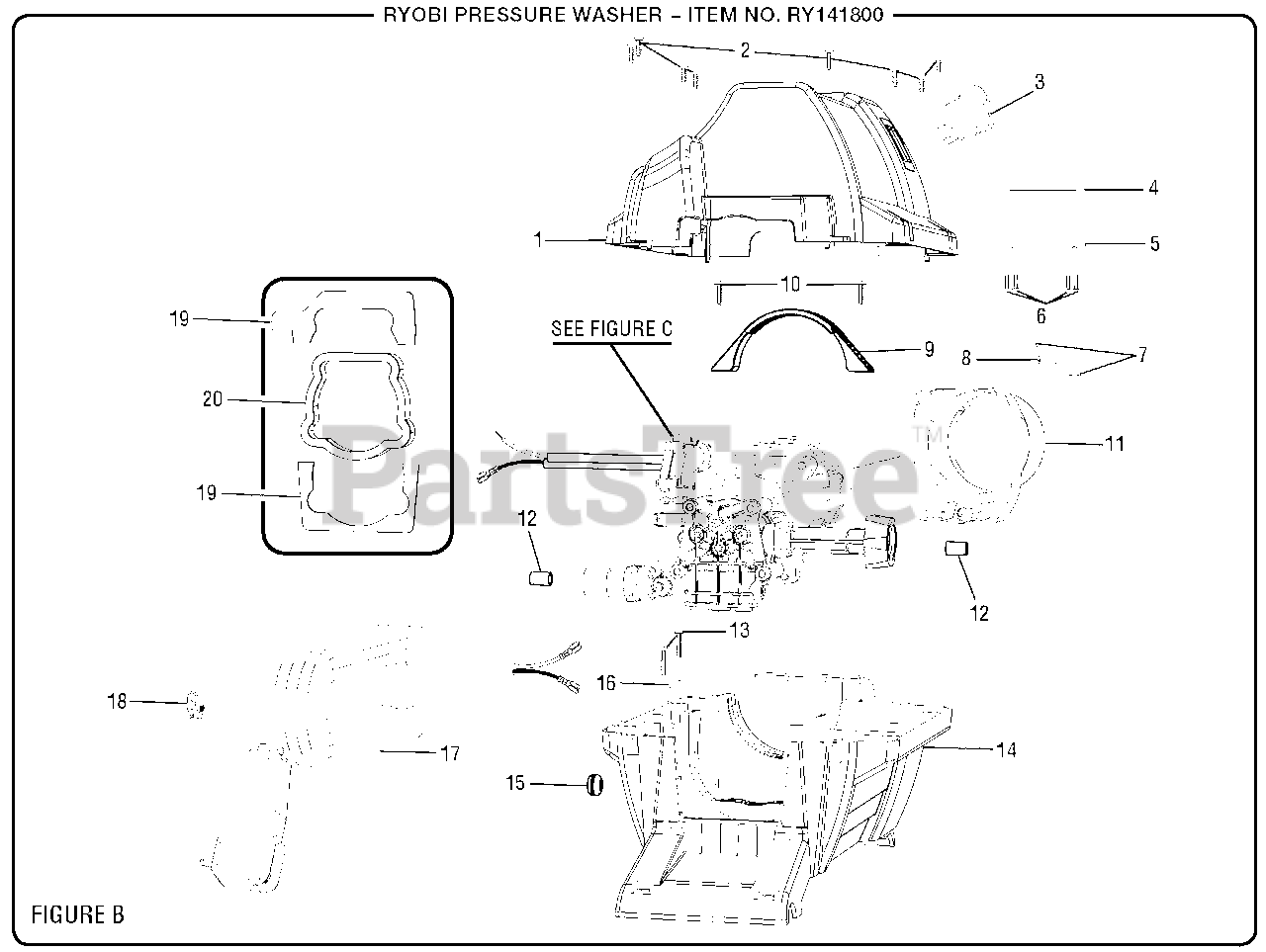

Figure B Parts Diagram

  • Title

1

Homelite 522032004

Top Motor Housing

$

$

Not available

2

Homelite 661403016

Screw (M4 x 15 mm. Pan Hd.)

$

$

Not available

3

Homelite 760504007

Switch

$6.49

$

In Stock, only 1 left!

0

4

Homelite 570740016

Switch Cover Gasket

$

$

Not available

5

Homelite 570417002

Switch Cover

$

$

Not available

6

Homelite 661403015

Screw (M2.9 x 14 mm, Pan Hd.)

$

$

Not available

7

Homelite 561383012

Grommet

$

$

Not available

8

Homelite 561383024

Grommet

$

$

Not available

9

Homelite 525893001

Motor Bracket

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 661403014

Screw w/Washer (M4 x 12 mm, Pan Hd.)

$

$

Not available

11

Homelite 522038007

Air Shroud

$3.99

$

Usually ships in 3-7 days

0

12

Homelite 570570002

Bushing

$

$

Not available

13

Homelite 661610008

Screw (M3.5 x 20 mm, Pan Hd.)

$

$

Not available

14

Homelite 522038004

Lower Motor Housing

$14.99

$

Usually ships in 3-7 days

0

15

Homelite 561383025

Grommet

$

$

Not available

16

Homelite 522051003

Cord Clamp

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 290426022

Power Cord

$

$

Not available

18

Homelite 528499001

Electric Cord Clip

$

$

Not available

19

Homelite 310866007

Upper and Lower Gasket Assembly

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 980414010

Foam Pad

$

$

Not available
