RY 141900 (090079269) - Ryobi Pressure Washer Figure A Parts Diagram

Pressure Washer

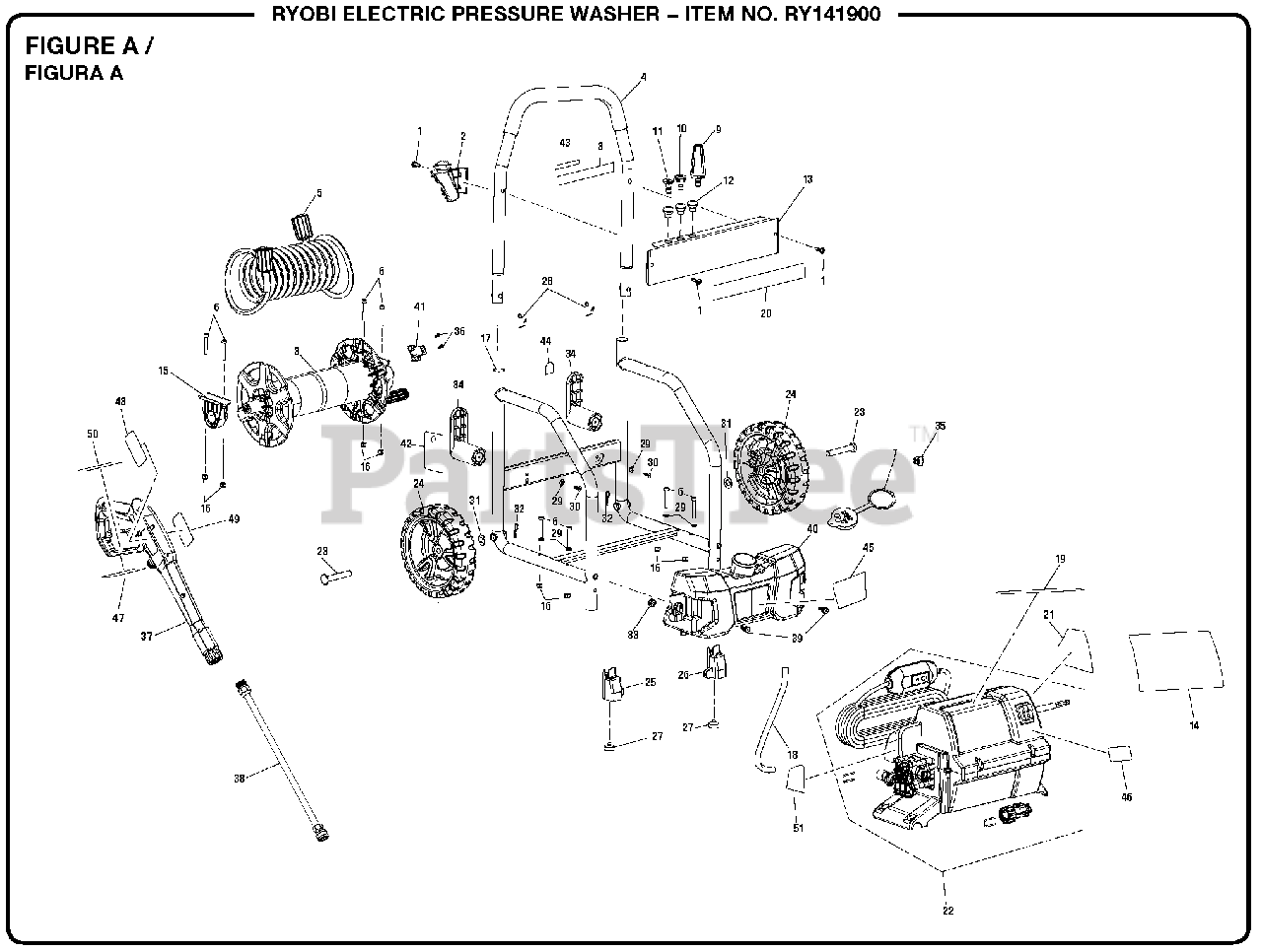

Figure A Parts Diagram

  • Title

1

Homelite 660481019

Bolt (M6 x 20 mm)

$1.49

$

In Stock, Qty 5

0

2

Homelite 519313010

Trigger Handle Holder

$1.49

$

In Stock, Qty 6

0

3

Homelite 309008004

Hose Reel Assembly

$20.99

$

Usually ships in 3-7 days

0

4

Homelite 310224071

Handle Assembly

Note: (Inc. Key No. 28)

$18.99

$

In Stock, only 1 left!

0

5

Homelite 308835065

High Pressure Hose

$27.99

$

In Stock, only 1 left!

0

6

Homelite 660481015

Screw (M6 x 40 mm)

$

$

Not available

7

Homelite 310650007

Detergent Tank Cap
(Superseded to 310650004)

$1.99

$

In Stock, Qty 5

0

8

Homelite 940617119

Quick Start Label

$

$

Not available

9

Homelite 308311014

Turbo Nozzle

$

$

Not available

10

Homelite 308706013

Soap Nozzle

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 308698023

15° Nozzle

$

$

Not available

12

Homelite 561383021

Nozzle Grommet

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 678973008

Performance Panel

$4.49

$

Usually ships in 3-7 days

0

14

Homelite 940705265

Logo Label

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 522941003

Hose Reel Bracket

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 678460001

Lock Nut (M6)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 308582061

Main Frame

$

$

Not available

18

Homelite 561399014

Injection Hose

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 940786041

Nozzle Select Label

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 940779142

Performance Label

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 940707039

Danger Label

$

$

Not available

22

Pump Housing Assembly

$

$

Not available

23

Homelite 620599018

Wheel Axle

$

$

Not available

24

Homelite 308451054

Wheel

$

$

Not available

25

Homelite 523406004

Foot (Left)

$

$

Not available

26

Homelite 523406005

Foot (Right)

$

$

Not available

27

Homelite 570554017

Foot Pad

$1.49

$

In Stock, Qty 5

0

28

Homelite 308421002

Spring Clip w/Button

$

$

Not available

29

Homelite 678600010

Washer (M6)

$

$

Not available

30

Homelite 661403019

Screw (M4.8 x 19 mm, Phillips Hd. S.T.)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 678889003

Washer (ID125 x OD24 x 2t)

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 678238002

Hitch Pin
(Superseded to 678238004)

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 561383028

Soap Tank Grommet

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 522037003

Cord Wrap Arm

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 522051003

Cord Clamp

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 661403016

Screw (M4.2 x 15 mm, Phillips Hd. S.T.)

$

$

Not available

37

Homelite 308760053

Trigger Handle
(Superseded to 308760071)

$39.99

$

Usually ships in 3-7 days

0

38

Homelite 308494074

Spray Wand
(Superseded to 308494077)

$17.99

$

Usually ships in 3-7 days

0

39

Homelite 660481022

Shoulder Bolt (M6 x 16 mm)

$1.49

$

Usually ships in 3-7 days

0

40

Homelite 580875016

Detergent Tank

$10.99

$

Usually ships in 3-7 days

0

41

Homelite 529062001

Hose Clip

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 940473023

Warning Hangtag

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 941486008

Inquires Label

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 941076001

Cord Unlock Label

$

$

Not available

45

Homelite 941608007

Detergent Tank Label

$1.49

$

Usually ships in 3-7 days

0

46

Homelite 940734079

On/Off Switch Label

$

$

Not available

47

Homelite 940904003

Trigger Handle Rating Label

$

$

Not available

48

Homelite 940786027

Trigger Handle Logo Label

$

$

Not available

49

Homelite 940324030

Trigger Handle Warning Label (English)

$

$

Not available

50

Homelite 940324024

Trigger Handle Warning Label (French/Spanish)
(Superseded to 940654228)

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 941002168

Pump Label

$1.49

$

Usually ships in 3-7 days

0

Homelite 991000317

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 991000318

Quick Reference Guide

$

$

Not available
