RY 15123 - Ryobi String Trimmer Powerhead

String Trimmer Powerhead

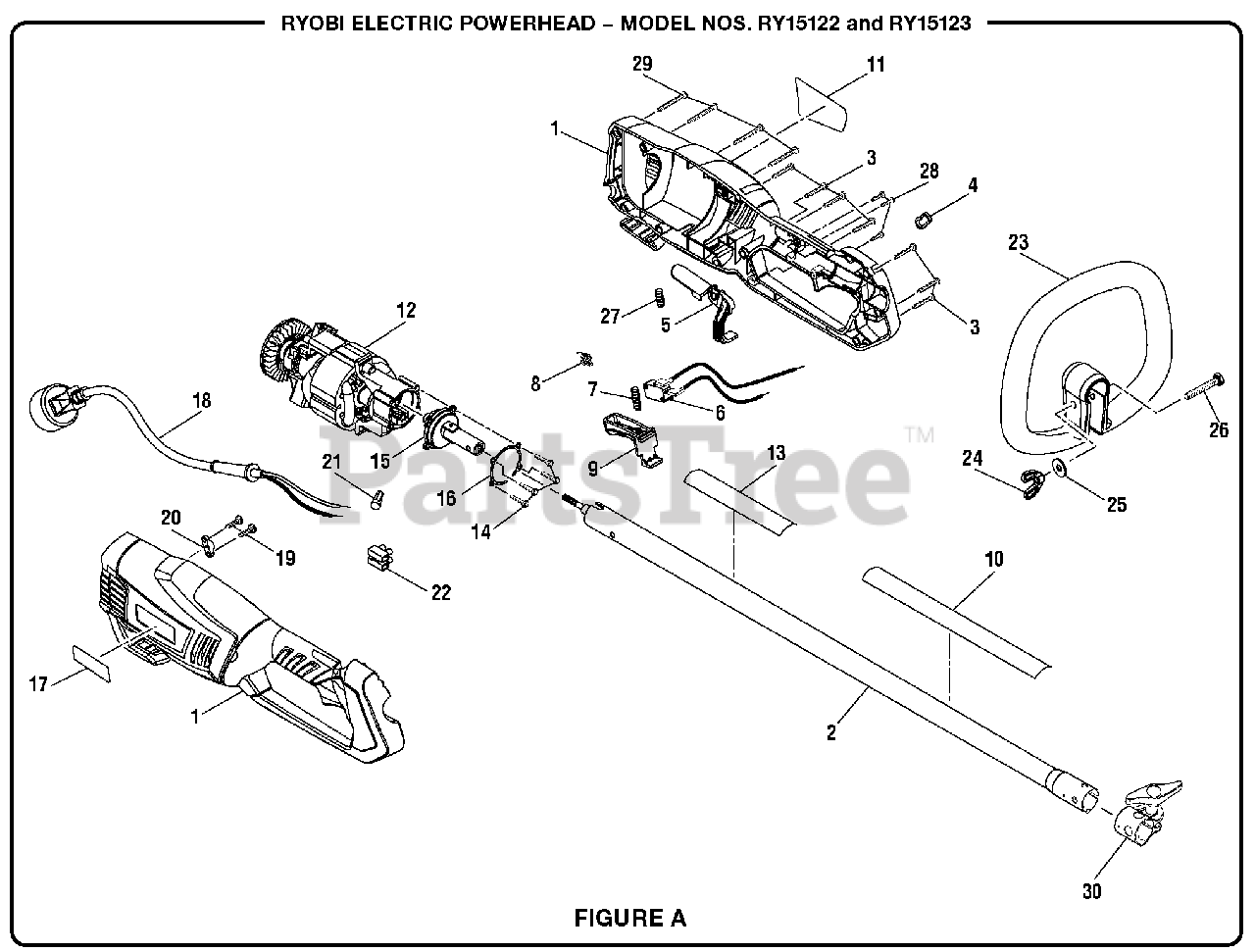

RY 15123 - Ryobi String Trimmer Powerhead > Parts Diagrams (1) > General Assembly

  • Title
31301511G

1

Housing Assembly

Part# 31301511G

Note: (RY15122)

OEM Warranty Repair Part for Homelite

Not available

31301511AG

Housing Assembly

Part# 31301511AG (Superseded to 31301511G)

Note: (RY15123)

OEM Warranty Repair Part for Homelite

Not available

31107511G

2

Boom Assembly

Part# 31107511G

Note: (RY15122)

OEM Warranty Repair Part for Homelite

Not available

31107511AG

Boom Assembly

Part# 31107511AG

Note: (RY15123)

OEM Warranty Repair Part for Homelite

Not available

3220313G

3

Screw (M4 x 14 mm)

Part# 3220313G

OEM Warranty Repair Part for Homelite

Not available

33301511G

4

Strap Hook

Part# 33301511G

OEM Warranty Repair Part for Homelite

Not available

34101511G

5

Lock-Out Lever

Part# 34101511G

Note: (RY15122)

OEM Warranty Repair Part for Homelite

Not available

34101511AG

Lock-Out Lever

Part# 34101511AG

Note: (RY15123)

OEM Warranty Repair Part for Homelite

Not available

31109511G

6

Switch Assembly w/Leads

Part# 31109511G

OEM Warranty Repair Part for Homelite

Usually leaves our warehouse in 1 business day

Your price: $2.85

33904511G

7

Compression Spring

Part# 33904511G

OEM Warranty Repair Part for Homelite

Not available

33901511G

8

Torsion Spring

Part# 33901511G

OEM Warranty Repair Part for Homelite

Not available

34102511G

9

Switch Trigger

Part# 34102511G

Note: (RY15122)

OEM Warranty Repair Part for Homelite

Not available

34102511AG

Switch Trigger

Part# 34102511AG

Note: (RY15123)

OEM Warranty Repair Part for Homelite

Not available

099919001902

10

Warning Label (French)

Part# 099919001902

OEM Warranty Repair Part for Homelite

Not available

099919001901

11

Data Label/Warning Label (English and Spanish,

Part# 099919001901

Note: (RY15122)

OEM Warranty Repair Part for Homelite

Not available

099919002900

Data Label/Warning Label (English and Spanish,

Part# 099919002900

Note: (RY15123)

OEM Warranty Repair Part for Homelite

Not available

36101511G

12

Motor Assembly

Part# 36101511G

OEM Warranty Repair Part for Homelite

Not available

099919001900

13

Icon Strip Label

Part# 099919001900

OEM Warranty Repair Part for Homelite

Not available

3220205G

14

Screw (M4 x 10 mm)

Part# 3220205G

OEM Warranty Repair Part for Homelite

Not available

31105511G

15

Gear Assembly

Part# 31105511G

OEM Warranty Repair Part for Homelite

Not available

34201511G

16

Rubber Gasket

Part# 34201511G

OEM Warranty Repair Part for Homelite

Not available

099627001003

17

Logo Label

Part# 099627001003

OEM Warranty Repair Part for Homelite

Not available

31102511G

18

Power Cord Assembly

Part# 31102511G

OEM Warranty Repair Part for Homelite

Not available

3220345G

19

Screw (M3.5 x 12 mm)

Part# 3220345G

OEM Warranty Repair Part for Homelite

Not available

3410801G

20

Cord Clamp

Part# 3410801G

OEM Warranty Repair Part for Homelite

Not available

36504161G

21

Wire Nut

Part# 36504161G

OEM Warranty Repair Part for Homelite

Not available

36404167G

22

Terminal Block

Part# 36404167G

OEM Warranty Repair Part for Homelite

Not available

308991001

23

Front Handle Assembly (Inc. Key Nos. 24-26)

Part# 308991001

OEM Warranty Repair Part for Homelite

Usually leaves our warehouse in 1 business day

Your price: $12.33

34104511G

24

Wing Nut (1/4-20)

Part# 34104511G

OEM Warranty Repair Part for Homelite

Usually leaves our warehouse in 1 business day

Your price: $0.97

678008001

25

Washer (1/4 in.)

Part# 678008001

OEM Warranty Repair Part for Homelite

Usually leaves our warehouse in 1 business day

Your price: $1.22

660643008

26

Bolt (1/4-20 x 40 mm)

Part# 660643008

OEM Warranty Repair Part for Homelite

Usually leaves our warehouse in 1 business day

Your price: $0.97

33902511G

27

Compression Spring

Part# 33902511G

OEM Warranty Repair Part for Homelite

Not available

32202301G

28

Screw (M2.9 x 10 mm)

Part# 32202301G

OEM Warranty Repair Part for Homelite

Not available

3220106G

29

Screw (M4 x 18 mm)

Part# 3220106G

OEM Warranty Repair Part for Homelite

Not available

UP03839A

30

Boom Clamp Assembly

Part# UP03839A

Note: (RY15122)

OEM Warranty Repair Part for Homelite

Not available

34108511AG

Boom Clamp Assembly

Part# 34108511AG

Note: (RY15123)

OEM Warranty Repair Part for Homelite

Not available

988000309

Operator's Manual

Part# 988000309

Note: (Not Shown)

OEM Warranty Repair Part for Homelite

Not available
