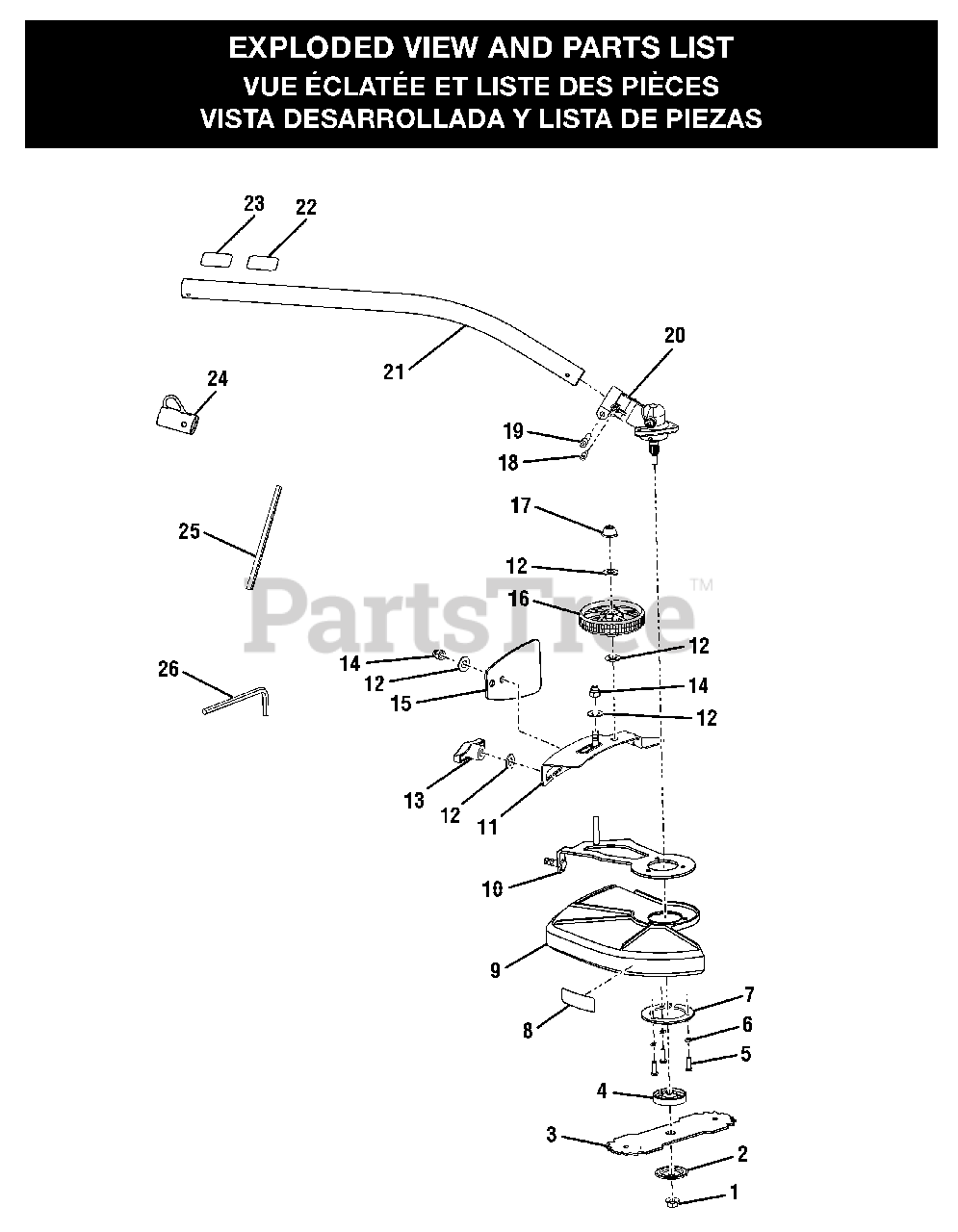

RY 15518 - Ryobi Expand-It Edger Attachment General Assembly Parts Diagram

Expand-It Edger Attachment

General Assembly Parts Diagram

  • Title

1

Homelite 678018001

Blade Nut (M8, LH)
(Superseded to 04277)

$

$

Not available

2

Homelite 638017001

Cupped Washer
(Superseded to 04409)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 638006008

Blade

$

$

Not available

4

Homelite 678011004

Flange Washer
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

5

Homelite 660887001

Screw (10-24 x 5/8 in. Hex Hd.)
(Superseded to 099078001007)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 678263001

Lock Washer (5 mm)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 678262001

Ring Washer
(Superseded to 099078001009)

$

$

Not available

8

Homelite 940657011

Warning Decal

$

$

Not available

9

Homelite 120530004

Blade Guard

Note: (Includes Key No. 8)

$

$

Not available

10

Homelite 310515001

Main Frame

$

$

Not available

11

Homelite 310516001

Wheel Frame

$5.99

$

Usually ships in 3-7 days

0

12

Homelite 678258001

Washer (10 mm)
(Superseded to 099078001019)

$

$

Not available

13

Homelite 308730002

Adjusting Knob with Hex Nut

$

$

Not available

14

Homelite 678259001

Hex Nut with Nylon Cap (5/16-18)
(Superseded to 099078001021)

Note: Purchase locally

$

$

Not available

15

Homelite 561382002

Debris Flap

$1.99

$

In Stock, only 1 left!

0

16

Homelite 518665001

Guide Wheel

$4.99

$

Usually ships in 3-7 days

0

17

Homelite 308483001

Push Nut (10 mm)
(Superseded to 099078001028)

Note: Purchase locally

$1.49

$

In Stock, only 3 left!

0

18

Homelite 660641002

Screw (10-24 x 5/8 in. Hex Socket Hd.)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 660642002

Screw (1/4-20 x 1-1/4 in., Hex. Socket Hd.)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 308210001

Gear Head Assembly
(Superseded to 308210008)

$34.99

$

Usually ships in 3-7 days

0

21

Homelite 120530003

Drive Shaft Assembly

Note: (Inc. key Nos. 22 and 23)

$

$

Not available

22

Homelite 940726013

Label, Logo

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 940654070

Warning Label

$

$

Not available

24

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, only 2 left!

0

25

Homelite 678020001

Holding Pin
(Superseded to 099078001040)

$1.49

$

In Stock, only 4 left!

0

26

Homelite 638015003

Hex Wrench

$1.49

$

Usually ships in 3-7 days

0

Homelite 987000377

Operator's Manual

$

$

Currently unavailable
