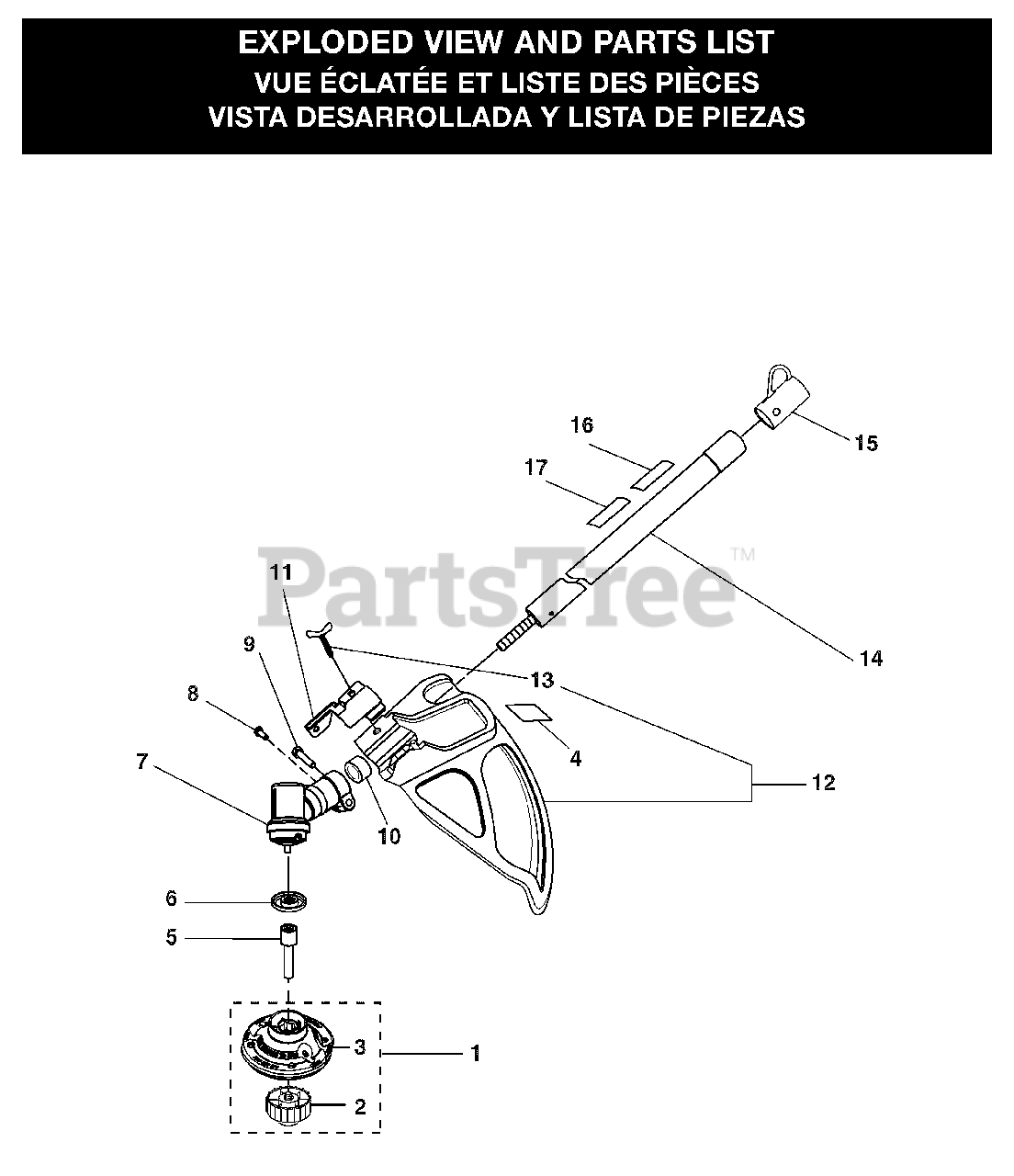

RY 15522 - Ryobi Expand-It Straight Shaft Trimmer Attachment General Assembly Parts Diagram

Expand-It Straight Shaft Trimmer Attachment

General Assembly Parts Diagram

  • Title

1

Homelite 120950011

Pro Cut II String Head Assembly

Note: (inc. key nos. 2-3)

$

$

Not available

2

Homelite 308042003

Spool Retainer Assembly

Note: (L.H. Thread)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 308925001

Pro Cut II String Head

$

$

Not available

4

Homelite 940705024

Logo Label

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 678019002

String Head Adapter

$2.49

$

In Stock, only 3 left!

0

6

Homelite 678011002

Flanged Washer

$

$

Not available

7

Homelite 308210002

Gear Case Assembly
(Superseded to 308210009)

$28.99

$

Usually ships in 3-7 days

0

8

Homelite 660736001

Screw (#10-24 x 5/8 in., Hex Washer Hd.)
(Superseded to 983774003)

Note: Purchase locally

$1.49

$

In Stock, only 1 left!

0

9

Homelite 660642001

Screw (1/4-20 x 1-1/4 in.)
(Superseded to 983381007)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 518367001

Spacer

$1.49

$

In Stock, Qty 5

0

11

Homelite 638125001

Clamp
(Superseded to PS04420)

$2.99

$

In Stock, only 2 left!

0

12

Homelite 308473001

Grass Deflector Assembly

Note: (includes key no. 13)

$

$

Not available

13

Homelite 660886001

Winged Head Screw (1/4-20 x 3/4-in.)

$1.49

$

In Stock, only 3 left!

0

14

Homelite 120530005

Boom Assembly

Note: (includes key no. 16-17)

$

$

Not available

15

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, only 2 left!

0

16

Homelite 940657032

Warning Label
(Superseded to 940657165)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 940726013

Logo Label

$1.49

$

Usually ships in 3-7 days

0

Homelite 987000380

Operator's Manual

$

$

Currently unavailable
