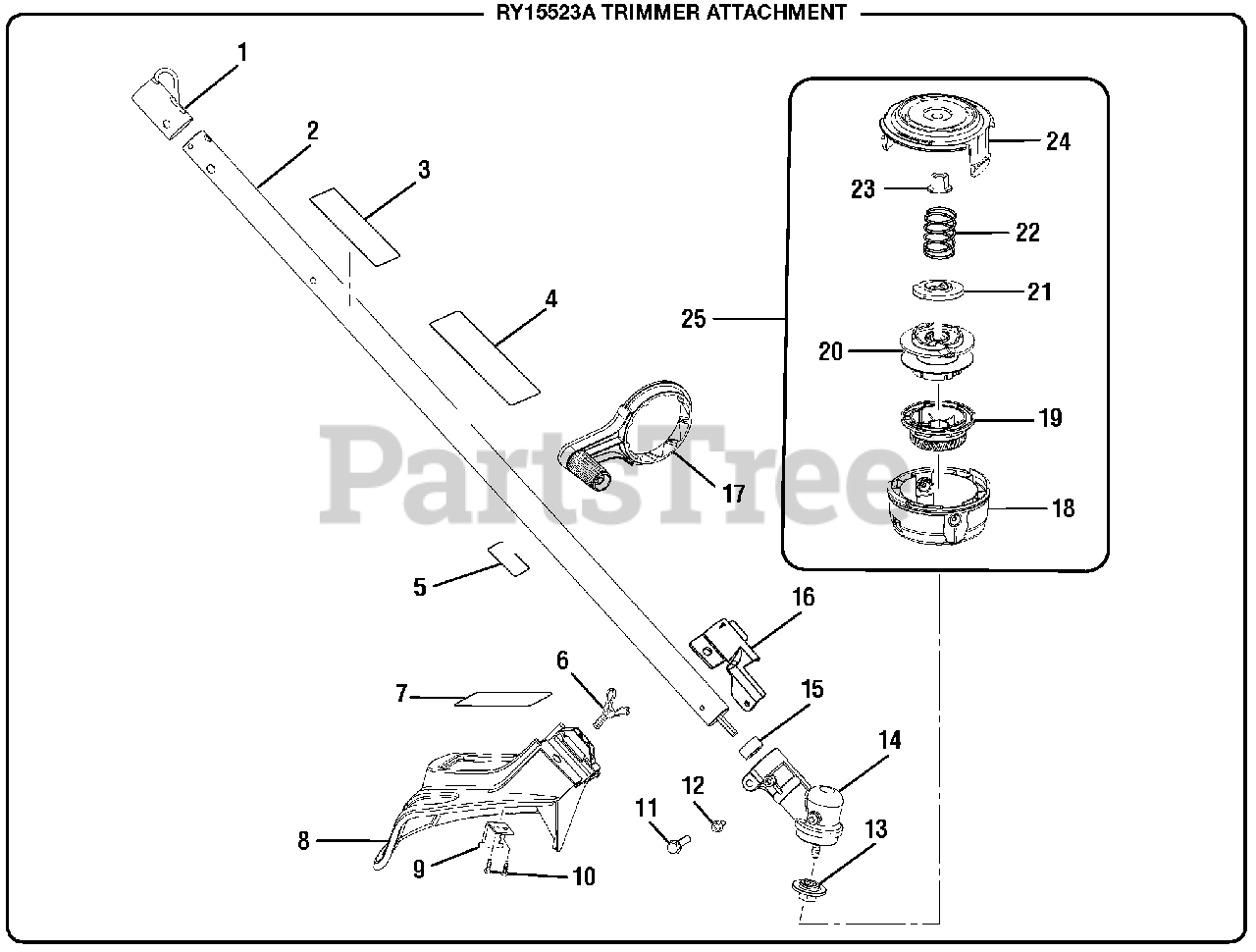

RY 15523 A (313351003) - Ryobi Trimmer Attachment, Rev 05 (2018-12) General Assembly Parts Diagram

Trimmer Attachment, Rev 05

General Assembly Parts Diagram

  • Title

1

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

2

Homelite 314383001

Straight Shaft Assembly

Note: (Inc. Key Nos. 3-5)

$16.99

$

Usually ships in 3-7 days

0

3

Homelite 940749005

Warning Icon Label

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 941851149

Ryobi EXPAND-IT Label

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 941588053

Data Label

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 660886001

Wing Screw (1/4-20 x 3/4 in.)

$1.49

$

In Stock, Qty 5

0

7

Homelite 940705021

Logo Label

$

$

Not available

8

Homelite 313285004

Grass Deflector Assembly

Note: (Inc. Key Nos. 6-7 & 9-10)

$6.99

$

Usually ships in 3-7 days

0

9

Homelite 638016003

Line Cut-off Blade

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 662148001

Screw

$1.49

$

In Stock, Qty 6

0

11

Homelite 660642001

Screw (1/4-20 x 1-1/4 in.)
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 660641001

Screw (10-24 x 5/8 in.)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 678011001

FLANGED WASHER
(Superseded to 099078001005)

$6.49

$

In Stock, only 1 left!

0

14

Homelite 308210009

Gear Head

$28.99

$

Usually ships in 3-7 days

0

15

Homelite 518367001

Spacer

$1.49

$

In Stock, Qty 5

0

16

Homelite 638125001

Grass Deflector Clamp
(Superseded to PS04420)

$2.99

$

In Stock, only 2 left!

0

17

Homelite 312283001

Crank Handle Assembly

$1.99

$

In Stock, Qty 5

0

18

Homelite 530366001

Lower Housing

$4.99

$

In Stock, only 1 left!

0

19

Homelite 530455002

Bump Knob (Green)

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 530670001

Spool Assembly

$1.99

$

In Stock, only 3 left!

0

21

Homelite 529803001

String Guide

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 678749001

Spring

$1.49

$

In Stock, Qty 7

0

23

Homelite 662568002

Hex Flange Nut (M8, Left Hand)

$1.49

$

In Stock, only 4 left!

0

24

Homelite 530001004

Upper Housing

$2.49

$

In Stock, only 3 left!

0

25

Homelite 313318001

Stringhead Reel Assembly

Note: (Inc. Key Nos. 18-24)

$13.99

$

In Stock, only 1 left!

0

Homelite 990000799

Operator's Manual

$

$

Not available
