RY 15529 VNM (317022001) - Ryobi Expand-It Straight Shaft Trimmer Attachment, Rev 04 (2022-07) General Assembly Parts Diagram

Expand-It Straight Shaft Trimmer Attachment, Rev 04

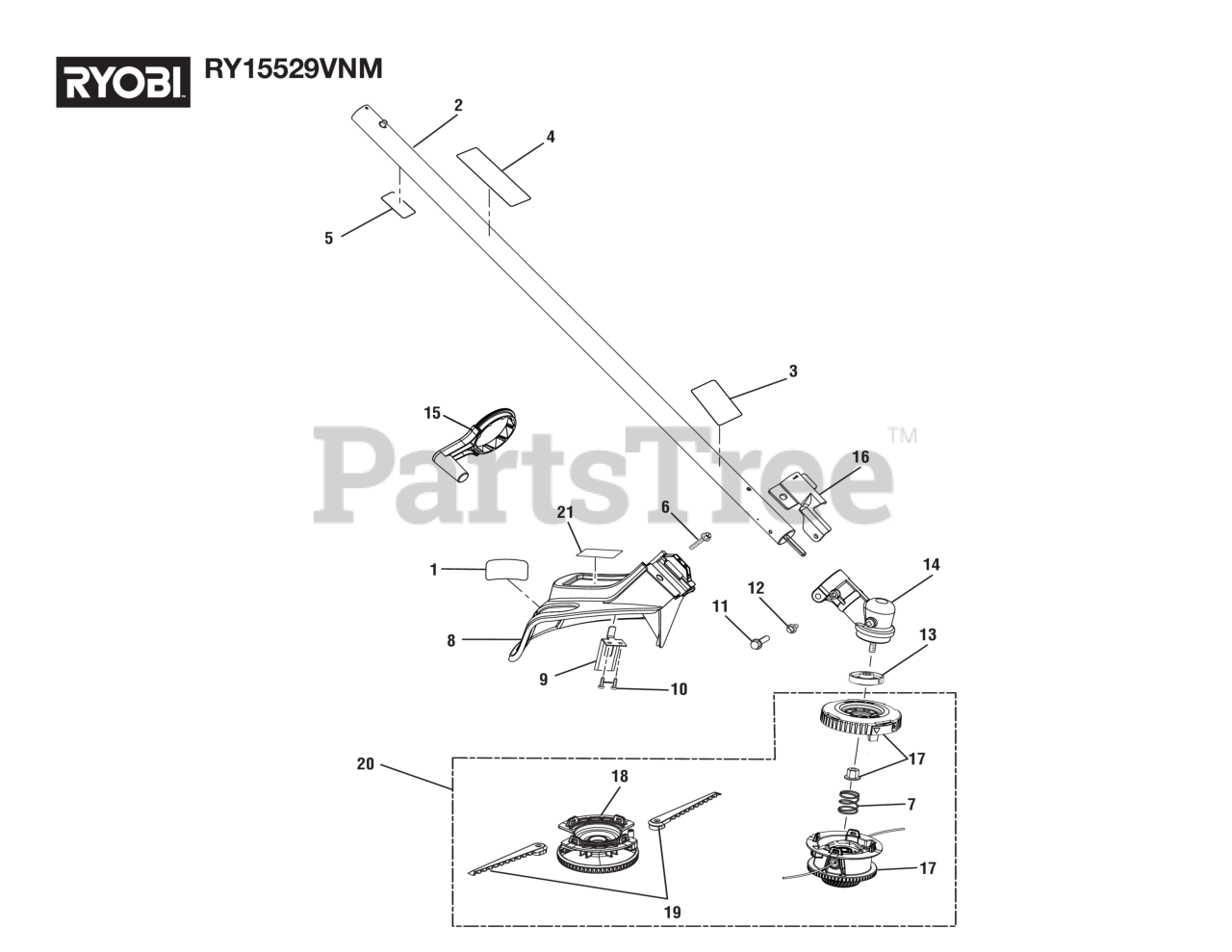

General Assembly Parts Diagram

  • Title

1

Homelite 941588552

Max. Run Time/Performance Label

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 317303002

Straight Shaft Assembly (Inc. Key Nos. 3-5)

$181.99

$

Usually ships in 3-7 days

0

3

Homelite 940749034

Icon Warning Label

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 941588832

Carbon Fiber Label

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 941588816

Data Label

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 660738002

SCREW (#1/4-20 X 1-1/4 in. HEX WASHER HD.)
(Superseded to 983379078)

$

$

Not available

7

Homelite 679958001

Compression Spring

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 317302001

Grass Deflector Assembly

$24.99

$

In Stock, only 1 left!

0

9

Homelite 638016003

Line Cut-off Blade

$3.99

$

In Stock, Qty 14

0

10

Homelite 662148001

Screw

$2.49

$

In Stock, only 3 left!

0

11

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Washer Hd. S.T.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

12

Homelite 660641001

Screw w/Washer (10-24 x 5/8 in., Hex Hd. T.F.)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 678011001

FLANGED WASHER
(Superseded to 099078001005)

$12.99

$

Usually ships in 3-7 days

0

14

Homelite 308210020

Gear Head Assembly

$

$

Currently unavailable

15

Homelite 532048003

Crank Handle

$2.49

$

In Stock, only 3 left!

0

16

Homelite 638125001

GRASS DEFLECTOR CLAMP
(Superseded to PS04420)

$5.49

$

In Stock, only 2 left!

0

17

Homelite 314608005

Bump Feed Trimmer Head Assembly (Inc. Key No. 21)

$63.99

$

In Stock, only 2 left!

0

18

Homelite 314795002

Fixed Line and Blade Housing Assembly

$28.99

$

Usually ships in 3-7 days

0

19

Homelite 537603002

Flail Blade

$2.49

$

In Stock, Qty 8

0

20

Homelite 315614001

Stringhead Reel Assembly

$88.99

$

Usually ships in 3-7 days

0

21

Homelite 940851674

Guard Logo Label

$2.49

$

Usually ships in 3-7 days

0

Homelite 995000976

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
