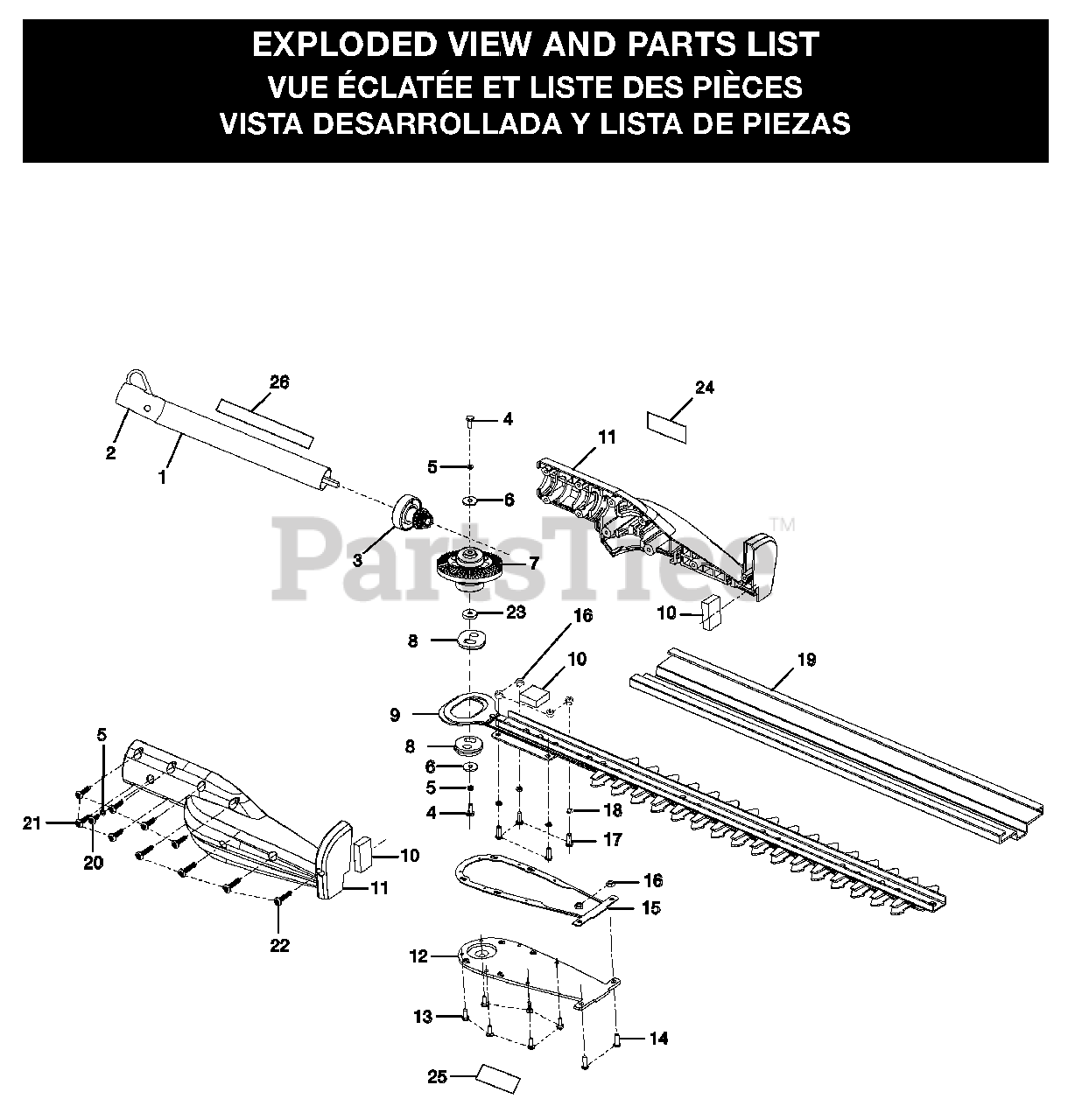

RY 15703 - Ryobi Expand-It Hedge Trimmer Attachment General Assembly Parts Diagram

Expand-It Hedge Trimmer Attachment

General Assembly Parts Diagram

  • Title

1

Homelite 120530010

Lower Drive Shaft Assembly

Note: (Inc. Key No. 26)

$24.99

$

Usually ships in 3-7 days

0

2

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, only 2 left!

0

3

Homelite 308898001

Pinion Assembly
(Superseded to 308894002)

$29.99

$

Usually ships in 3-7 days

0

4

Homelite 660927001

Screw (M5 x 10 mm)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 678343001

Spring Washer (M5)
(Superseded to 099069001005)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 678341001

Washer (M5)
(Superseded to 099069001006)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 308897001

Output Gear Assembly
(Superseded to 308894002)

$29.99

$

Usually ships in 3-7 days

0

8

Homelite 678350001

Cam

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 308548001

Blade Assembly

$

$

Not available

10

Homelite 901382001

Felt
(Superseded to 099069001023)

$

$

Not available

11

Homelite 120530011

Housing Assembly

$

$

Not available

12

Homelite 518464002

Housing Bottom Plate

$

$

Not available

13

Homelite 660923001

Screw (M3 x 8 mm)
(Superseded to 099069001017)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 660924001

Screw (M4 x 12 mm)
(Superseded to 099069001018)

Note: Purchase locally

$

$

Not available

15

Homelite 591617001

Seal
(Superseded to 099069001019)

$

$

Not available

16

Homelite 678344002

Nut (M4)
(Superseded to 099069001020)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 660924002

Screw (M4 x 16 mm)
(Superseded to 099069001021)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 678346001

Spring Washer (M4)
(Superseded to 099069001022)

Note: Purchase locally

$

$

Not available

19

Homelite 518463001

Scabbard
(Superseded to 099069001025)

$4.99

$

Usually ships in 3-7 days

0

20

Homelite 660925002

Screw (M4 x 9 mm)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 660927002

Screw (M5 x 14.5 mm)
(Superseded to 099069001029)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 660926001

Screw (M5 x 26.5 mm)
(Superseded to 099069001027)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 638342001

Cam Spacer

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 940705023

Logo Label

$

$

Not available

25

Homelite 940680005

Hot Surface Label

$

$

Not available

26

Homelite 940657028

Warning Label

$1.49

$

Usually ships in 3-7 days

0

Homelite 987000383

Operator's Manual

$

$

Currently unavailable
