RY 20 UP02 VNM (095079774) - Ryobi 18V Telescoping Pole Pump, Rev 01 (2022-08) General Assembly Parts Diagram

18V Telescoping Pole Pump, Rev 01

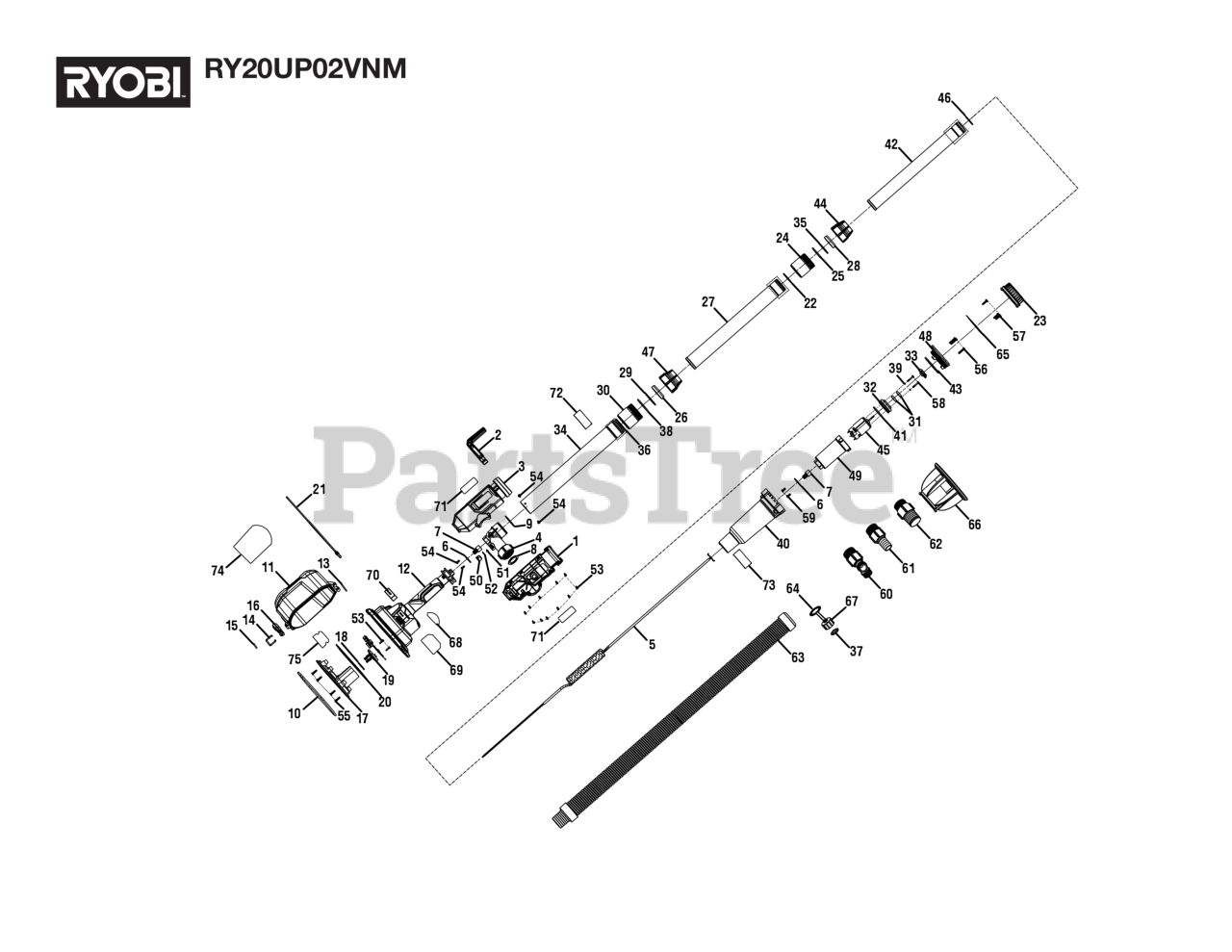

General Assembly Parts Diagram

  • Title

1

Homelite 527932096

Housing (Left, Inc. Key No. 71)

Note: (Left, Inc. Key No. 71)

$6.49

$

Usually ships in 0 days

0

2

Homelite 527932098

Barrel Hook

$2.99

$

Usually ships in 0 days

0

3

Homelite 527932097

Housing (Right, Inc. Key No. 71)

Note: (Right, Inc. Key No. 71)

$6.49

$

Usually ships in 0 days

0

4

Homelite 544135001

Outlet & Coupler

$5.49

$

Usually ships in 0 days

0

5

Homelite 290606011

Power Cable

$29.99

$

Usually ships in 3-7 days

0

6

Homelite 642511004

Plate

$5.99

$

Usually ships in 0 days

0

7

Homelite 561383054

Rubber Grommet

$2.49

$

Usually ships in 0 days

0

8

Homelite 570449006

Rubber Gasket

$2.49

$

Usually ships in 0 days

0

9

Homelite 570742222

O-Ring (37 x 1.8)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 570742188

O-Ring Seal (ID142.5 x CS4)

$4.49

$

Usually ships in 3-7 days

0

11

Homelite 527932038

Battery Door (Inc. Key No. 74)

Note: (Inc. Key No. 74)

$25.99

$

Usually ships in 0 days

0

12

Homelite 527932104

Lower Housing (Inc. Key Nos. 68-70)

Note: (Inc. Key Nos. 68-70)

$32.99

$

Usually ships in 0 days

0

13

Homelite 678799030

Battery Door Pin

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 678799032

Latch Locker

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 678799031

Latch Pin

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 527932016

Battery Door Latch

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 527932108

Battery Holder (Inc. Key No. 75)

Note: (Inc. Key No. 75)

$5.99

$

Usually ships in 0 days

0

18

Homelite 570742187

O-Ring (24 x 2)

$2.49

$

Usually ships in 0 days

0

19

Homelite 300001088

Terminal Assembly

$12.99

$

Usually ships in 3-7 days

0

20

Homelite 570742232

O-Ring (106.2 x 2)

$5.99

$

Usually ships in 3-7 days

0

21

Homelite 903073002

Wrist Lanyard

$5.49

$

Usually ships in 0 days

0

22

Homelite 570742230

O-Ring (35.5 x 1.8)

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 527932095

Filter

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 544136003

Interlock

$3.49

$

Usually ships in 0 days

0

25

Homelite 570742223

O-Ring (35 x 2.65)

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 544136006

Locking Collar

$2.49

$

Usually ships in 0 days

0

27

Homelite 678777028

Center Tube

$29.99

$

Usually ships in 0 days

0

28

Homelite 544136002

Locking Collar

$2.49

$

Usually ships in 0 days

0

29

Homelite 524768009

Compression Ring (ID40.5 x OD47.5 x 2t)

$2.49

$

Usually ships in 0 days

0

30

Homelite 544136007

Interlock

$3.99

$

Usually ships in 0 days

0

31

Homelite 570464027

Rotary Shaft Seal

$4.49

$

Usually ships in 3-7 days

0

32

Homelite 644473001

Motor Cover

$14.99

$

Usually ships in 0 days

0

33

Homelite 544134001

Impeller

$2.49

$

Usually ships in 0 days

0

34

Homelite 678777029

Upper Tube (Inc. Key No. 72)

Note: (Inc. Key No. 72)

$31.99

$

Usually ships in 0 days

0

35

Homelite 524768008

Compression Ring (ID35.5 x OD42.5 x 2t)

$2.49

$

Usually ships in 0 days

0

36

Homelite 570742231

O-Ring (41 x 1.78)

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 570449009

Rubber Gasket

$2.49

$

Usually ships in 0 days

0

38

Homelite 570742224

O-Ring (40 x 2.65)

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 570742228

O-Ring (3 x 1)

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 522032080

Pump Housing (Inc. Key No. 73)

$13.99

$

Usually ships in 3-7 days

0

41

Homelite 570742221

O-Ring (36 x 2.65)

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 678777027

Lower Tube

$27.99

$

Usually ships in 0 days

0

43

Homelite 570742220

O-Ring (55 x 2.65)

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 544136001

Collar

$7.49

$

Usually ships in 0 days

0

45

Homelite 230417052

18V Motor

$45.99

$

Usually ships in 3-7 days

0

46

Homelite 570742229

O-Ring (30.5 x 1.8)

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 544136005

Collar

$7.99

$

Usually ships in 0 days

0

48

Homelite 522032081

Pump Cover

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 644473002

Housing

$28.99

$

Usually ships in 0 days

0

50

Homelite 546326001

Umbrella Valve Seat

$2.49

$

Usually ships in 0 days

0

51

Homelite 560955007

Tank Cap Umbrella Valve

$2.99

$

Usually ships in 3-7 days

0

52

Homelite 570742242

O-Ring (10.6 x 1.8)

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 660203087

Screw (M3 x 12 mm)

$

$

Not available

54

Homelite 662120001

Screw (M4 x 8 mm)

$2.49

$

Usually ships in 3-7 days

0

55

Homelite 661403016

Screw (M4.2 x 15 mm, Phillips Hd. S.T.)

$2.49

$

Usually ships in 3-7 days

0

56

Homelite 660925014

Screw (M4 x 20 mm, T20 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

57

Homelite 663160001

Screw (M4.2 x 15 mm, T20 Torx Pan Hd.)

$

$

Not available

58

Homelite 663159001

Screw (M3 x 20 mm, T20 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

59

Homelite 660925013

Screw (M4 x 10 mm, T20 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

60

Homelite 544135004

3/4 in. Adapter Splitter

$5.49

$

Usually ships in 3-7 days

0

61

Homelite 544135003

1 in. Barbed Hose Coupler

$3.99

$

Usually ships in 3-7 days

0

62

Homelite 544135002

Pool Hose Coupler

$3.49

$

Usually ships in 3-7 days

0

63

Homelite 318341001

Pool Hose

$48.99

$

Usually ships in 0 days

0

64

Homelite 544135005

3/4 in. Tether

$2.49

$

Usually ships in 0 days

0

65

Homelite 678981008

Filter Net

$2.99

$

Usually ships in 0 days

0

66

Homelite 527932099

Mud Straining Filter

$20.99

$

Usually ships in 0 days

0

67

Homelite 544135006

3/4 in. Cap

$2.49

$

Usually ships in 0 days

0

68

Homelite 940779424

Task Light Led Label

$2.49

$

Usually ships in 3-7 days

0

69

Homelite 940779423

On Off Label

$2.49

$

Usually ships in 3-7 days

0

70

Homelite 940779464

Timer Label

$2.49

$

Usually ships in 3-7 days

0

71

Homelite 940705491

Logo Label

$2.49

$

Usually ships in 3-7 days

0

72

Homelite 940779492

Do Not Submerge Label

$2.49

$

Usually ships in 3-7 days

0

73

Homelite 940779422

Do Not Twist Label

$2.49

$

Usually ships in 3-7 days

0

74

Homelite 940779421

Icon / Warning Label

$2.49

$

Usually ships in 0 days

0

75

Homelite 941588950

Data Label

$2.49

$

Usually ships in 3-7 days

0

Homelite 998000640

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
