RY 252 CS (090333002) - Ryobi String Trimmer, Rev 01 (2015-03) FIGURE C Parts Diagram

String Trimmer, Rev 01

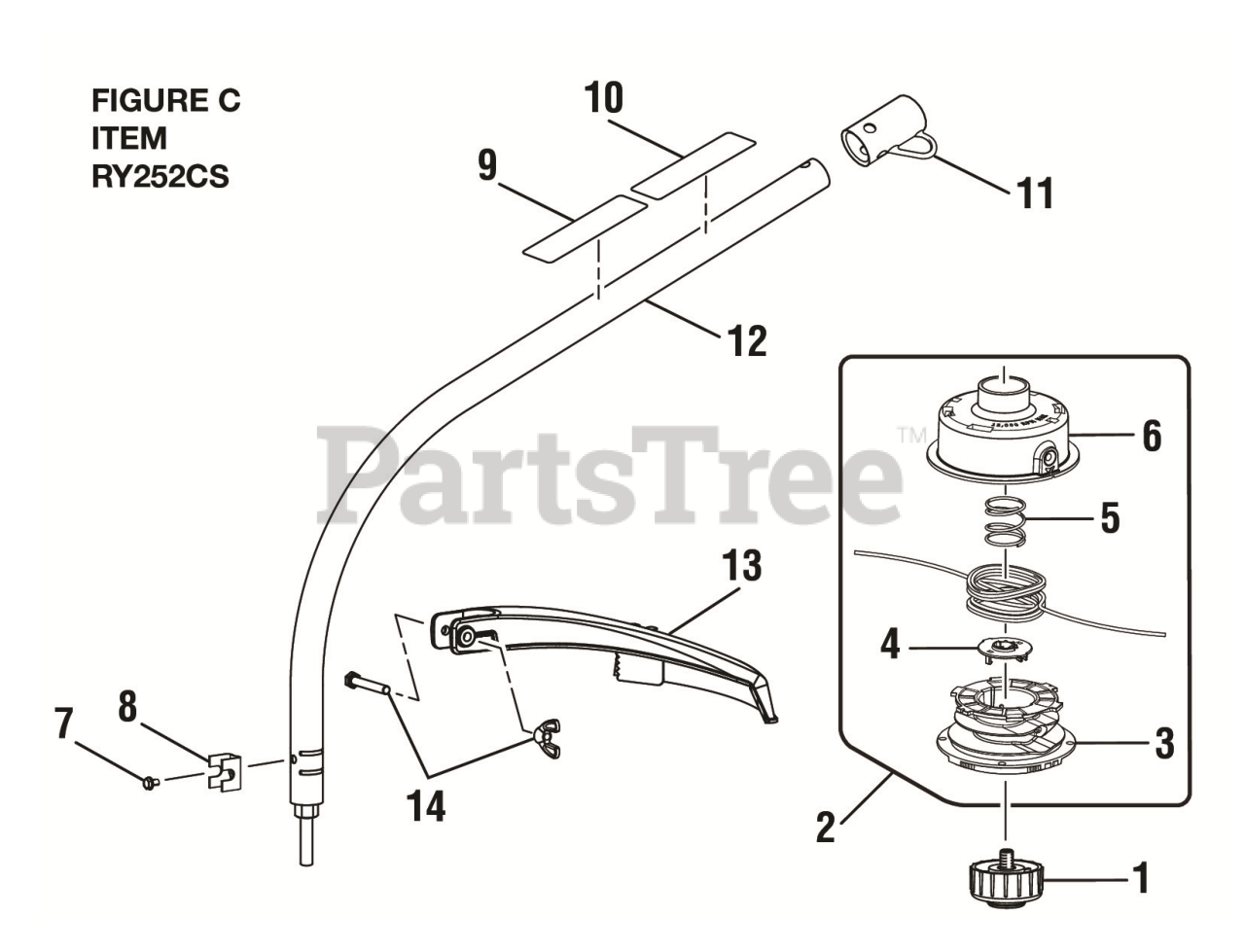

FIGURE C Parts Diagram

  • Title

1

Homelite 308042002

RETAINING CAP, LEFT-HANDED THREAD

$

$

Not available

2

Homelite 309562008

Reel Easy String Cutting Head Assembly

$

$

Not available

3

Homelite 310412005

Spool Assembly

$

$

Not available

4

Homelite 526939001

String Guide

$1.49

$

In Stock, only 2 left!

0

5

Homelite 679958001

Compression Spring

$1.49

$

In Stock, only 4 left!

0

6

Homelite 310643005

Housing and Eyelet Assembly

$3.49

$

Usually ships in 3-7 days

0

7

Homelite 660647001

Screw (#10-32 x 3/8 in., Hex Washer Hd. S.T.)

$1.49

$

In Stock, only 2 left!

0

8

Homelite 638001001

CLAMP

$1.49

$

In Stock, only 2 left!

0

9

Homelite 940726013

Ryobi EXPAND-IT Label

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 940657165

Warning Icon Label

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 518019002

Storage Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, only 2 left!

0

12

Homelite 307486001

Curved Shaft Assembly

$

$

Not available

13

Homelite 308052010

Grass Deflector Assembly

$4.99

$

Usually ships in 3-7 days

0

14

Homelite 120650007

Fastener Parts Kit

$

$

Not available
