RY 253 SS (090333003) - Ryobi String Trimmer, Rev 01 (2015-03) FIGURE C Parts Diagram

String Trimmer, Rev 01

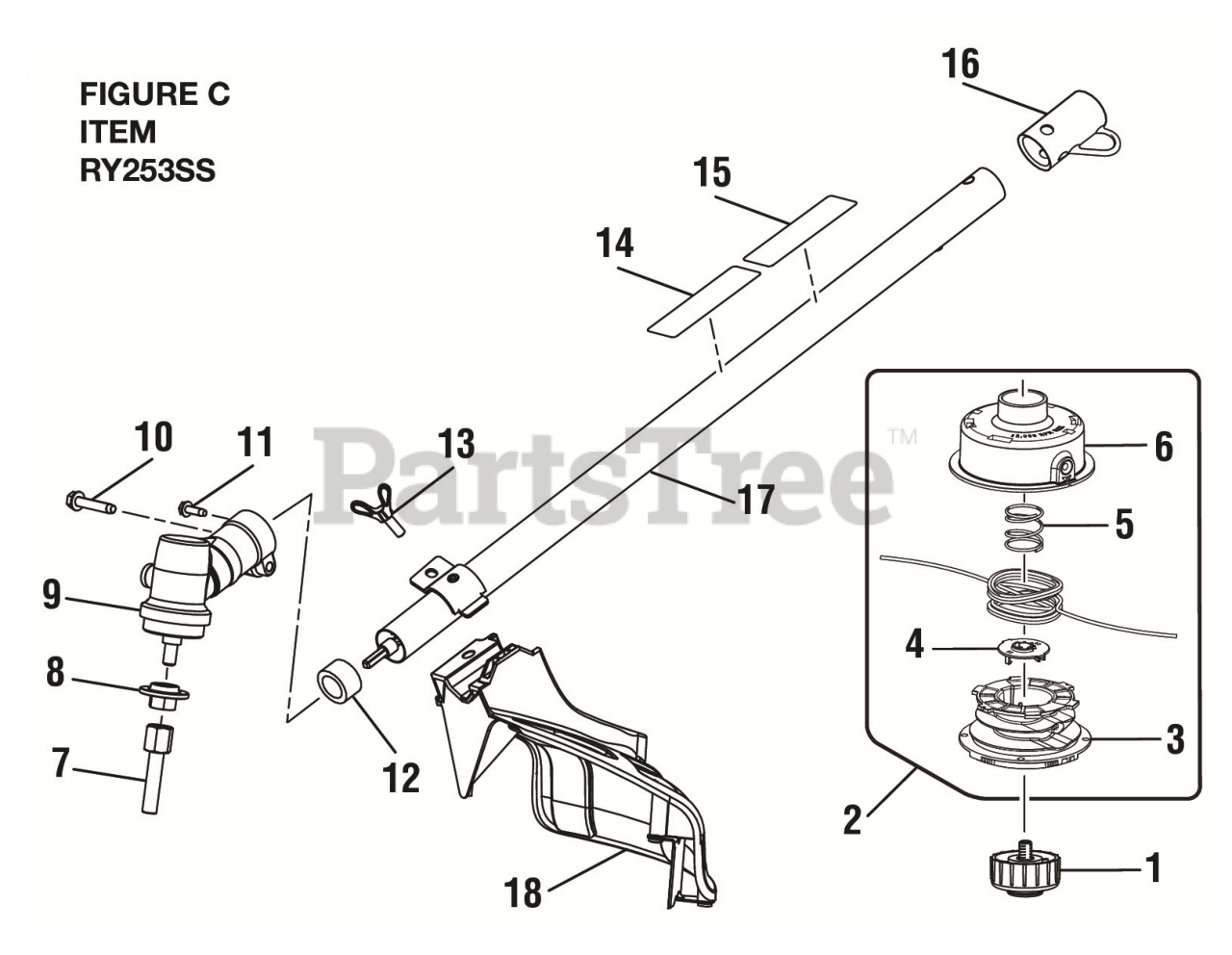

FIGURE C Parts Diagram

  • Title

1

Homelite 308042003

RETAINING CAP, LEFT-HANDED THREAD

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 309562008

Reel Easy String Cutting Head Assembly

$

$

Not available

3

Homelite 310412005

Spool Assembly

$

$

Not available

4

Homelite 526939001

String Guide

$1.49

$

In Stock, only 2 left!

0

5

Homelite 679958001

Compression Spring

$1.49

$

In Stock, only 4 left!

0

6

Homelite 310643005

Housing and Eyelet Assembly

$3.49

$

Usually ships in 3-7 days

0

7

Homelite 678019002

TRIMMER HEAD SHAFT ADAPTOR

$2.49

$

In Stock, only 3 left!

0

8

Homelite 678011002

FLANGED WASHER

$

$

Not available

9

Homelite 308210009

Gear Case Assembly

$28.99

$

Usually ships in 3-7 days

0

10

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Washer Hd. S.T.)
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 660641001

Screw w/Washer (10-24 x 5/8 in., Hex Hd. T.F.)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 518367001

SPACER

$1.49

$

In Stock, Qty 5

0

13

Homelite 660886001

Screw (#1/4-20 x 1-1/4 in. Hex Washer Hd.)

$1.49

$

In Stock, only 3 left!

0

14

Homelite 940726013

Ryobi EXPAND-IT Label

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 940657165

Warning Icon Label

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 518019002

Storage Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, only 2 left!

0

17

Homelite 308035047

Straight Shaft Assembly

$22.99

$

Usually ships in 3-7 days

0

18

Homelite 308473001

Grass Deflector Assembly (Incl. Key No. 11)

$

$

Not available
