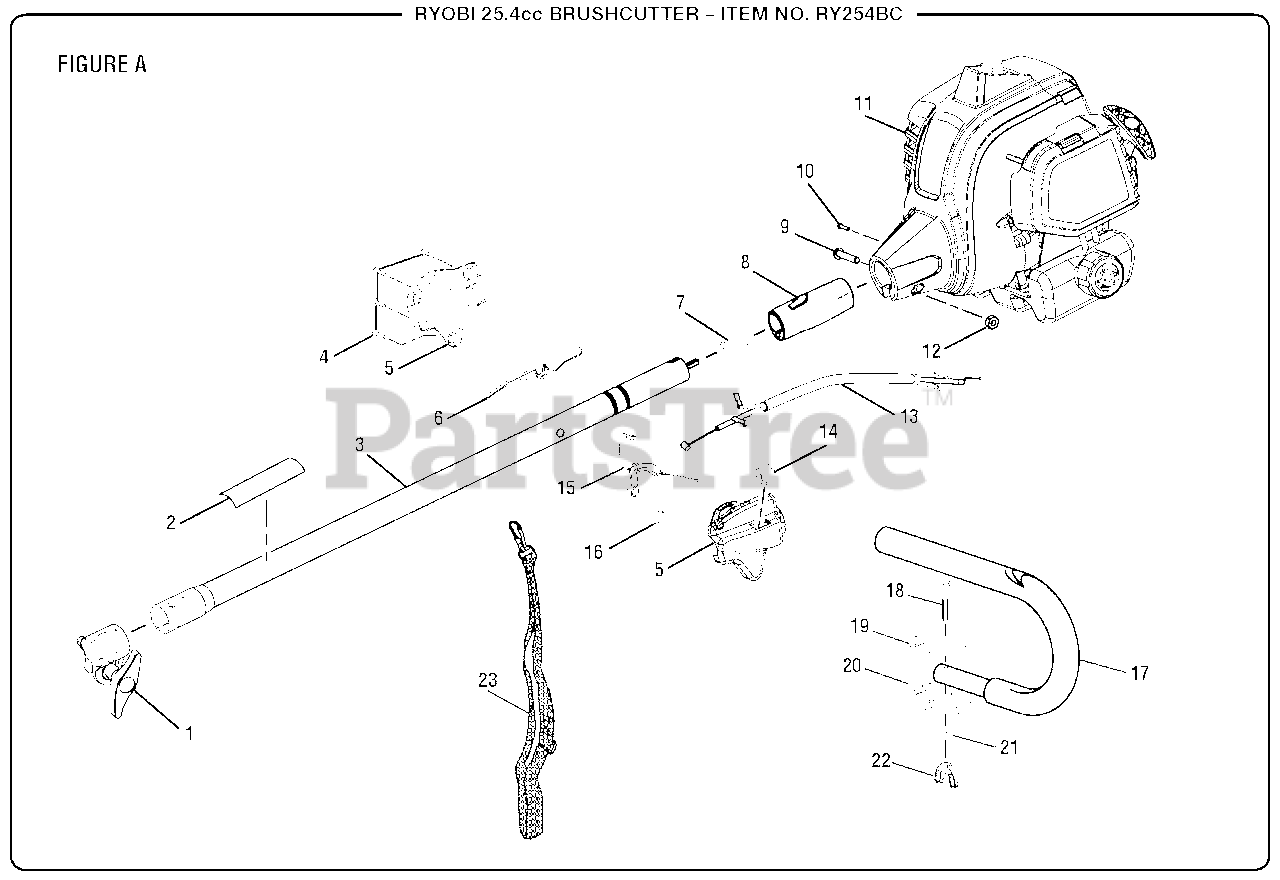

RY 254 BC (090333004) - Ryobi Brush Cutter Firure A Parts Diagram

Brush Cutter

Firure A Parts Diagram

  • Title

1

Homelite 308045012

Boom Clamp Assembly

$

$

Not available

2

Homelite 940657164

Warning Icon Label

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 308470060

Upper Boom Assembly

Note: (Inc Key Nos 1-2)

$36.99

$

In Stock, only 2 left!

0

4

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Hd ST)

$2.49

$

In Stock, Qty 13

0

5

Homelite 310831005

Control Handle Assembly

Note: (Inc Key No 4)

$10.99

$

In Stock, only 1 left!

0

6

Homelite 518695009

Trigger Lock

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 690140011

Compression Spring
(Superseded to 06713)

$2.49

$

In Stock, only 1 left!

0

8

Homelite 570234002

Rear Handle Grip
(Superseded to 570234010)

$5.99

$

In Stock, only 2 left!

0

9

Homelite T660697001

Screw (M6 x 30 mm, T27 Torx Button Hd)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 660925011

Screw (M4 x 8 mm, T20 Torx Pan Hd ST)

$2.49

$

In Stock, only 1 left!

0

11

Homelite 307164002

Powerhead Assembly w/Labels

$

$

Not available

12

Homelite 678029002

Hex Nut (M6 x 1)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 307318001

Throttle Cable and Wire Assembly

$12.99

$

Usually ships in 3-7 days

0

14

Homelite 760961002

On/Stop Switch

$4.49

$

Usually ships in 3-7 days

0

15

Homelite 518696016

Trigger
(Superseded to 518696020)

$2.49

$

In Stock, only 3 left!

0

16

Homelite 690694002

Trigger Spring

$2.49

$

In Stock, Qty 5

0

17

Homelite 308046005

"J" Handle and Grip
(Superseded to 308046009)

Note: (Inc Key Nos 18-22)

$31.99

$

Usually ships in 3-7 days

0

18

Homelite 660643001

Bolt (1/4-20 x 1-1/2 in, Hex Hd)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 638564001

Top "J" Handle Clamp

$2.99

$

Usually ships in 3-7 days

0

20

Homelite 638565001

Bottom "J" Handle Clamp

$2.99

$

Usually ships in 3-7 days

0

21

Homelite 678013001

Washer (ID725 x OD16 x 15t)

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 518949001

Wing Nut (1/4-20)
(Superseded to PS02453)

$2.49

$

In Stock, only 4 left!

0

23

Homelite 308487001

Shoulder Harness

$13.99

$

In Stock, only 1 left!

0

Homelite 991000149

Operator' s Manual (961494006)

Note: Not Shown

$

$

Not available
