RY 254 BC (090333020) - Ryobi Brush Cutter, Rev 01 (2017-04) Figure C Parts Diagram

Brush Cutter, Rev 01

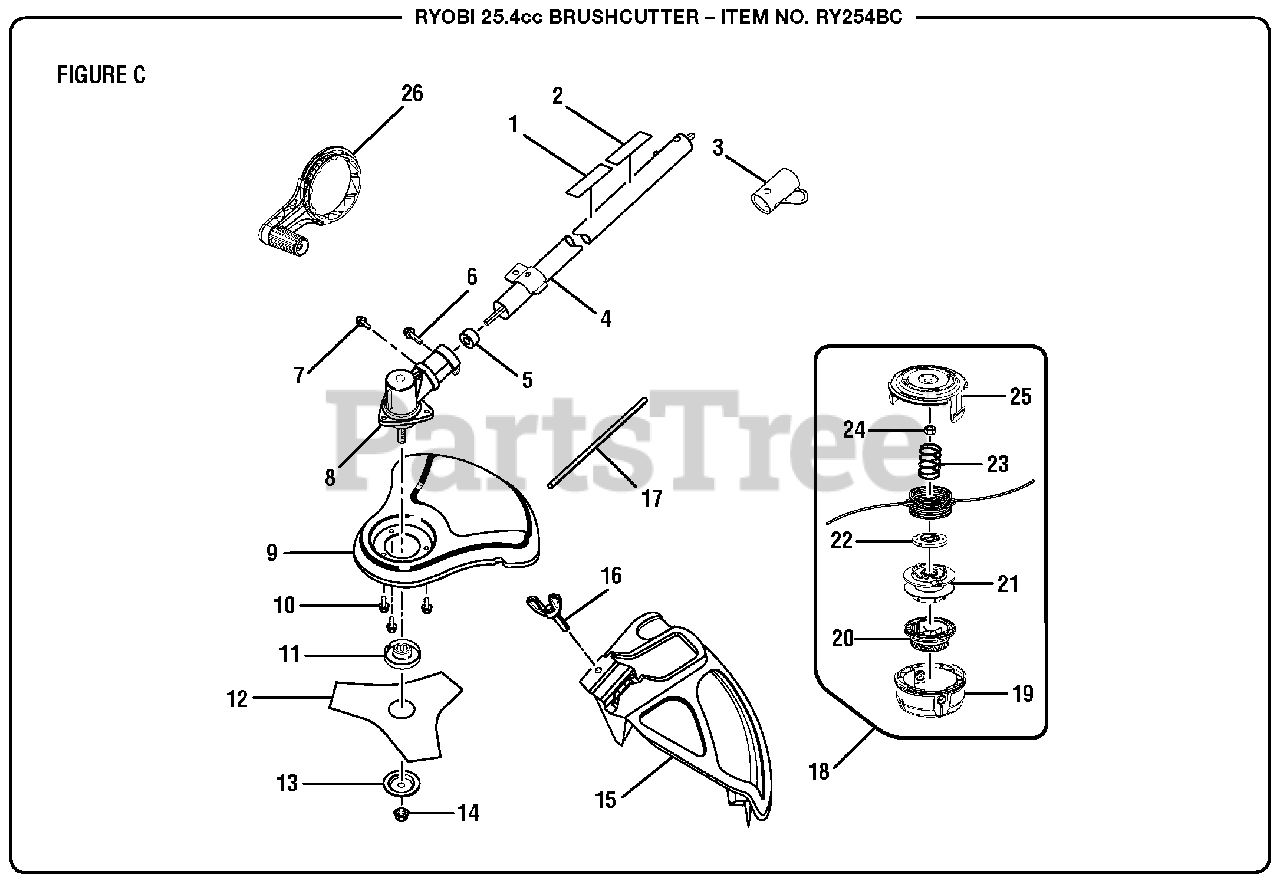

Figure C Parts Diagram

  • Title

1

Homelite 940726013

Expand-it Label

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 940657166

Brushcutter Safety Label

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 518019002

Storage Hanger Cap
(Superseded to 518019004)

$2.49

$

In Stock, Qty 6

0

4

Homelite 308035058

Lower Straight Shaft Boom Assembly

Note: (Inc. Key Nos. 1-3)

$41.99

$

In Stock, only 3 left!

0

5

Homelite 518367001

Spacer

$2.49

$

In Stock, only 3 left!

0

6

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Washer Hd. S.T.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

7

Homelite 660641001

Screw (10-24 x 5/8 in., Hex Washer Hd. S.T.)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 308210008

Gear Case Assembly
(Superseded to 308210001)

$

$

Not available

9

Homelite 638120001

Brushcutter Guard

$

$

Not available

10

Homelite 660737001

Screw w/Washer (10-24 x 1/2 in., Slotted Hex Hd.)
(Superseded to 88049)

$

$

Not available

11

Homelite 678011001

Flanged Washer
(Superseded to 099078001005)

$12.99

$

Usually ships in 3-7 days

0

12

Homelite 638006004

Blade

$24.99

$

In Stock, only 2 left!

0

13

Homelite 638017001

Cupped Washer
(Superseded to 04409)

$4.99

$

In Stock, only 2 left!

0

14

Homelite 678018001

Lock Nut (M8 x 1.25 in., Left Hand Threads)
(Superseded to 04277)

$

$

Not available

15

Homelite 308473005

Grass Deflector Assembly

Note: (Inc. Key No. 16)

$19.99

$

In Stock, only 2 left!

0

16

Homelite 660886001

Screw (1/4-20 x 7/8 in.)

$2.49

$

In Stock, only 4 left!

0

17

Homelite 678020001

Gear Head Locking Tool
(Superseded to 099078001040)

$2.49

$

In Stock, only 3 left!

0

18

Homelite 311759004

Trimmer Head Assembly (.095)
(Superseded to 313248004)

Note: (Inc. Key Nos. 19-25)

$33.99

$

In Stock, only 2 left!

0

19

Homelite 530366001

Lower Housing

$9.99

$

In Stock, only 2 left!

0

20

Homelite 530455002

Bump Knob (Green)

$4.99

$

In Stock, Qty 7

0

21

Homelite 530670001

Spool

$3.49

$

In Stock, Qty 6

0

22

Homelite 529803001

String Guide

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 678749001

Compression Spring

$2.49

$

In Stock, Qty 14

0

24

Homelite 695215001

Hex Nut (M8, L.H. Thread)

$

$

Not available

25

Homelite 530001001

Upper Housing

$

$

Not available

26

Homelite 312283001

Crank Handle Assembly

$3.49

$

In Stock, Qty 5

0
