RY 254 BC (090333031) - Ryobi Brush Cutter, Rev 04 (2019-02) FIGURE A Parts Diagram

Brush Cutter, Rev 04

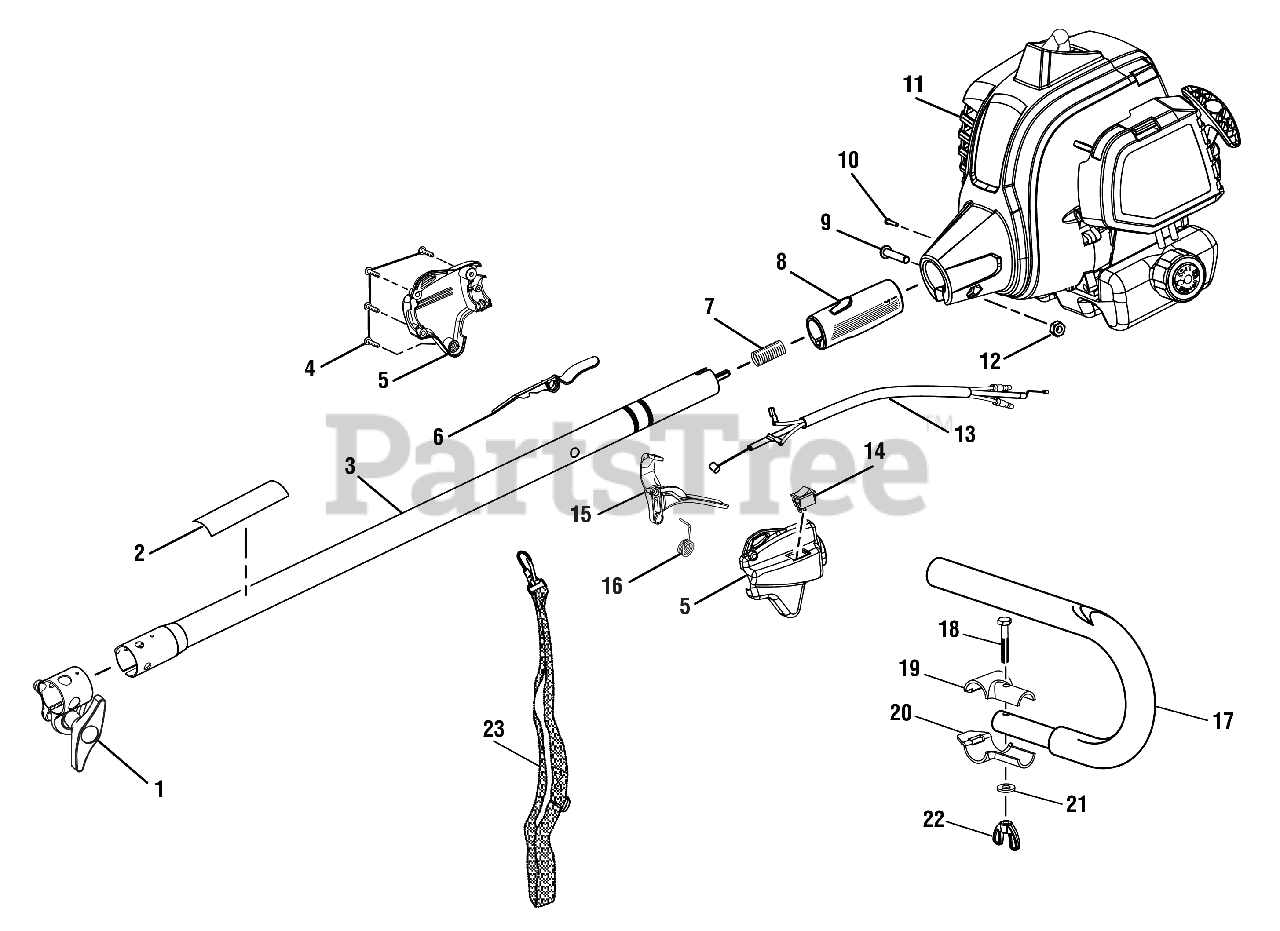

FIGURE A Parts Diagram

  • Title

1

Homelite 312630001

Boom Clamp Assembly

$11.99

$

In Stock, only 2 left!

0

2

Homelite 940657164

Warning Icon Label

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 308470060

Upper Boom Assembly

$36.99

$

In Stock, only 2 left!

0

4

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$2.49

$

In Stock, Qty 13

0

5

Homelite 310831005

Control Handle Assembly (Inc. Key No. 6)

$10.99

$

In Stock, only 1 left!

0

6

Homelite 518695009

Trigger Lock

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 690140011

COMPRESSION SPRING
(Superseded to 06713)

$2.49

$

In Stock, only 1 left!

0

8

Homelite 570234010

Rear Handle Grip

$5.99

$

In Stock, only 2 left!

0

9

Homelite T660697001

Screw (M6 x 30 mm, T27 Torx Button Hd.)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 660925011

Screw (M4 x 8 mm, T25 Torx Pan Hd. T.F.)

$2.49

$

In Stock, only 1 left!

0

11

Homelite 307164002

Powerhead Assembly w/Labels

$

$

Not available

12

Homelite 678029002

Hex Nut (M6.3 x 1)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 307318001

Throttle Cable and Wire Assembly

$12.99

$

Usually ships in 3-7 days

0

14

Homelite 760961002

Stop Switch (Momentary Contact)

$4.49

$

Usually ships in 3-7 days

0

15

Homelite 518696020

Trigger

$2.49

$

In Stock, only 3 left!

0

16

Homelite 690694002

Torsion Spring (Throttle Trigger)

$2.49

$

In Stock, Qty 5

0

17

Homelite 308046009

"J" Handle and Grip

$31.99

$

Usually ships in 3-7 days

0

18

Homelite 662724001

Bolt (1/4-20 x 1-1/2 in., Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 638564004

Top "J" Handle Clamp

$3.49

$

Usually ships in 3-7 days

0

20

Homelite 638565004

Bottom "J" Handle Clamp

$3.49

$

Usually ships in 3-7 days

0

21

Homelite 678013001

Washer (ID7.25 x OD16 x 1.5t)

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 4 left!

0

23

Homelite 308487001

Shoulder Harness Assembly

$13.99

$

In Stock, only 1 left!

0

Homelite 995000156

Operator's Manual

Note: Not Shown

$

$

Not available
