RY 28120 - Ryobi String Trimmer, 26cc Figure C - RY28140 Parts Diagram

String Trimmer, 26cc

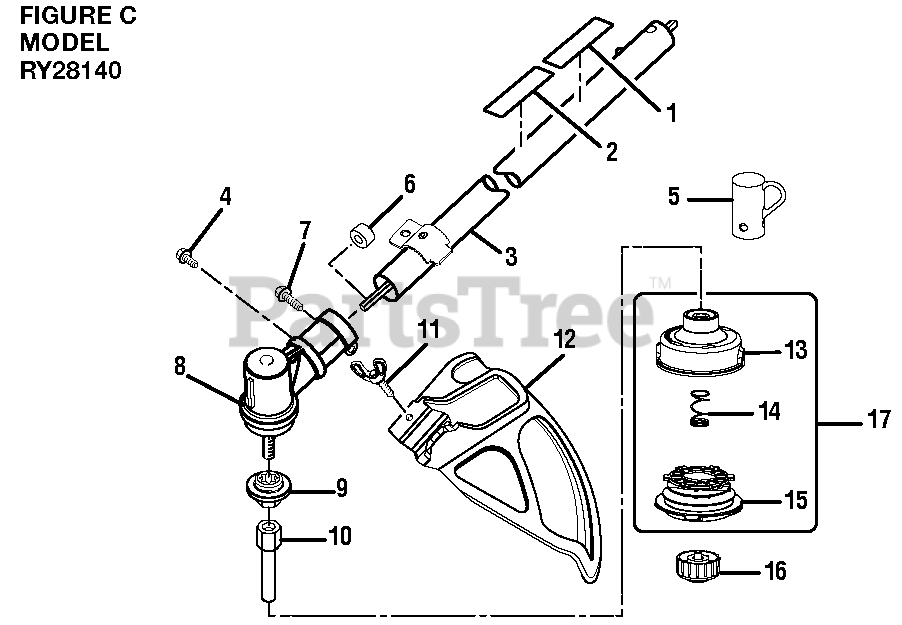

Figure C - RY28140 Parts Diagram

  • Title

1

Homelite 940726013

Logo Label

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 940657032

Warning Label
(Superseded to 940657165)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 308035038

Straight Shaft Assembly

$

$

Not available

4

Homelite 660641001

Screw (10-24 x 5/8 in.)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

6

Homelite 518367001

Spacer

$1.49

$

In Stock, Qty 5

0

7

Homelite 660642001

Screw (1/4-20 x 1-1/4 in.)
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 308210009

Gear Head

$28.99

$

Usually ships in 3-7 days

0

9

Homelite 678011002

Washer

$

$

Not available

10

Homelite 678019002

Arbor

$2.49

$

In Stock, only 3 left!

0

11

Homelite 660886001

Wing Screw (1/4-20 x 1-1/4 in.)

$1.49

$

In Stock, only 2 left!

0

12

Homelite 308473001

Grass Deflector Assembly

Note: (Inc. Key No. 11)

$

$

Not available

13

Homelite 310643003

String Head Housing

$

$

Not available

14

Homelite 679958001

Spring

$1.49

$

In Stock, Qty 7

0

15

Homelite 310412003

Spool

$

$

Not available

16

Homelite 308042003

Spool Retainer

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 309562005

String Head Assembly

Note: (Inc. Key Nos. 13-15)

$7.49

$

In Stock, only 1 left!

0
