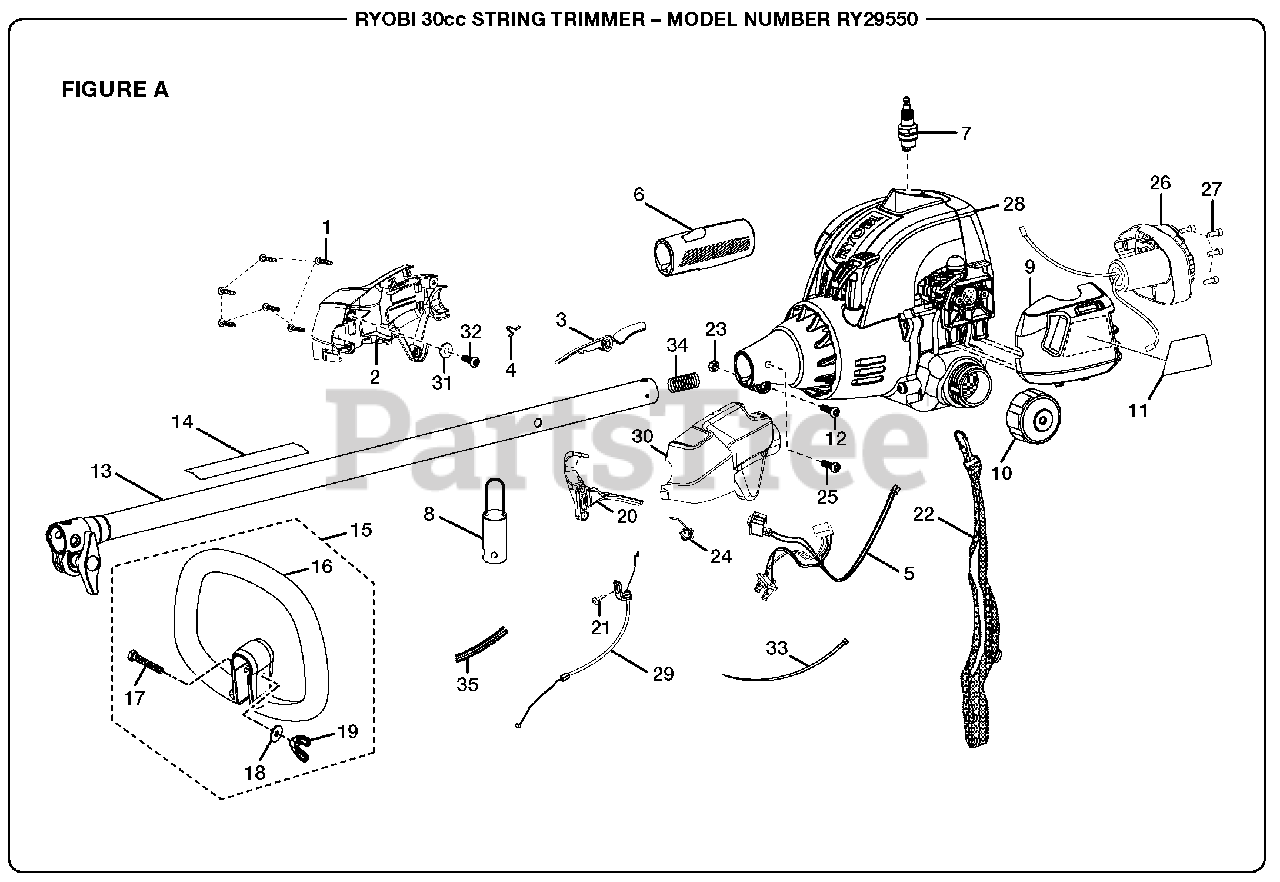

RY 29550 - Ryobi String Trimmer, 30cc Figure A Parts Diagram

String Trimmer, 30cc

Figure A Parts Diagram

  • Title

1

Homelite 660563001

Screw (M4 x 18 mm)
(Superseded to 660734001)

$2.49

$

In Stock, only 3 left!

0

2

Homelite 518797001

Left Handle

$7.49

$

Usually ships in 3-7 days

0

3

Homelite 518695001

Trigger Lock

$1.49

$

In Stock, only 2 left!

0

4

Homelite 638431001

Strap Hanger

$2.49

$

In Stock, only 1 left!

0

5

Homelite 308315001

Wire Harness

$

$

Not available

6

Homelite 570234003

Rear Handle

$3.49

$

Usually ships in 3-7 days

0

7

Homelite 870174002

Spark Plug (Champion RCJ6Y)
(Superseded to 870170001)

$21.99

$

Usually ships in 3-7 days

0

8

Homelite 518366001

Hanger Cap
(Superseded to 518019004)

$2.49

$

In Stock, Qty 6

0

9

Homelite 518777001

Air Box Cover

$

$

Not available

10

Homelite 300758006

Fuel Cap Assembly

$

$

Not available

11

Homelite 940686033

Label

$

$

Not available

12

Homelite 660697002

Bolt (M6 x 20 mm)

$2.49

$

In Stock, only 4 left!

0

13

Homelite 308470006

Upper Boom Assembly

$

$

Not available

14

Homelite 940230132

Warning Decal
(Superseded to 984032001)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 308991001

Front Handle Assembly

$

$

Not available

16

Homelite 518738001

Front Handle

$

$

Not available

17

Homelite 660643008

Bolt (1/4-20 x 40 mm)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 678008001

Washer

$2.49

$

In Stock, only 1 left!

0

19

Homelite 518949001

Wing Nut (1/4-20)
(Superseded to PS02453)

$2.49

$

In Stock, only 2 left!

0

20

Homelite 518696001

Throttle Trigger

$

$

Not available

21

Homelite 660616001

Screw (10-24 x 7/8 in.)

$

$

Not available

22

Homelite 308487001

Shoulder Strap

$13.99

$

In Stock, only 1 left!

0

23

Homelite 678029002

Hex Nut (M6)

$2.49

$

In Stock, only 4 left!

0

24

Homelite 690694002

Spring

$2.49

$

In Stock, only 3 left!

0

25

Homelite 660634001

Bolt (8-16 x 5/16 in. Torx T.F.)

$2.49

$

In Stock, Qty 20+

0

26

Homelite 310568001

Electrical Start Assembly

$

$

Not available

27

Homelite 660527001

Screw (M5 x 14 mm)

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 309800001

Power Head Assembly

$

$

Not available

29

Homelite 308439012

Throttle Cable

$2.49

$

In Stock, only 3 left!

0

30

Homelite 518798001

Right Handle

$8.49

$

Usually ships in 3-7 days

0

31

Homelite 690969001

Washer

$2.49

$

In Stock, only 1 left!

0

32

Homelite 660870001

Screw
(Superseded to 984759001)

$

$

Not available

33

Homelite 900333010

Cable Tie

$

$

Not available

34

Homelite 690140011

Spring
(Superseded to 06713)

$2.49

$

In Stock, Qty 5

0

35

Homelite 518036006

Tube

$

$

Not available

Homelite 130269012

Battery Pack

Note: (Not Shown)

$58.99

$

Usually ships in 3-7 days

0

Homelite 140295003

Charger

Note: (Not Shown)

$

$

Not available

Homelite 987000310

Operator's Manual (960703004)

$

$

Currently unavailable
