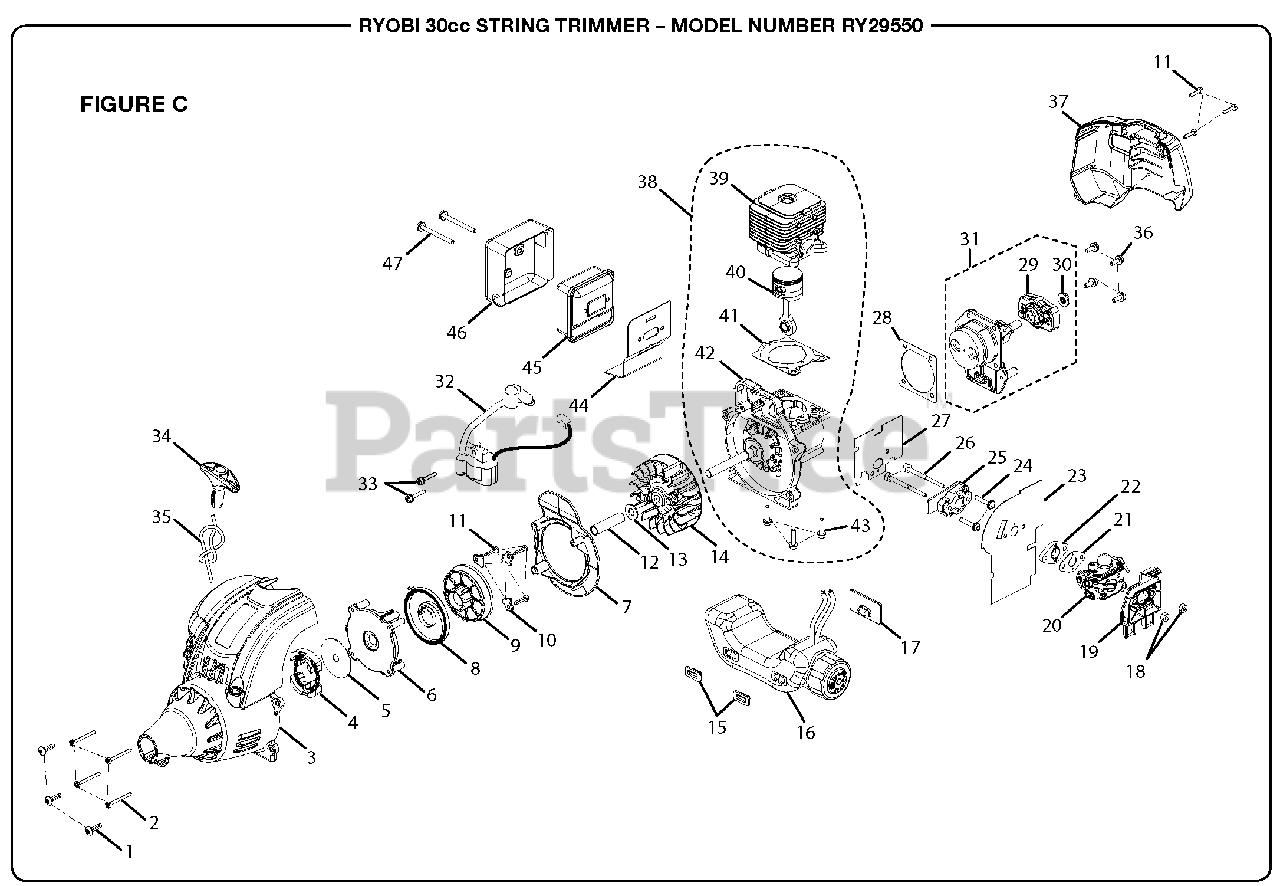

RY 29550 - Ryobi String Trimmer, 30cc Figure C Parts Diagram

String Trimmer, 30cc

Figure C Parts Diagram

  • Title

1

Homelite 660630002

Screw (10-24 x 3/4 in.)
(Superseded to 82538)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 661508001

Screw (M4 x 38 mm)

$

$

Currently unavailable

3

Homelite 308194005

Starter Housing Assembly

$

$

Not available

4

Homelite 300960002

Clutch Assembly

$6.49

$

Usually ships in 3-7 days

0

5

Homelite 638090001

Washer

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 518134001

Starter Retaining

$

$

Not available

7

Homelite 518854001

Baffle Plate

$1.49

$

In Stock, only 3 left!

0

8

Homelite 638033001

Spring & Container

$3.49

$

In Stock, only 3 left!

0

9

Homelite 518501001

Pulley

$1.99

$

In Stock, Qty 8

0

10

Homelite 638389001

Pulley Retainer

$1.49

$

In Stock, only 4 left!

0

11

Homelite 660466001

Screw (M4 x 18 mm)

$1.49

$

In Stock, Qty 6

0

12

Homelite 638284003

Spacer

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 650017001

Washer
(Superseded to PS05268)

$1.49

$

In Stock, only 1 left!

0

14

Homelite 308433008

Rotor Assembly

$19.99

$

Usually ships in 3-7 days

0

15

Homelite 570256001

Bumper
(Superseded to 98792)

$1.49

$

In Stock, only 3 left!

0

16

Homelite 308181012

Fuel Tank & Cap Assembly

$

$

Not available

17

Homelite 570549001

Bumper

$1.49

$

In Stock, only 1 left!

0

18

Homelite 678027001

Lock Nut (10-24)
(Superseded to 81208)

$

$

Not available

19

Homelite 518766001

Air Filter Base

$

$

Not available

20

Homelite 308054012

Carburetor Assembly
(Superseded to 308054013)

$36.99

$

In Stock, only 2 left!

0

21

Homelite 900994004

Carburetor Gasket

$

$

Not available

22

Homelite 590456003

Gasket
(Superseded to 5945603)

$

$

Not available

23

Homelite 900740003

Carburetor Gasket

$1.49

$

In Stock, only 1 left!

0

24

Homelite 660662001

Screw (10-24 x 1 in. Pan Hd.)
(Superseded to 093221)

$

$

Not available

25

Homelite 518070001

Heat Dam

$

$

Not available

26

Homelite 660346002

Screw (10 x 2-1/2 in.)

$

$

Not available

27

Homelite 901657001

Heat Dam Gasket

$1.49

$

In Stock, only 2 left!

0

28

Homelite 900954001

Crankcase Gasket

$

$

Not available

29

Homelite 308004002

Pulley Assembly

$

$

Not available

30

Homelite 678339002

Nut (M8 x 1-1/4 in.)

$

$

Not available

31

Homelite 310570001

Crankcase Cover Assembly

$

$

Not available

32

Homelite 310563001

Ignition

$

$

Not available

33

Homelite 660660001

Screw (M4 x 25 mm)
(Superseded to 82540)

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 518502003

Starter Grip

$1.49

$

In Stock, Qty 5

0

35

Homelite 900849002

Starter Rope

$1.49

$

In Stock, Qty 6

0

36

Homelite 660638004

Screw (10-24 x 3/4 in. Pan Hd.)
(Superseded to 984812001)

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 518775001

Rear Housing

$3.49

$

In Stock, only 1 left!

0

38

Homelite 309920001

Short Block Assembly (Inc. Key Nos. 39-43)

$

$

Not available

39

Homelite 640069002

Cylinder
(Superseded to 640069003)

$27.99

$

Usually ships in 3-7 days

0

40

Homelite 308023005

Piston w/Rod Assembly

$

$

Not available

41

Homelite 900953001

Cylinder Gasket

$

$

Not available

42

Homelite 309920002

Crankcase Assembly

$

$

Not available

43

Homelite 660342002

Screw (M5 x 20 mm)

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 901452005

Muffler Gasket

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 309316001

Muffler Assembly

$

$

Not available

46

Homelite 638481001

Heat Shield

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 660638003

Screw (10-24 x 2-1/8 in.)
(Superseded to PS03999)

$

$

Not available
