RY 30020 B - Ryobi String Trimmer, 30cc Upper Boom/Handle Assembly Parts Diagram

String Trimmer, 30cc

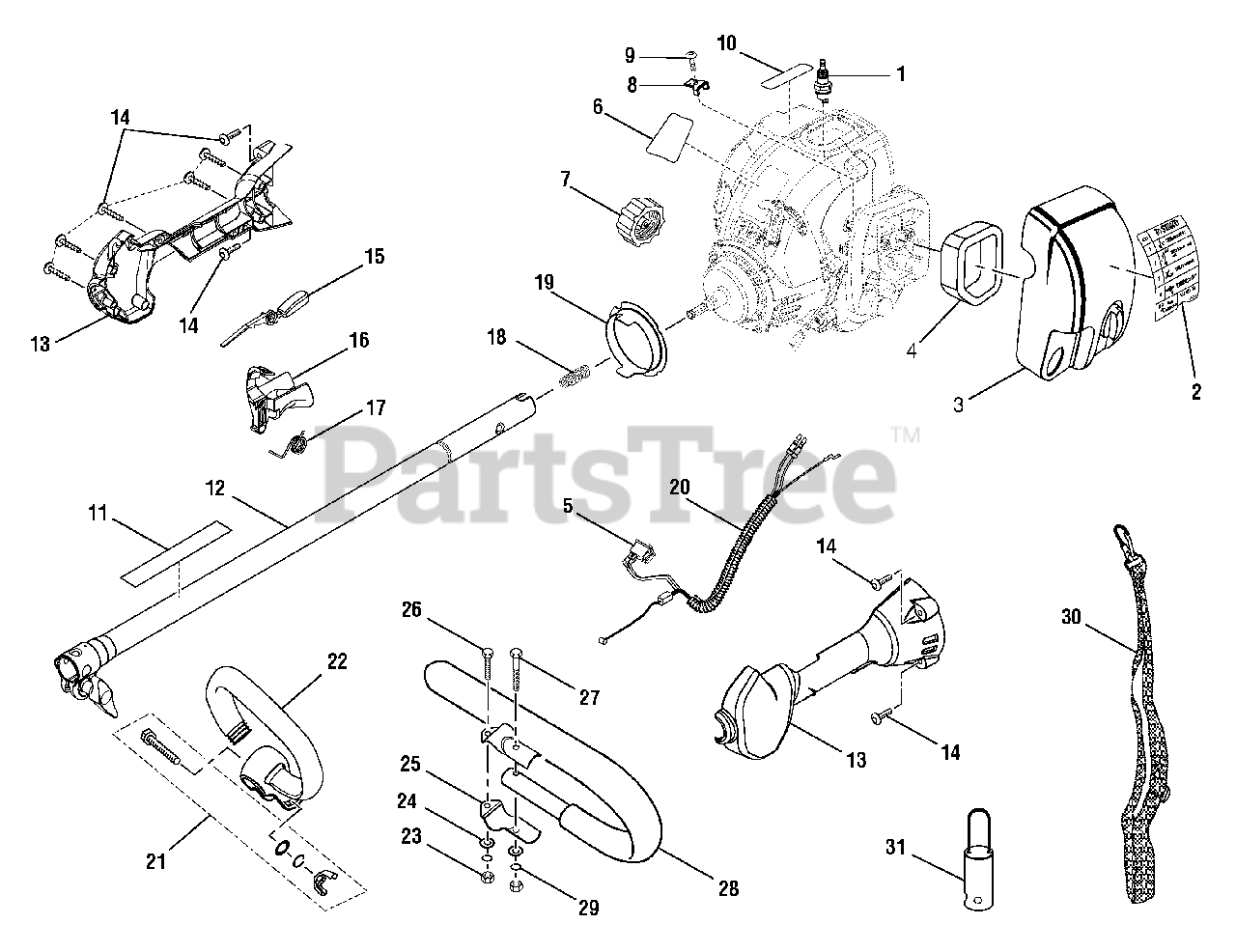

Upper Boom/Handle Assembly Parts Diagram

  • Title

1

Homelite PS02227

SPARK PLUG (CHAMPION RCJ6Y OR NGK BPMR7)
(Superseded to 870174001)

Note: PURCHASE LOCALLY

$4.99

$

In Stock, Qty 20+

0

2

Homelite 985426001

STARTING/PRIMER LABEL
(Superseded to 986178001)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 985417001

AIR BOX COVER
(Superseded to 308207002)

$

$

Not available

4

Homelite 5687301

AIR FILTER

$

$

Not available

5

Homelite PS02764

SWITCH (MOMENTARY CONTACT)

$

$

Not available

6

Homelite 985162001

MODEL LABEL (CS30)

$1.49

$

Usually ships in 3-7 days

0

Homelite 985163001

MODEL LABEL (SS30)

$

$

Not available

Homelite 985164001

MODEL LABEL (BC30)

$

$

Not available

7

Homelite 300758006

FUEL CAP

$

$

Not available

8

Homelite 985411001

THROTTLE CABLE CLIP (CS30 AND SS30)
(Superseded to 638133002)

$1.49

$

In Stock, only 2 left!

0

9

Homelite 983638009

SCREW (M4 X 16 mm TORX PAN HD.)
(Superseded to 660734001)

Note: PURCHASE LOCALLY

$1.49

$

In Stock, Qty 5

0

10

Homelite 985157001

LOGO PLATE

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 984032002

WARNING DECAL (CS30 AND SS30)

$1.49

$

Usually ships in 3-7 days

0

Homelite 984102002

WARNING DECAL (BC30)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 985383001

BOOM ASSEMBLY (CS30 AND SS30)
(Superseded to 000998353)

$

$

Not available

Homelite 985384001

BOOM ASSEMBLY, UPPER (BC30)
(Superseded to 000998354)

$

$

Not available

13

Homelite 985382001

HANDLE ASSEMBLY

$

$

Not available

14

Homelite 82589

HANDLE SCREW (10-14 X 1 in. TORX T.F.)

Note: PURCHASE LOCALLY

$1.99

$

Usually ships in 3-7 days

0

15

Homelite PS06258

TRIGGER LOCK

$

$

Not available

16

Homelite PS06259

TRIGGER

$1.49

$

In Stock, only 1 left!

0

17

Homelite PS01718

SPRING

$1.49

$

In Stock, only 2 left!

0

18

Homelite 986493001

COMPRESSION SPRING
(Superseded to 678252001)

$

$

Not available

19

Homelite 985835001

RING GUARD

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 986469001

THROTTLE CABLE ASSEMBLY
(Superseded to 308439001)

Note: (INC. KEY NO. 5)

$8.99

$

In Stock, only 1 left!

0

21

Homelite PA00249

FASTENER KIT (CS30 AND SS30)

$

$

Not available

22

Homelite 06542A

"D" HANDLE (CS30 AND SS30)
(Superseded to 308472001)

$

$

Not available

23

Homelite 81242

HEX NUT (1/4-20) (BC30)

Note: PURCHASE LOCALLY

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 84004

WASHER (BC30)
(Superseded to 678013001)

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 00422

HANDLE BAR CLAMP (BC30)
(Superseded to 099075001007)

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 82496

SCREW (1/4-20 X 1 in. HEX CAP)(BC30)

Note: PURCHASE LOCALLY

$

$

Not available

27

Homelite 82278

BOLT (1/4-20 X 1-1/2 in. HEX HD.) (BC30)

Note: PURCHASE LOCALLY

$1.49

$

Usually ships in 3-7 days

0

28

Homelite A08130

"J" HANDLE AND GRIP (BC30)
(Superseded to 308046009)

$15.99

$

Usually ships in 3-7 days

0

29

Homelite 83009

LOCK WASHER (BC30)

$4.99

$

Usually ships in 3-7 days

0

30

Homelite 944701

SHOULDER STRAP (BC30)
(Superseded to 308487001)

$6.99

$

Usually ships in 3-7 days

0

31

Homelite PS02155

HANGER CAP
(Superseded to 518019004)

$1.49

$

In Stock, only 2 left!

0

Homelite 983000772

OPERATOR'S MANUAL

$

$

Not available

Homelite NLA

REPAIR SHEET (REV:05)

$

$

Currently unavailable
