RY 30060 B - Ryobi Brush Cutter, 30cc Lower Boom Assembly Parts Diagram

Brush Cutter, 30cc

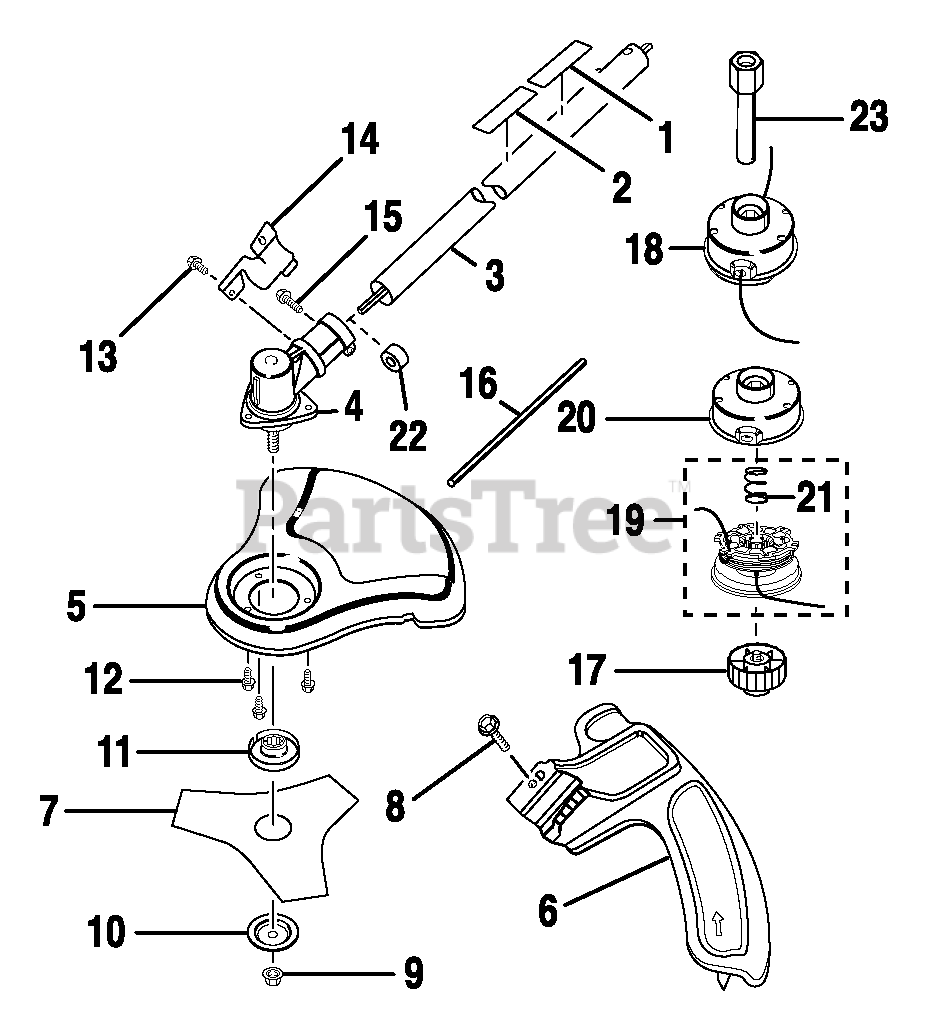

Lower Boom Assembly Parts Diagram

  • Title

1

Homelite 985165001

Expand-it Label

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 984102002

Brushcutter Safety Label

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 985390001

Straight Shaft Assy
(Superseded to 000998241)

$

$

Not available

4

Homelite PA01364

Gear Head
(Superseded to 308210008)

$

$

Not available

5

Homelite PS03538

Brushcutter Guard
(Superseded to 638120001)

$

$

Not available

6

Homelite 984443004

Grass Deflector Assy
(Superseded to 308252001)

$

$

Not available

7

Homelite 06297

Tri-Arc ® Blade
(Superseded to 638006004)

Note: (Retail #AP04105 - Purchase Locally)

$24.99

$

In Stock, only 2 left!

0

8

Homelite 983379078

Screw (1/4-20 x 1-1/4 in.)

$

$

Not available

9

Homelite 04277

Lock Nut
(Superseded to 678018001)

$

$

Not available

10

Homelite 04409

Cupped Washer

$4.99

$

In Stock, only 2 left!

0

11

Homelite 04168A

Flanged Washer
(Superseded to 099078001005)

$12.99

$

Usually ships in 3-7 days

0

12

Homelite 88049

Screw (10-24 x 1/2 in.)

$

$

Not available

13

Homelite 983774003

Screw (10-24 x 5/8 in.)

$2.49

$

In Stock, Qty 5

0

14

Homelite PS04420

Clamp

$5.49

$

In Stock, only 2 left!

0

15

Homelite 983381007

Screw (1/4-20 x 1-1/4 in.)

$2.49

$

In Stock, Qty 5

0

16

Homelite 00063

Holding Pin
(Superseded to 099078001040)

$2.49

$

In Stock, only 3 left!

0

17

Homelite A97910A

Spool Retainer (Red)
(Superseded to 308042003)

Note: (Retail #AP04103 - Purchase Locally)

$8.49

$

In Stock, Qty 5

0

18

N/A

Complete String Head (.095 in.)

Note: (Retail #AP04116 - Purchase Locally)

$

$

Not available

19

N/A

Spool and String (.095 in.) w/Spring

Note: (Includes Key No. 21);(Retail #AR04118 - Purchase Locally)

$

$

Not available

20

Homelite A98231A

Housing and Eyelet
(Superseded to 099068001005)

$

$

Not available

21

Homelite 06713

Spring

$2.49

$

In Stock, only 3 left!

0

22

Homelite 985625001

Spacer
(Superseded to 518367001)

$2.49

$

In Stock, only 3 left!

0

23

Homelite PS04438

Shaft Adapter
(Superseded to 678019002)

$

$

Not available
