RY 30130 - Ryobi String Trimmer with Expand-It Edger Attachment, 30cc String Trimmer Assembly Parts Diagram

String Trimmer with Expand-It Edger Attachment, 30cc

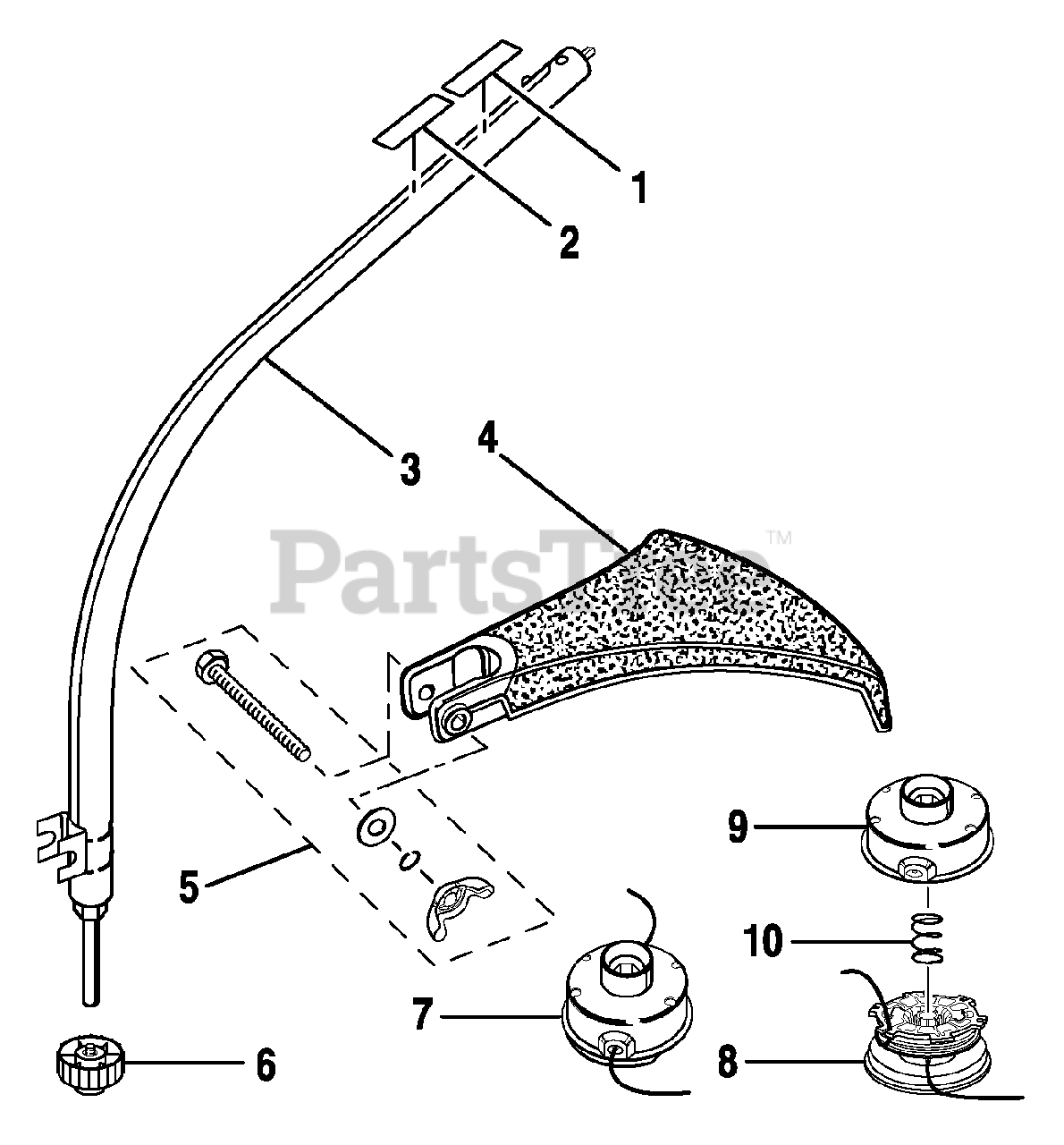

String Trimmer Assembly Parts Diagram

  • Title

1

Homelite 940627024

Expand-it Label
(Superseded to 985165001)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 940230132

Warning Decal
(Superseded to 984032001)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 000998239

Curved Shaft Assembly

$

$

Not available

4

Homelite 308052001

Grass Deflector
(Superseded to T308744001)

$

$

Not available

5

Homelite 120650001

Fastener Kit
(Superseded to PA00249)

$

$

Not available

6

Homelite 308042002

Spool Retainer (Black)

$

$

Not available

7

Homelite 000998230

Complete String Head (.080 in.)

$

$

Not available

8

Homelite 308044002

Spool and String (.080 in.) w/Spring

$

$

Not available

9

Homelite 308043001

Housing and Eyelet
(Superseded to 099068001005)

$

$

Not available

10

Homelite 678022001

Compression Spring
(Superseded to 099068001004)

$1.49

$

In Stock, only 4 left!

0
