RY 30140 - Ryobi String Trimmer, 30cc Upper Boom / Handle Assembly Parts Diagram

String Trimmer, 30cc

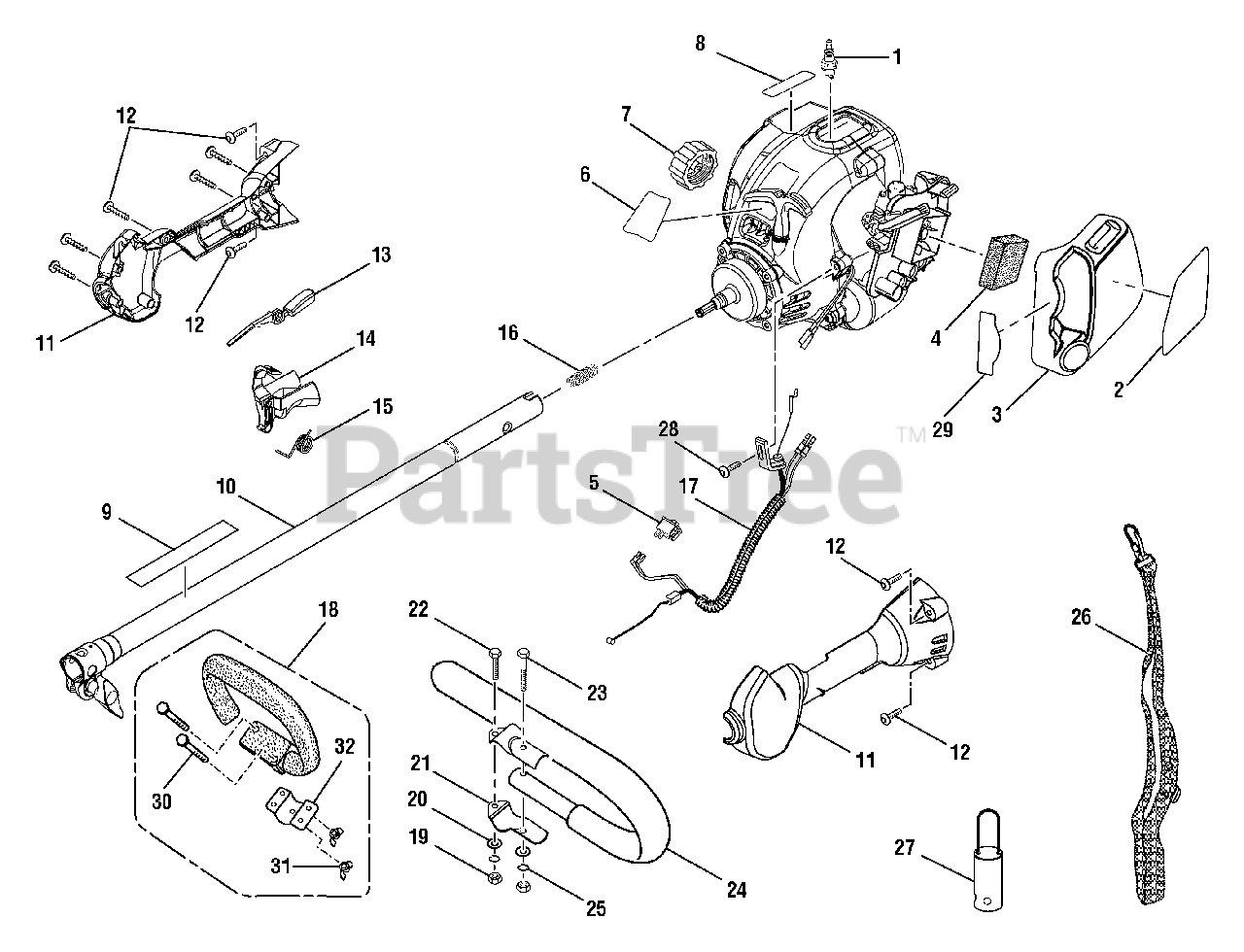

Upper Boom / Handle Assembly Parts Diagram

  • Title

1

Homelite 870170001

SPARK PLUG (CHAMPION RCJ4)

Note: PURCHASE LOCALLY FROM RETAILER WHERE UNIT WAS PURCHASED.

$10.99

$

Usually ships in 3-7 days

0

2

Homelite 940967004

STARTING LABEL

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 518096001

AIR BOX COVER

$

$

Not available

4

Homelite 900952001

AIR FILTER ELEMENT
(Superseded to 98760)

$1.49

$

In Stock, Qty 7

0

5

Homelite 760363002

SWITCH (MOMENTARY CONTACT)
(Superseded to PS02764)

$

$

Not available

6

Homelite 940627021

MODEL LABEL (CS30)
(Superseded to 985162001)

$1.49

$

Usually ships in 3-7 days

0

Homelite 940627022

MODEL LABEL (SS30)
(Superseded to 985163001)

$

$

Not available

Homelite 940627023

MODEL LABEL (BC30)
(Superseded to 985164001)

$

$

Not available

7

Homelite 300758006

FUEL CAP ASSEMBLY

$

$

Not available

8

Homelite 940299600

LOGO PLATE
(Superseded to 985157001)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 940230132

WARNING DECAL (CS30 AND SS30)
(Superseded to 984032001)

$1.49

$

Usually ships in 3-7 days

0

Homelite 940627027

WARNING DECAL (BC30)
(Superseded to 984102002)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 000998237

UPPER BOOM ASSEMBLY (CS30 AND SS30)
(Superseded to 000998353)

$

$

Not available

Homelite 000998238

UPPER BOOM ASSEMBLY UPPER (BC30)
(Superseded to 000998354)

$

$

Not available

11

Homelite 000998236

CONTROL HANDLE ASSEMBLY

$

$

Not available

12

Homelite 660618002

SCREW (10-14 X 1 in.)
(Superseded to 82589)

Note: PURCHASE LOCALLY FROM RETAILER WHERE UNIT WAS PURCHASED.

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 518011002

TRIGGER LOCK
(Superseded to PS06258)

$

$

Not available

14

Homelite 518012002

TRIGGER
(Superseded to PS06259)

$1.49

$

In Stock, only 1 left!

0

15

Homelite 678021001

TORSION SPRING
(Superseded to PS01718)

$1.49

$

In Stock, only 2 left!

0

16

Homelite 678252001

COMPRESSION SPRING

$

$

Not available

17

Homelite 308439001

THROTTLE AND LEAD ASSEMBLY

$8.99

$

In Stock, only 1 left!

0

18

Homelite 308472001

FRONT HANDLE ASSEMBLY (CS30 AND SS30)

$

$

Not available

19

Homelite 678016001

HEX NUT (1/4-20) (BC30)
(Superseded to 81242)

Note: PURCHASE LOCALLY FROM RETAILER WHERE UNIT WAS PURCHASED.

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 678013001

WASHER (BC30)

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 638014001

HANDLE BAR CLAMP (BC30)
(Superseded to 099075001007)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 660643002

BOLT (1/4-20 X 1 in. HEX HD.) (BC30)
(Superseded to 82496)

Note: PURCHASE LOCALLY FROM RETAILER WHERE UNIT WAS PURCHASED.

$

$

Not available

23

Homelite 660643001

BOLT (1/4-20 X 1-1/2 in. HEX HD.) (BC30)

Note: PURCHASE LOCALLY FROM RETAILER WHERE UNIT WAS PURCHASED.

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 308046001

"J" HANDLE AND GRIP (BC30)
(Superseded to A08130)

$15.99

$

Usually ships in 3-7 days

0

25

Homelite 678012001

LOCK WASHER (BC30)
(Superseded to 83009)

$4.99

$

Usually ships in 3-7 days

0

26

Homelite 308487001

SHOULDER STRAP (BC30)

$6.99

$

Usually ships in 3-7 days

0

27

Homelite 518019001

HANGER CAP
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

28

Homelite 660616001

SCREW (10-24 X 7/8 in.)

Note: PURCHASE LOCALLY FROM RETAILER WHERE UNIT WAS PURCHASED.

$

$

Not available

29

Homelite 940330006

CHOKE LABEL

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 660881001

BOLT (M5 X 30 mm HEX HD.) (CS30 AND SS30)

Note: PURCHASE LOCALLY FROM RETAILER WHERE UNIT WAS PURCHASED.

$

$

Not available

31

Homelite 678256001

WING NUT (M5)

Note: PURCHASE LOCALLY FROM RETAILER WHERE UNIT WAS PURCHASED

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 638008001

HANDLE BAR CLAMP (CS30 AND SS30)
(Superseded to 984251001)

$6.49

$

Usually ships in 3-7 days

0

Homelite 983000855

OPERATOR'S MANUAL (960085001)

$

$

Not available

Homelite NLA

REPAIR SHEET (REV:02) (940627026)

$

$

Currently unavailable
