RY 30524 - Ryobi String Trimmer, 30cc Figure A Parts Diagram

String Trimmer, 30cc

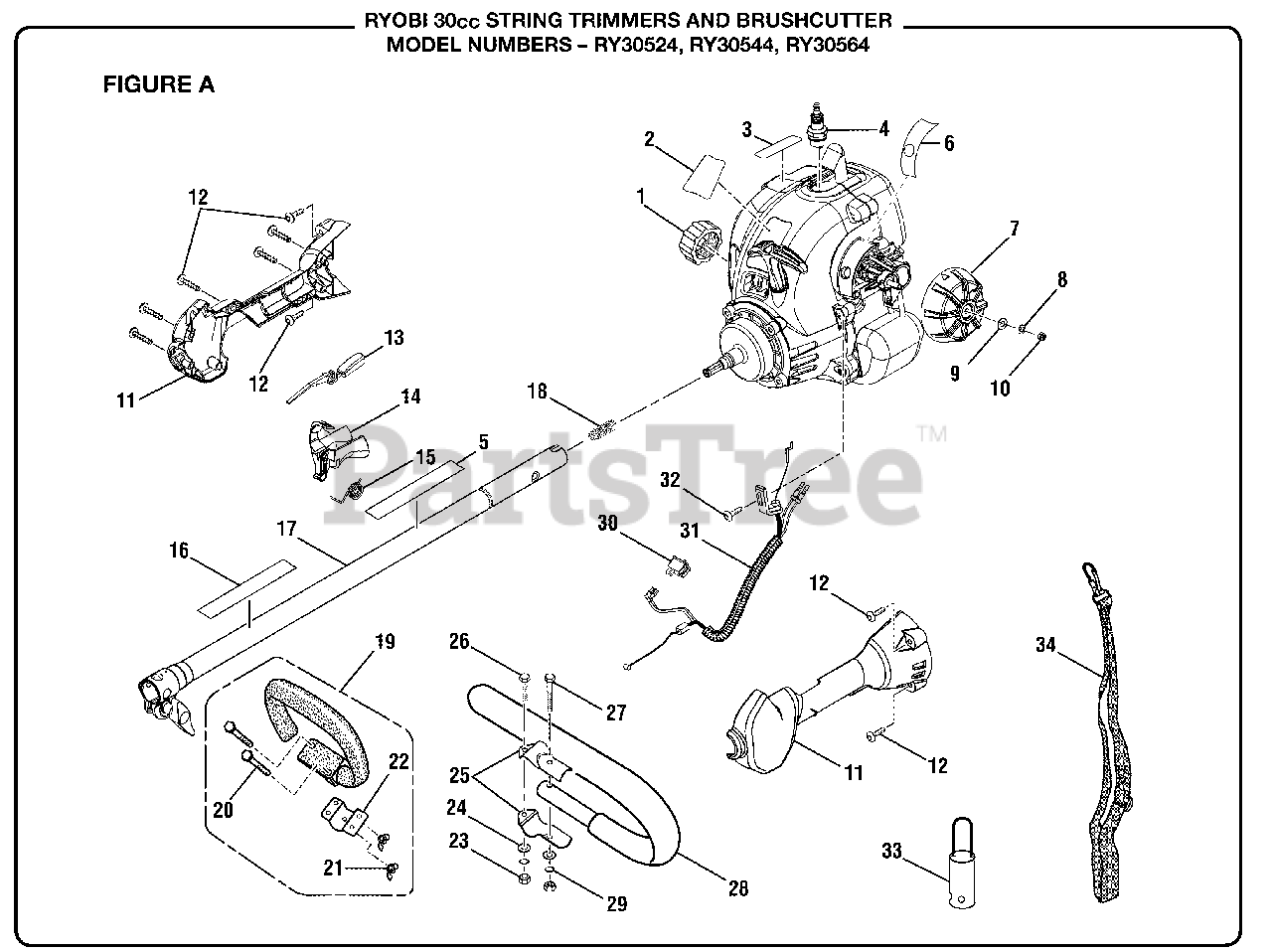

Figure A Parts Diagram

  • Title

1

Homelite 300758006

Fuel Cap Assembly

$

$

Not available

2

Homelite 940627021

Model Label (CS30)
(Superseded to 985162001)

$1.49

$

Usually ships in 3-7 days

0

Homelite 940627022

Model Label (SS30)
(Superseded to 985163001)

$

$

Not available

Homelite 940627023

Model Label (BC30)
(Superseded to 985164001)

$

$

Not available

3

Homelite 940299600

Logo Label
(Superseded to 985157001)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 870174001

Spark Plug

Note: (Champion RCJ6Y); Purchase locally from retailer where unit was purchased.

$4.99

$

In Stock, Qty 20+

0

5

Homelite 940967004

Starting Label

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 940330006

Choke Label

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 518496002

Choke Dial Cover

$3.99

$

In Stock, only 1 left!

0

8

Homelite 678434002

Wavy Washer

$1.49

$

In Stock, only 2 left!

0

9

Homelite 678434001

Flat Washer

$

$

Not available

10

Homelite 678435001

Hex Nut (M4)

Note: Purchase locally from retailer where unit was purchased.

$

$

Not available

11

Homelite 000998236

Control Handle Assembly

$

$

Not available

12

Homelite 660618002

Screw (10-14 x 1 in.)
(Superseded to 82589)

Note: Purchase locally from retailer where unit was purchased.

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 518011002

Trigger Lock
(Superseded to PS06258)

$

$

Not available

14

Homelite 518012002

Trigger
(Superseded to PS06259)

$1.49

$

In Stock, only 1 left!

0

15

Homelite 678021001

Torsion Spring
(Superseded to PS01718)

$1.49

$

In Stock, only 2 left!

0

16

Homelite 940230132

Warning Decal (CS30 and SS30)
(Superseded to 984032001)

$1.49

$

Usually ships in 3-7 days

0

Homelite 940627027

Warning Decal (BC30)
(Superseded to 984102002)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 000998353

Upper Boom Assembly (CS30 and SS30)

$

$

Not available

Homelite 000998354

Upper Boom Assembly (BC30)

$

$

Not available

18

Homelite 678252001

Compression Spring

$

$

Not available

19

Homelite 308472001

Front Handle Assembly (CS30 and SS30)

$

$

Not available

20

Homelite 660881001

Bolt (M5 x 30 mm Hex Hd.) (CS30 and SS30)

Note: Purchase locally from retailer where unit was purchased.

$

$

Not available

21

Homelite 678256001

Wing Nut (M5)

Note: Purchase locally from retailer where unit was purchased.

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 638008001

Handle Bar Clamp (CS30 and SS30)
(Superseded to 984251001)

$6.49

$

Usually ships in 3-7 days

0

23

Homelite 678016001

Hex Nut (1/4-20) (BC30)
(Superseded to 81242)

Note: Purchase locally from retailer where unit was purchased.

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 678013001

Washer (BC30)

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 638014001

Handle Bar Clamp (BC30)
(Superseded to 099075001007)

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 660643002

Bolt (1/4-20 x 1 in Hex Hd.) (BC30)
(Superseded to 82496)

Note: Purchase locally from retailer where unit was purchased.

$

$

Not available

27

Homelite 660643001

Bolt (1/4-20 x 1-1/2 in Hex Hd.) (BC30)

Note: Purchase locally from retailer where unit was purchased.

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 308046001

"J" Handle and Grip (BC30)
(Superseded to A08130)

$15.99

$

Usually ships in 3-7 days

0

29

Homelite 678012001

Lock Washer (BC30)
(Superseded to 83009)

$4.99

$

Usually ships in 3-7 days

0

30

Homelite 760363002

Switch (Momentary Contact)
(Superseded to PS02764)

$

$

Not available

31

Homelite 308439001

Throttle and Lead Assembly

$8.99

$

In Stock, only 1 left!

0

32

Homelite 660616001

Screw (10-24 x 7/8 in.)

Note: Purchase locally from retailer where unit was purchased.

$

$

Not available

33

Homelite 518019001

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

34

Homelite 308487001

Shoulder Strap (BC30)

$6.99

$

Usually ships in 3-7 days

0

Homelite 987000116

Operator's Manual

$

$

Not available
