RY 34005 - Ryobi String Trimmer Powerhead, 30cc Figure B Parts Diagram

String Trimmer Powerhead, 30cc

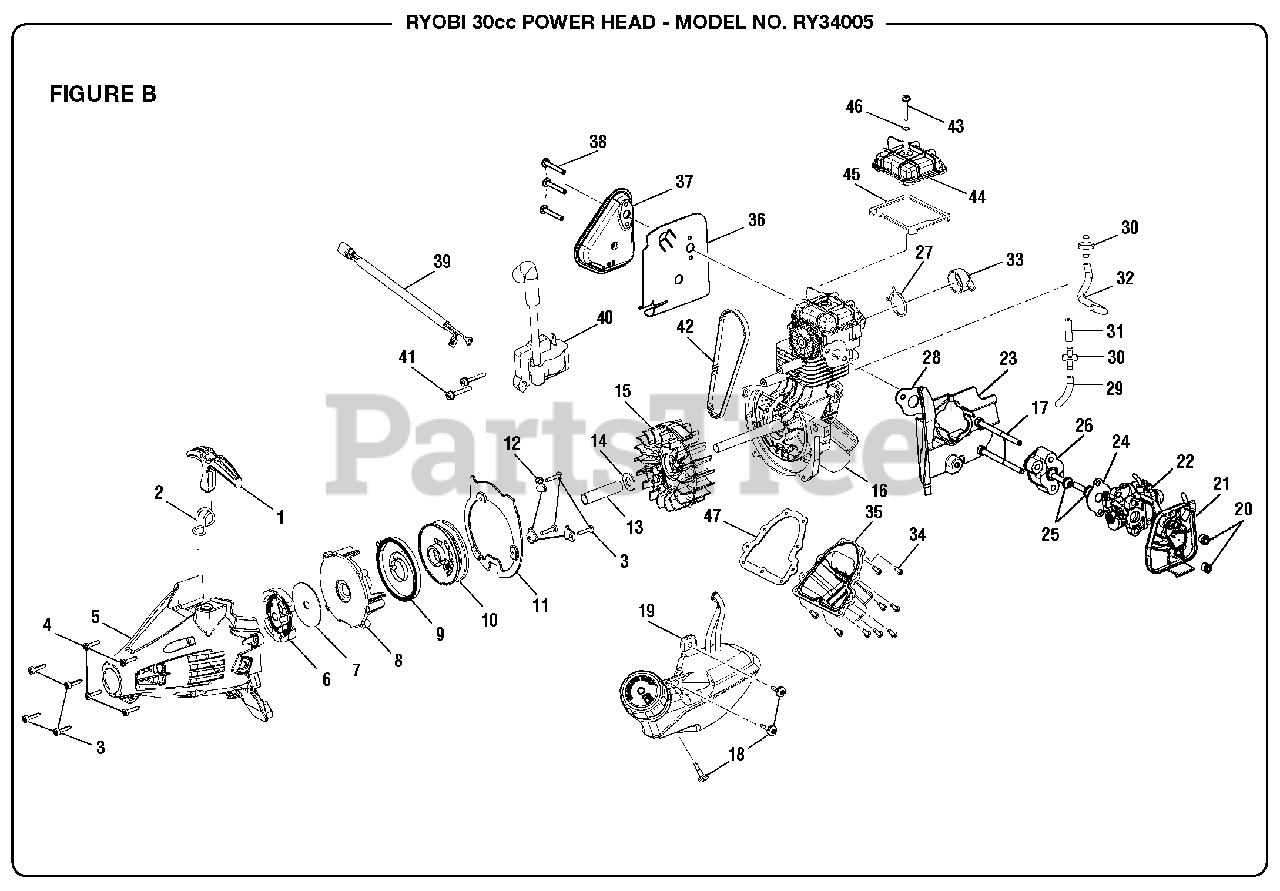

Figure B Parts Diagram

  • Title

1

Homelite 511731004

Starter Grip

$1.49

$

In Stock, Qty 7

0

2

Homelite 900849002

Starter Rope (42 in)

$1.49

$

In Stock, only 4 left!

0

3

Homelite 660466001

Screw (M4 x 18 mm)

$1.49

$

In Stock, only 2 left!

0

4

Homelite 660970001

Screw (M4 x 16 mm)

$1.49

$

In Stock, only 1 left!

0

5

Homelite 310304001

Starter Housing Assembly

$28.99

$

Usually ships in 3-7 days

0

6

Homelite 300960002

Clutch Assembly

$6.49

$

Usually ships in 3-7 days

0

7

Homelite 638090001

Washer

$1.49

$

In Stock, Qty 5

0

8

Homelite 518994001

Starter Baffle

$3.99

$

In Stock, only 2 left!

0

9

Homelite 638033001

Spring & Container

$3.49

$

In Stock, only 1 left!

0

10

Homelite 521519001

Starter Pulley

$2.99

$

In Stock, Qty 14

0

11

Homelite 518996001

Air Dam

$1.49

$

In Stock, only 4 left!

0

12

Homelite 638389001

Pulley Retainer

$1.49

$

In Stock, only 4 left!

0

13

Homelite 638284002

Spacer Tube

$

$

Not available

14

Homelite 650017001

Washer
(Superseded to PS05268)

$1.49

$

In Stock, only 1 left!

0

15

Homelite 309011001

Flywheel Assembly

$14.99

$

Usually ships in 3-7 days

0

16

Homelite 309962004

Short Block Assembly

$

$

Not available

17

Homelite 661509002

Bolt (M5 x 63 mm)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 660970002

Screw (M4)

$1.49

$

In Stock, Qty 9

0

19

Homelite 310585009

Fuel Tank & Cap Assembly
(Superseded to 310585012)

$

$

Not available

20

Homelite 678868001

Hex Nut (M5 x 0.8)

$1.49

$

In Stock, only 4 left!

0

21

Homelite 308398002

Air Filter Base

$3.49

$

In Stock, only 1 left!

0

22

Homelite 309370002

Carburetor Assembly
(Superseded to 309375002)

$

$

Not available

23

Homelite 521401002

Air Baffle

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 900809009

Carburetor Gasket

$3.49

$

In Stock, only 4 left!

0

25

Homelite 660629003

Screw (M5 x 23 mm)

$1.49

$

In Stock, only 1 left!

0

26

Homelite 521400001

Heat Dam

$3.99

$

Usually ships in 3-7 days

0

27

Homelite 678850001

Clamp

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 901657002

Heat Dam Gasket

$1.49

$

In Stock, only 2 left!

0

29

Homelite 570710002

Breather Hose

$1.49

$

In Stock, only 4 left!

0

30

Homelite 308826002

Check Valve

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 570710003

Breather Hose

$1.49

$

In Stock, only 1 left!

0

32

Homelite 570710004

Breather Hose

$1.49

$

In Stock, Qty 7

0

33

Homelite 570401002

Breather Fitting

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 660925003

Screw (M4 x 12 mm)

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 518924002

Oil Pan

$7.49

$

Usually ships in 3-7 days

0

36

Homelite 901702001

Muffler Gasket
(Superseded to 901702002)

$3.49

$

Usually ships in 3-7 days

0

37

Homelite 309320002

Muffler Assembly

$7.49

$

Usually ships in 3-7 days

0

38

Homelite 661143001

Muffler Bolt (M5 x 42 mm)

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 308863022

Electrical Lead Wire Assembly

$2.99

$

In Stock, only 1 left!

0

40

Homelite 309263002

Ignition Module

$16.99

$

Usually ships in 3-7 days

0

41

Homelite 660968001

Screw (M4 x 19 mm)

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 901656002

Timing Belt

$

$

Not available

43

Homelite 660780002

Screw (M4 x 27 mm Total, w/14 mm Threaded)

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 640306001

Cam Cover

$3.99

$

Usually ships in 3-7 days

0

45

Homelite 901705003

Gasket

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 570400002

O-Ring

$1.49

$

Usually ships in 3-7 days

0

47

Homelite 570709002

Gasket

$4.49

$

In Stock, only 1 left!

0
