RY 34007 (090432020) - Ryobi String Trimmer Powerhead, 30cc Figure C - Model RY34427 Parts Diagram

String Trimmer Powerhead, 30cc

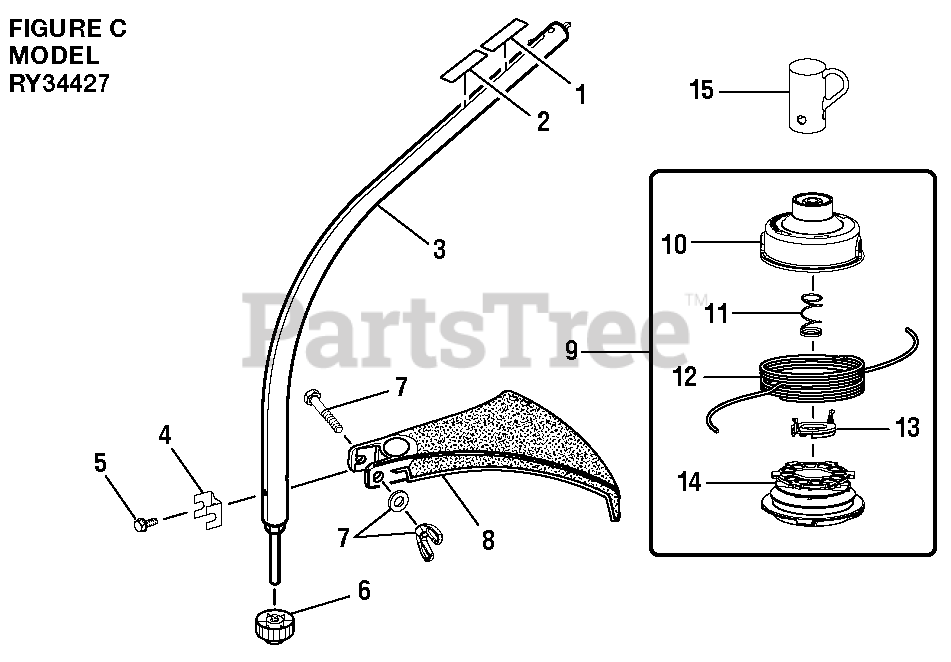

Figure C - Model RY34427 Parts Diagram

  • Title

1

Homelite 940726013

Logo Label

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 940657165

Warning Decal

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 307486001

Curved Shaft Assembly

Note: (Inc. Key Nos. 1-2, 4-5 and 15)

$

$

Not available

4

Homelite 638001001

Clamp

$1.49

$

In Stock, only 2 left!

0

5

Homelite 660647001

Screw (10-32 x 3/8 in., Hex Hd.)

$1.49

$

In Stock, only 2 left!

0

6

Homelite 308042002

Spool Retainer (Black)

$

$

Not available

7

Homelite 120642003

Fastener Kit

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 308052001

Grass Deflector
(Superseded to T308744001)

$

$

Not available

9

Homelite 309562008

Reel Easy String Cutting Head Assembly

Note: (Inc. Key Nos. 10-14)

$

$

Not available

10

Homelite 310643005

Main Housing

$3.49

$

In Stock, only 1 left!

0

11

Homelite 679958001

Compression Spring

$1.49

$

In Stock, only 4 left!

0

12

Cutting Line (0.095 Dia.)

Note: Standard Hardware Item - May Be Purchased Locally

$

$

Not available

13

Homelite 526939001

Spool Cover

$1.49

$

In Stock, only 2 left!

0

14

Homelite 527780001

Spool

$3.49

$

Usually ships in 3-7 days

0

15

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0
