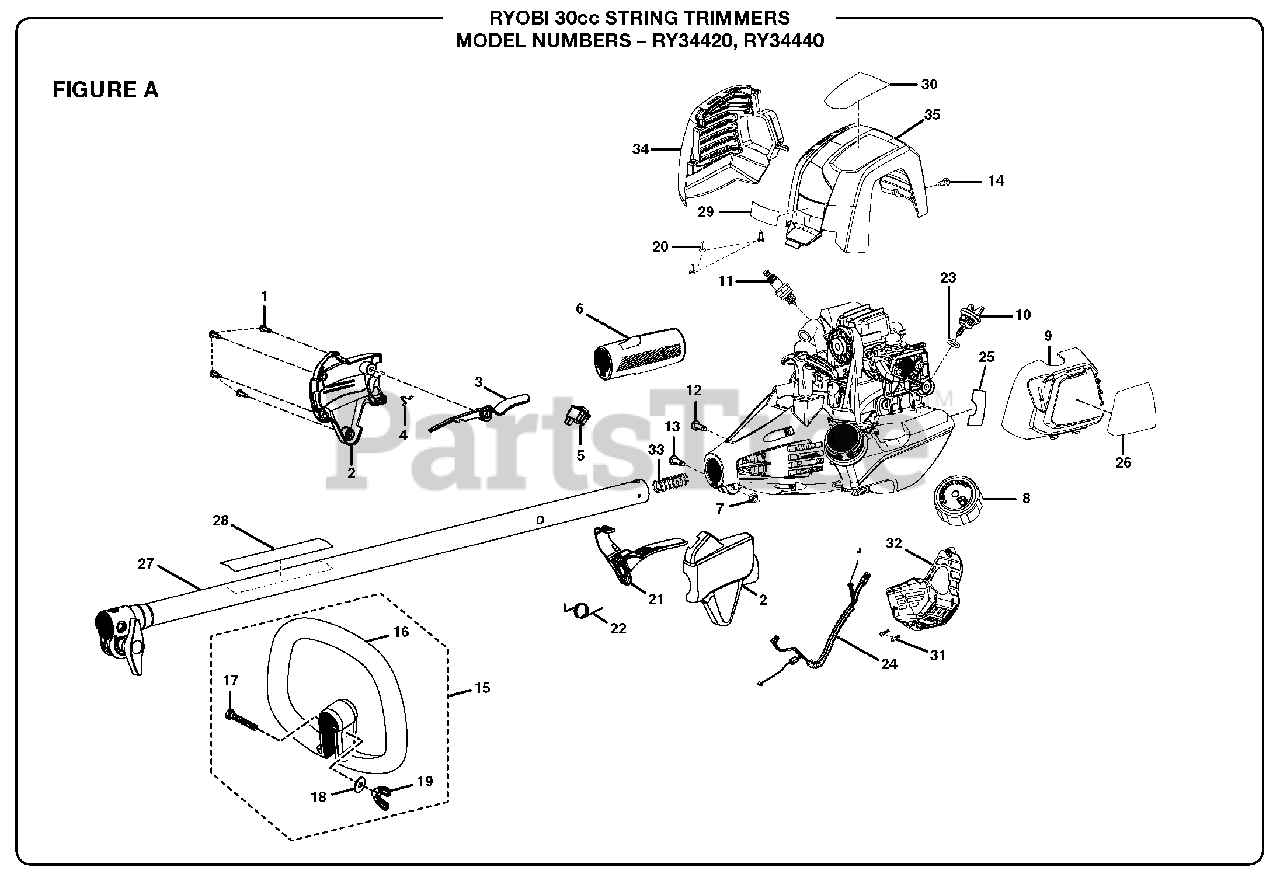

RY 34420 - Ryobi String Trimmer, 30cc Figure A Parts Diagram

String Trimmer, 30cc

Figure A Parts Diagram

  • Title

1

Homelite 660563002

Screw (M4 x 20 mm)

$1.49

$

In Stock, Qty 6

0

2

Homelite 120950026

Control Handle Assembly

$2.49

$

In Stock, only 1 left!

0

3

Homelite 518695002

Trigger Lock

$1.49

$

In Stock, only 1 left!

0

4

Homelite 638431001

Strap Hanger

$1.49

$

In Stock, only 2 left!

0

5

Homelite 760700002

Switch (Momentary Contact)
(Superseded to 760700001)

$2.99

$

In Stock, Qty 5

0

6

Homelite 570234002

Rear Handle
(Superseded to 570234010)

$2.99

$

In Stock, only 2 left!

0

7

Homelite 678029002

Hex Nut (M6.3 x 1)

$1.49

$

In Stock, Qty 9

0

8

Homelite 310586001

Fuel Cap Assembly
(Superseded to 310816006)

$3.99

$

In Stock, only 4 left!

0

9

Homelite 518959001

Air Box Cover

$1.99

$

In Stock, only 3 left!

0

10

Homelite 310302001

Oil Cap/Dipstick

Note: (Incl. Key No. 23)

$1.49

$

In Stock, only 2 left!

0

11

Homelite 870217001

Spark Plug (Champion RZ7C)
(Superseded to 870301002)

$8.49

$

Usually ships in 3-7 days

0

12

Homelite 660634001

Screw (#8-16 x 5/16 in.)

$1.49

$

In Stock, Qty 20+

0

13

Homelite T660697001

Bolt (M6 x 1 x 30 mm)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 660510005

Screw (M5 x 11 mm)

$

$

Not available

15

Homelite 308991001

Front Handle Assembly

Note: (Incl. Key No. 16-19)

$

$

Not available

16

Homelite 518738001

Front Handle

$

$

Not available

17

Homelite 660643008

Bolt (1/4-20 x 40 mm)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 678008001

Washer (1/4 in.)

$1.49

$

In Stock, only 1 left!

0

19

Homelite 518949001

Wing Nut (1/4-20)
(Superseded to PS02453)

$1.49

$

In Stock, only 3 left!

0

20

Homelite 660466002

Screw (M4 x 12 mm)

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 518696002

Throttle Trigger

$

$

Not available

22

Homelite 690694002

Throttle Trigger Spring

$1.49

$

In Stock, Qty 5

0

23

Homelite 570400001

O-Ring

$1.49

$

In Stock, Qty 5

0

24

Homelite 308439014

Throttle Cable and Lead Assembly

Note: (Incl. Key No. 5)

$6.49

$

In Stock, only 1 left!

0

25

Homelite 940680023

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 940734040

Starting Label

$

$

Not available

27

Homelite 120950028

Upper Boom Assembly
(Superseded to 308470056)

Note: (Incl. Key No. 28)

$20.99

$

Usually ships in 3-7 days

0

28

Homelite 940230132

Warning Label
(Superseded to 984032001)

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 940705020

Logo Label

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 940991026

C430 Label (RY34420)

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 940991027

S430 Label (RY34440)

$1.49

$

In Stock, only 4 left!

0

31

Homelite T660619001

Screw (#6-19 x 1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 518548001

CE Cover (Bottom Cover)

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 690140011

Compression Spring
(Superseded to 06713)

$1.49

$

In Stock, only 2 left!

0

34

Homelite 518995001

Muffler Housing

$3.99

$

Usually ships in 3-7 days

0

35

Homelite 518142003

Top Cover

$5.49

$

Usually ships in 3-7 days

0

35

Homelite 987000405

Operator's Manual (960646002)

$

$

Not available
