RY 3714 (090382009) - Ryobi Chainsaw, 37cc, Rev 01 (2020-02) Figure A Parts Diagram

Chainsaw, 37cc, Rev 01

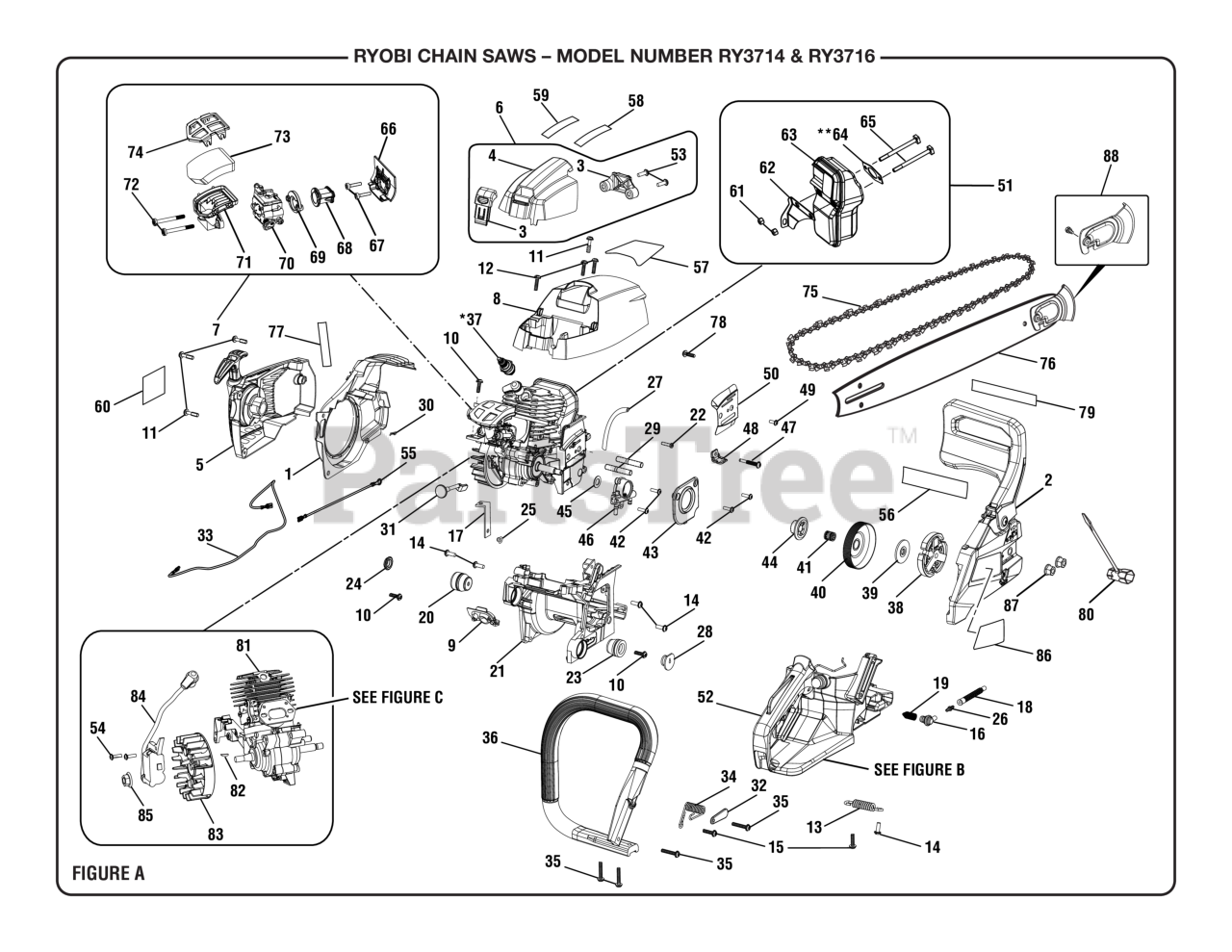

Figure A Parts Diagram

  • Title

1

Homelite 533483001

Cylinder Baffle

$5.99

$

Usually ships in 3-7 days

0

2

Homelite 313866003

Clutch Cover Assembly

Note: (RY3714, Inc. Key Nos. 56 & 79)

$73.99

$

Usually ships in 3-7 days

0

3

Homelite 314046001

Carburetor Cover Latch and Bracket Assembly

$4.99

$

Usually ships in 3-7 days

0

4

Homelite 532595001

Carburetor Cover Housing

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 313867001

Starter Housing Assembly

Note: (Inc. Key Nos. 60 & 77)

$26.99

$

In Stock, only 2 left!

0

6

Homelite 313868001

Carburetor Cover Assembly

Note: (Inc. Key Nos. 58-59)

$11.99

$

In Stock, only 2 left!

0

7

Homelite 311457003

Intake Assembly

$105.99

$

Usually ships in 3-7 days

0

8

Homelite 313869001

Cylinder Housing Assembly

Note: (Inc. Key No. 57)

$10.99

$

Usually ships in 3-7 days

0

9

Homelite 518417001

Throttle Rod Grommet

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 660918003

Screw (M5 x 16 mm, T25 Torx Pan Hd.)

$2.49

$

In Stock, only 3 left!

0

11

Homelite 660637001

Screw, Truss Hd., Plastite (10-14 x 7/8")
(Superseded to 82620)

$2.49

$

In Stock, Qty 10

0

12

Homelite 660918001

Screw (M5 x 14 mm, T25 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 678321001

Damper Spring

$2.49

$

In Stock, Qty 9

0

14

Homelite 660917002

Screw (M5 x 0.8 mm, T25 Torx Pan Hd.)

$2.49

$

In Stock, only 4 left!

0

15

Homelite 660918004

Screw (M5 x 14 mm, T25 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 561421001

Oil Filter Grommet

$2.49

$

In Stock, only 3 left!

0

17

Homelite 901376002

Band Stopper

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 561449001

Rubber, Pipe In Oil Pump

$2.49

$

In Stock, only 2 left!

0

19

Homelite 678407001

Cone Spring

$2.49

$

In Stock, Qty 10

0

20

Homelite 561428001

Rubber Damper

$2.49

$

In Stock, only 4 left!

0

21

Homelite 518442006

Engine Case

$20.99

$

Usually ships in 3-7 days

0

22

Homelite 518411001

Pin (Oil Pump Outlet)

$2.49

$

In Stock, only 4 left!

0

23

Homelite 561426001

Damper Rubber

$2.49

$

In Stock, only 3 left!

0

24

Homelite 518435001

Damper Cap.

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 678320001

Starter Case

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 518413001

Joint For Pipe In Comp

$2.49

$

In Stock, only 3 left!

0

27

Homelite 563968002

Oil Pump Rubber Tube (Outlet)

$4.99

$

In Stock, only 1 left!

0

28

Homelite 518434001

Damper Cap (T)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 660503006

Bar Stud (5/16-18 x 23.5 mm / 5/16-18 x 18 mm)

$2.49

$

In Stock, Qty 5

0

30

Homelite 631034001

Spring Clip (Choke Rod)
(Superseded to 08939)

$

$

Not available

31

Homelite 518415005

Choke Rod

$2.49

$

In Stock, only 3 left!

0

32

Homelite 678332001

Damper Plate

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 291894001

Lead Wire Assembly (Red)

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 678322001

Damper Spring

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 660918002

Screw (M5 x 27 mm, T25 Torx Pan Hd.)

$2.49

$

In Stock, Qty 8

0

36

Homelite 518691001

Front Handle

$29.99

$

In Stock, only 2 left!

0

37

Homelite 870174002

Spark Plug (Champion RCJ6Y)
(Superseded to 870170001)

Note: Standard Hardware Item - May Be Purchased Locally

$21.99

$

Usually ships in 3-7 days

0

38

Homelite 310535001

Clutch Assembly

$11.99

$

In Stock, only 2 left!

0

39

Homelite 678313002

Thrust Plate

$2.49

$

In Stock, only 3 left!

0

40

Homelite 309418001

Clutch Drum

$15.99

$

In Stock, only 2 left!

0

41

Homelite 681933001

Clutch Drum Needle Bearing

$2.49

$

In Stock, Qty 10

0

42

Homelite 660916003

Screw (M4 x 14 mm, T20 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 518414001

Oil Pump Cover

$2.49

$

In Stock, only 4 left!

0

44

Homelite 518865001

Oil Pump Drive Gear

$2.99

$

In Stock, Qty 5

0

45

Homelite 638289001

Washer (Oil Pump Drive Gear)

$2.49

$

In Stock, only 2 left!

0

46

Homelite 309516001

Oil Pump

$11.99

$

In Stock, only 2 left!

0

47

Homelite 660931001

Screw (M4 x 33 mm, T25 Torx Pan Hd.)

$2.49

$

Usually ships in 0 days

0

48

Homelite 631035004

Chain Catcher.

$2.49

$

In Stock, Qty 10

0

49

Homelite 660916001

Screw (M4 x 12 mm, T20 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 638309003

Chain Guard Plate.

$3.99

$

Usually ships in 3-7 days

0

51

Homelite 311458001

Exhaust Assembly.

$110.99

$

Usually ships in 3-7 days

0

52

Homelite 307246005

Chassis & Handle Components

$78.99

$

Usually ships in 3-7 days

0

53

Homelite 660922001

Screw (M4 x 10 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

54

Homelite 660916003

Screw (M4 x 14 mm, T20 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

55

Homelite 291893001

Lead Wire Assembly (Black)

$2.49

$

Usually ships in 3-7 days

0

56

Homelite 941009059

Chain Brake Label (RY3714)

$2.49

$

Usually ships in 3-7 days

0

57

Homelite 941009044

Warning Label

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 941010023

Starting Label (Right)

$2.49

$

Usually ships in 3-7 days

0

59

Homelite 941010022

Starting Label (Left)

$2.49

$

Usually ships in 3-7 days

0

60

Homelite 941009046

Starting House Label (RY3818)

$2.49

$

Usually ships in 3-7 days

0

61

Homelite 678311001

Hex Nut (M5, Muffler)

$2.49

$

In Stock, only 4 left!

0

62

Homelite 638293004

Muffler Bracket

$2.49

$

In Stock, only 4 left!

0

63

Homelite 309377006

Muffler

$120.99

$

Usually ships in 3-7 days

0

64

Homelite 901380001

Gasket (Muffler)

Note: Non-Reuseable Parts

$2.49

$

In Stock, Qty 5

0

65

Homelite 660915001

Bolt (Muffler, M5 x 62 mm)

$2.49

$

Usually ships in 3-7 days

0

66

Homelite 518864003

Heat Dam

$2.49

$

In Stock, Qty 10

0

67

Homelite 662395001

Bolt (M9 x 19 mm, T25 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

68

Homelite 570243003

Intake Boot

$13.99

$

In Stock, only 2 left!

0

69

Homelite 678694002

Intake Bracket

$3.99

$

In Stock, only 4 left!

0

70

Homelite 308054203

Carburetor Assembly

$

$

Not available

71

Homelite 518465002

Air Box Base

$2.49

$

In Stock, Qty 5

0

72

Homelite 660454015

Screw (M5 x 44 mm,T25 Torx Hd. Carburetor)

$2.49

$

In Stock, Qty 6

0

73

Homelite 560873013

Foam Air Filter

$2.49

$

In Stock, only 3 left!

0

74

Homelite 534173001

Air Filter Retainer

$2.49

$

In Stock, only 3 left!

0

75

Homelite 901212004

14 in. Chain (RY3714, 52 Drive Link)

$

$

Not available

76

Homelite 311482001

14 in. Guide Bar Assembly (RY3714)
(Superseded to 311752001)

Note: (RY3714, Inc. Key No. 88)

$38.99

$

In Stock, only 1 left!

0

77

Homelite 940654088

Warning Label (Combustion)

$2.49

$

Usually ships in 3-7 days

0

78

Homelite 660917002

Screw (M5 x 0.8 mm, T25 Torx Pan Hd.)

$2.49

$

In Stock, only 4 left!

0

79

Homelite 941009045

Pull To Release Brake Label

$2.49

$

In Stock, only 4 left!

0

80

Homelite 631055005

Combination Wrench

$6.99

$

In Stock, only 1 left!

0

81

Homelite 309893007

Short Block

$287.99

$

Usually ships in 3-7 days

0

82

Homelite 690688001

WOODRUFF KEY (10 mm X 3 mm)
(Superseded to 983784006)

$

$

Not available

83

Homelite 309001002

Flywheel Assembly

$13.99

$

Usually ships in 3-7 days

0

84

Homelite 309266003

Ignition Assembly

$

$

Not available

85

Homelite 690689001

Flange Nut (M8, Flywheel)
(Superseded to 6968901)

$

$

Not available

86

Homelite 941009075

Bar Cover Label

$2.49

$

Usually ships in 3-7 days

0

87

Homelite 678339003

Hex Nut (5/16-18 Flange)

$2.49

$

In Stock, Qty 8

0

88

Homelite 314926001

Bar Nose Kit

Note: (Incl. Key Nos. 89-90)

$4.99

$

Usually ships in 3-7 days

0

Homelite 995000483

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 580438012

14 in. Scabbard (RY3714)

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0

Homelite 308552006

Carrying Case

Note: Not Shown

$80.99

$

Usually ships in 3-7 days

0
