RY 3818 (090382001) - Ryobi Chainsaw, 38cc, Rev 04 (2018-05) General Assembly (Part 1) Parts Diagram

Chainsaw, 38cc, Rev 04

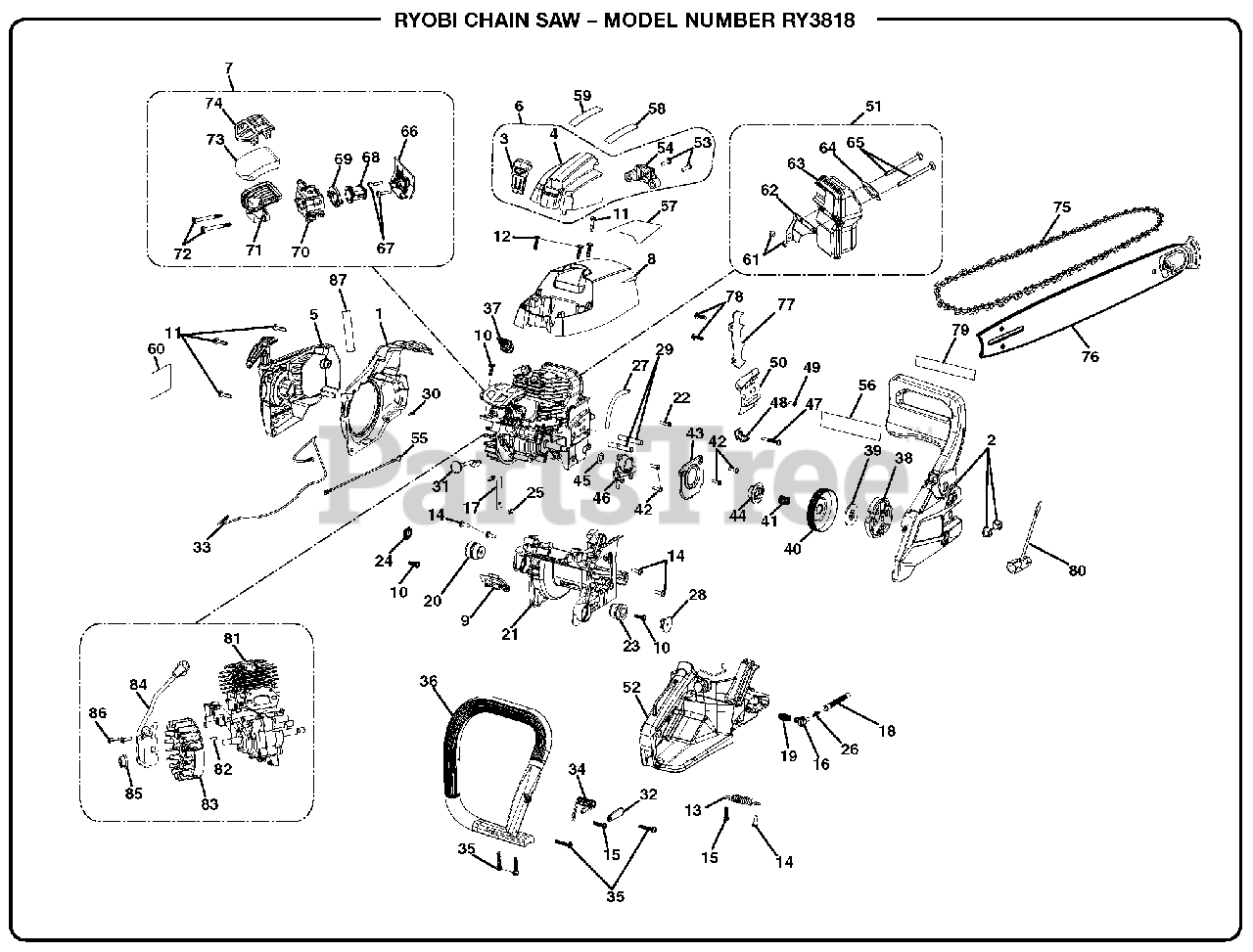

General Assembly (Part 1) Parts Diagram

  • Title

1

Homelite 533483001

Cylinder Baffle

$2.99

$

Usually ships in 3-7 days

0

2

Homelite 313866001

Clutch Cover Assembly

Note: (Inc. Key Nos. 56 & 79)

$20.99

$

Usually ships in 3-7 days

0

3

Homelite 533480001

Carburetor Cover Latch

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 532595001

Carburetor Cover Housing

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 313867001

Starter Housing Assembly

Note: (Inc. Key Nos. 60 & 87)

$9.49

$

In Stock, only 1 left!

0

6

Homelite 313868001

Carburetor Cover Assembly

Note: (Inc. Key Nos. 58-59)

$5.99

$

In Stock, only 3 left!

0

7

Homelite 311457003

Intake Assembly

$53.99

$

Usually ships in 3-7 days

0

8

Homelite 313869001

Cylinder Housing Assembly

Note: (Inc. Key No. 57)

$5.49

$

In Stock, only 1 left!

0

9

Homelite 518417001

Grommet

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 660918003

Screw (M5 x 16 mm, T25 Torx Pan Hd.)

$1.49

$

In Stock, only 4 left!

0

11

Homelite 660637001

Screw (M5 x 22 mm, T25 Torx Pan Hd.)
(Superseded to 82620)

$1.49

$

In Stock, Qty 5

0

12

Homelite 660918001

Screw (M5 x 14 mm, T25 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 678321001

Damper Spring

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 660917002

Screw (M5 x .8 mm, T25 Torx Pan Hd.)

$1.49

$

In Stock, Qty 6

0

15

Homelite 660918004

Screw (M5 x 14 mm, T25 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 561421001

Oil Filter Grommet

$1.49

$

In Stock, Qty 5

0

17

Homelite 901376002

Band Stopper

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 561449001

Pipe In Oil Pump Rubber

$1.49

$

In Stock, Qty 6

0

19

Homelite 678407001

Cone Spring

$1.49

$

In Stock, only 1 left!

0

20

Homelite 561428001

Rubber Damper

$1.49

$

In Stock, Qty 5

0

21

Homelite 518442006

Engine Case

$10.99

$

Usually ships in 3-7 days

0

22

Homelite 518411001

Pin (Oil Pump Outlet)

$1.49

$

In Stock, only 1 left!

0

23

Homelite 561426001

Damper Rubber

$1.49

$

In Stock, Qty 5

0

24

Homelite 518435001

Damper Cap

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 678320001

Eyelet

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 518413001

Joint For Pipe In Comp

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 563968002

Oil Pump Rubber Tube (Outlet)

$2.99

$

In Stock, only 1 left!

0

28

Homelite 518434001

Damper Cap (T)

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 660503006

Bar Stud (5/16-18 x 23.5 mm / 5/16-18 x 18 mm)

$1.49

$

In Stock, Qty 5

0

30

Homelite 631034001

Hair Pin
(Superseded to 08939)

$

$

Not available

31

Homelite 518415001

Choke Rod
(Superseded to 518415004)

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 678332001

Damper Plate

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 291894001

Lead Wire Assembly (Red)

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 678322001

Damper Spring

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 660918002

Screw (M5 x 27 mm, T25 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 518691001

Handle

$15.99

$

In Stock, only 1 left!

0

37

Homelite 870174005

Spark Plug (BOSCH/WSR6F)
(Superseded to 870174002)

Note: Standard Hardware Item - May Be Purchased Locally

$10.99

$

Usually ships in 3-7 days

0

38

Homelite 310535001

Clutch

$6.49

$

Usually ships in 3-7 days

0

39

Homelite 678313002

Thrust Plate

$1.49

$

In Stock, Qty 5

0

40

Homelite 309418001

Clutch Drum

$

$

Not available

41

Homelite 681933001

Clutch Drum Needle Bearing

$1.49

$

In Stock, only 2 left!

0

42

Homelite 660916003

Screw (M4 x 14 mm, T20 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 518414001

Oil Pump Cover

$1.49

$

In Stock, Qty 5

0

44

Homelite 518865001

Oil Pump Drive Gear

$1.49

$

In Stock, only 3 left!

0

45

Homelite 638289001

Washer (ID10.2 x OD18 x 1t)

$1.49

$

In Stock, Qty 5

0

46

Homelite 309516001

Oil Pump

$5.99

$

In Stock, only 2 left!

0

47

Homelite 660931001

Screw (M4 x 33 mm, T25 Torx Pan Hd.)

$

$

Currently unavailable

48

Homelite 631035004

Chain Catcher

$1.49

$

In Stock, only 3 left!

0

49

Homelite 660916001

Screw (M4 x 12 mm, T20 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

50

Homelite 638309003

Chain Guard Plate

$2.49

$

Usually ships in 3-7 days

0

51

Homelite 311458001

Exhaust Assembly

$55.99

$

Usually ships in 3-7 days

0

52

Homelite 307246005

Chassis & Handle Components

$39.99

$

Usually ships in 3-7 days

0

53

Homelite 660922001

Screw (M4 x 10 mm, T20 Torx Pan Hd.)

$1.49

$

In Stock, Qty 5

0

54

Homelite 534084001

Bracket Retainer Latch

$

$

Currently unavailable

55

Homelite 291893001

Lead Wire Assembly (Black)

$1.49

$

Usually ships in 3-7 days

0

56

Homelite 941009047

Chain Brake Label (RY3818)

$1.49

$

Usually ships in 3-7 days

0

57

Homelite 941009044

Warning Label

$1.49

$

Usually ships in 3-7 days

0

58

Homelite 941010023

Starting Label (Right)

$1.49

$

Usually ships in 3-7 days

0

59

Homelite 941010022

Starting Label (Left)

$1.49

$

Usually ships in 3-7 days

0

60

Homelite 941009046

Starting House Label (RY3818)

$1.49

$

Usually ships in 3-7 days

0

61

Homelite 678311001

Nut (M5, Muffler)

$1.49

$

In Stock, only 3 left!

0

62

Homelite 638293004

Muffler Bracket

$1.49

$

In Stock, only 2 left!

0

63

Homelite 309377002

Muffler
(Superseded to 309377006)

$60.99

$

Usually ships in 3-7 days

0

64

Homelite 901380001

Gasket (Muffler).

$1.49

$

In Stock, only 2 left!

0

65

Homelite 660917002

Screw (M5 x 14 mm, T25 Torx Pan Hd.)

$1.49

$

In Stock, Qty 6

0

66

Homelite 518864003

Heat Dam

$1.49

$

In Stock, Qty 5

0

67

Homelite 662395001

Bolt (M9 x 19 mm, T25 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

68

Homelite 570243003

Intake Boot

$7.49

$

Usually ships in 3-7 days

0

69

Homelite 678694002

Intake Bracket

$1.99

$

In Stock, only 3 left!

0

70

Homelite 308054203

Carburetor Assembly

$

$

Not available

71

Homelite 518465002

Air Box Base

$1.49

$

Usually ships in 3-7 days

0

72

Homelite 660454015

Screw (M5 x 44 mm,T25 Torx Hd. Carburetor)

$1.49

$

In Stock, only 4 left!

0

73

Homelite 560873013

Foam Air Filter

$1.49

$

In Stock, Qty 5

0

74

Homelite 534173001

Air Filter Retainer

$1.49

$

In Stock, Qty 5

0

75

Homelite 901361003

18 in. Chain (3/8LP, 62DL)

$

$

Not available

76

Homelite 312655001

18 in. Guide Bar Assembly

$

$

Not available

77

Homelite 631039002

Bucking Spike

$1.49

$

Usually ships in 3-7 days

0

78

Homelite 660917004

Screw (M5 x 11 mm., T25 Torx Pan Hd.)

$1.49

$

In Stock, Qty 11

0

79

Homelite 941009045

Pull To Release Brake Label

$1.49

$

In Stock, only 4 left!

0

80

Homelite 631055055

Combination Wrench

$

$

Currently unavailable

81

Homelite 309893007

Short Block

$100.99

$

Usually ships in 3-7 days

0

82

Homelite 690688001

Woodruff Key
(Superseded to 983784006)

$

$

Not available

83

Homelite 309001002

Flywheel Assembly

$13.99

$

Usually ships in 3-7 days

0

84

Homelite 309266003

Ignition Assembly

$

$

Not available

85

Homelite 690689001

Hex Flange Nut (M8)
(Superseded to 6968901)

$

$

Not available

86

Homelite 660916003

Screw (M4 x 14 mm, T20 Torx Hd.)

$1.49

$

Usually ships in 3-7 days

0

87

Homelite 940654088

Combustion Warning Label

$1.49

$

In Stock, only 3 left!

0

Homelite 995000353

Operator's Manual (9600873001)

Note: Not Shown

$

$

Not available

Homelite 308552005

Carrying Case

$

$

Not available

Homelite 580464001

18 in. Scabbard (RY3818)

$3.99

$

Usually ships in 3-7 days

0
