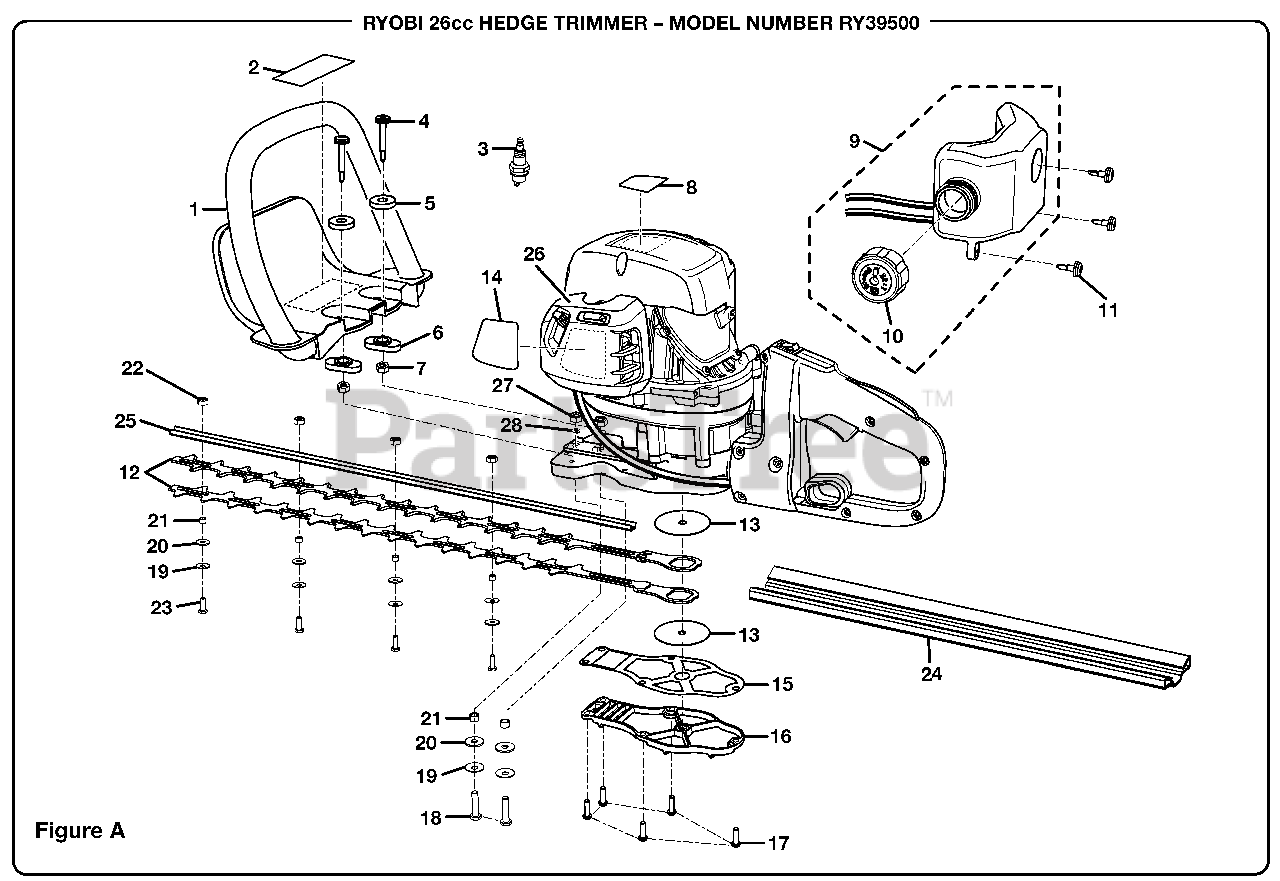

RY 39500 - Ryobi Hedge Trimmer, 26cc Figure A Parts Diagram

Hedge Trimmer, 26cc

Figure A Parts Diagram

  • Title

1

Homelite 120900035

Front Handle

Note: (Inc. Key No. 2)

$

$

Not available

2

Homelite 940964006

Warning Label

$

$

Not available

3

Homelite 870174001

Spark Plug

Note: (Champion RCJ6Y) Purchase locally

$4.99

$

In Stock, Qty 20+

0

4

Homelite 660788004

Screw

Note: (M5 x 26 mm) Purchase locally

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 561960001

Washer

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 561961001

Isolator

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 678509001

Lock Nut

Note: (M5 x 0.8 mm) Purchase locally

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 940640014

Logo Label

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 308675010

Fuel Tank Assembly
(Superseded to 308675052)

Note: (Inc. Key No. 10)

$

$

Not available

10

Homelite 308680001

Fuel Cap

$2.49

$

In Stock, only 1 left!

0

11

Homelite 660970002

Screw

Note: (M4)

$1.49

$

In Stock, only 4 left!

0

12

Homelite 308548011

Blade Assembly

$

$

Not available

13

Homelite 638659001

Washer

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 940686026

Starting Label
(Superseded to 940686150)

$1.49

$

In Stock, only 3 left!

0

15

Homelite 901659001

Seal

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 308233001

Cover

$5.99

$

Usually ships in 3-7 days

0

17

Homelite 660788003

Screw

Note: (M5 x 17.5 mm Washer Hd.) Purchase locally

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 660722002

Screw

Note: (M6 x 26 mm) Purchase locally

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 678433003

Washer

Note: Purchase locally

$1.49

$

In Stock, only 4 left!

0

20

Homelite 678587001

Washer

Note: Purchase locally

$1.49

$

In Stock, Qty 5

0

21

Homelite 638668001

Spacer

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 678490002

Lock Nut

Note: (M5)

$1.49

$

In Stock, only 4 left!

0

23

Homelite 660722001

Screw

Note: (M6 x 17 mm) Purchase locally

$1.49

$

In Stock, Qty 6

0

24

Homelite 518921002

Scabbard

$

$

Not available

25

Homelite 638665002

Blade Top Strap

$8.49

$

Usually ships in 3-7 days

0

26

Homelite 120900034

Air Box Cover
(Superseded to 518777001)

Note: (Inc. Key No. 14)

$1.99

$

In Stock, Qty 8

0

27

Homelite 678460002

Lock Nut

Note: (M6) Purchase locally

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 678433004

Spring Washer

$1.49

$

Usually ships in 3-7 days

0

Homelite 987000243

Operator's Manual

Note: (960713001)

$

$

Not available
