RY 39500 - Ryobi Hedge Trimmer, 26cc Figure B Parts Diagram

Hedge Trimmer, 26cc

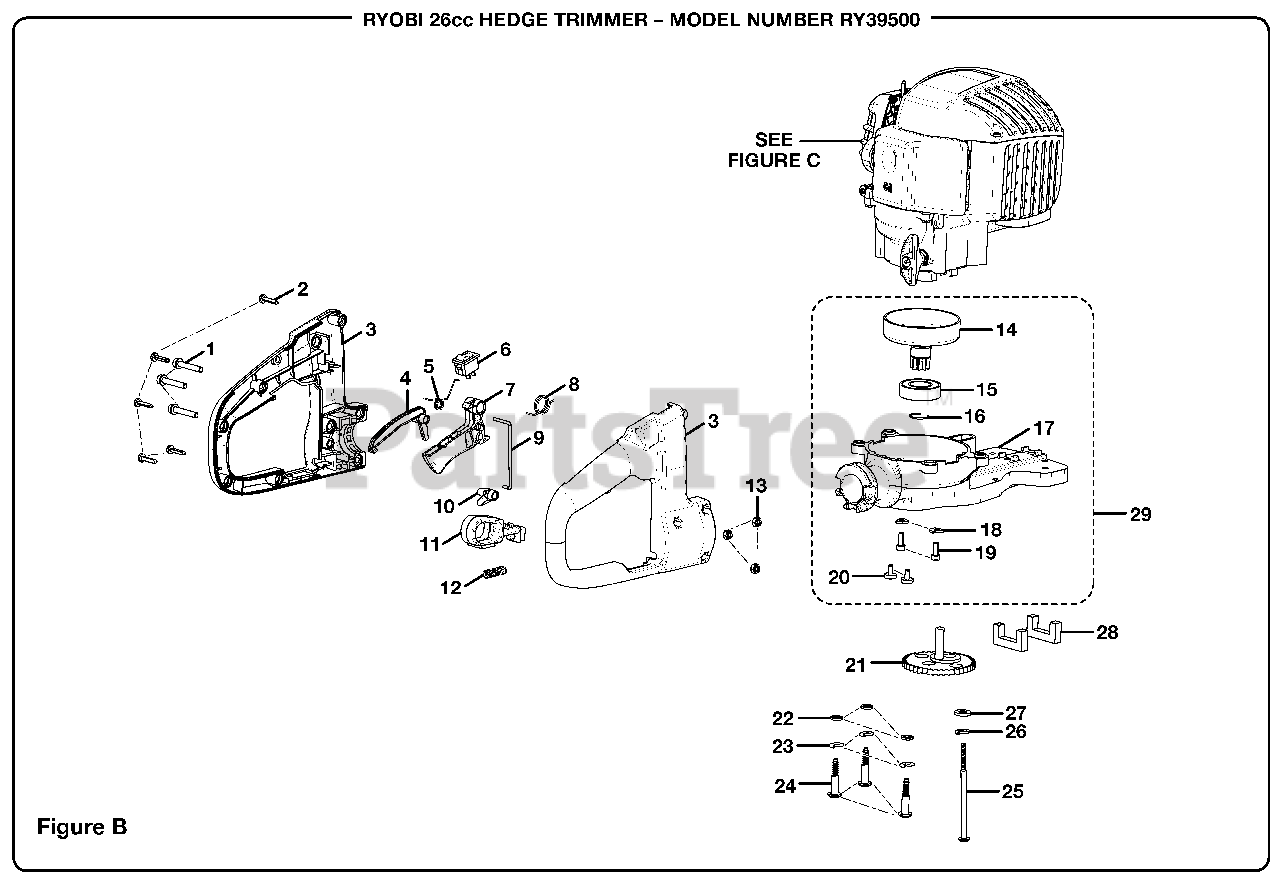

Figure B Parts Diagram

  • Title

1

Homelite 660927005

Screw

Note: (M5 x 28 mm) Purchase locally

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 660466001

Screw

Note: (M4 x 18 mm) Purchase locally

$1.49

$

In Stock, only 2 left!

0

3

Homelite 120900033

Rear Handle Housing Assembly

$6.49

$

Usually ships in 3-7 days

0

4

Homelite 518903001

Interlock Level

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 678542002

Trigger Lock Spring

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 760700002

Switch
(Superseded to 760700001)

$2.99

$

In Stock, Qty 5

0

7

Homelite 518902001

Throttle Trigger
(Superseded to 518902009)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 678582001

Trigger Spring

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 678583001

Lock Level
(Superseded to 678583002)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 518913001

Rotate Level

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 518904001

Rotate Lock Puller

$

$

Not available

12

Homelite 678542003

Rotate Lock Spring

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 678509001

Hex Nut

Note: (M5 x 0.8) Purchase locally

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 308794003

Clutch Drum Assembly

$

$

Not available

15

Homelite 638660001

Ball Bearing

$3.49

$

In Stock, only 1 left!

0

16

Homelite 678187002

C-Ring

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 640115001

Gear Box

$20.99

$

Usually ships in 3-7 days

0

18

Homelite 638553001

Washer

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 661559001

Screw

Note: (M4 x 11 mm) Purchase locally

$

$

Not available

20

Homelite 660925004

Screw

Note: (M4 x 12 mm) Purchase locally

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 308993002

Big Gear Assembly

$16.99

$

Usually ships in 3-7 days

0

22

Homelite 638554001

Washer

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 678433004

Spring Washer

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 660723001

Screw

Note: (M5 x 27 mm) Purchase locally

$

$

Not available

25

Homelite 660724001

Screw

Note: (M4 x 80 mm) Purchase locally

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 678343002

Spring Washer

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 638554002

Washer

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 901665001

Felt Seal

$

$

Not available

29

Homelite 308232001

Gear Box Assembly

Note: (Inc. Key Nos. 14-20)

$27.99

$

Usually ships in 3-7 days

0
