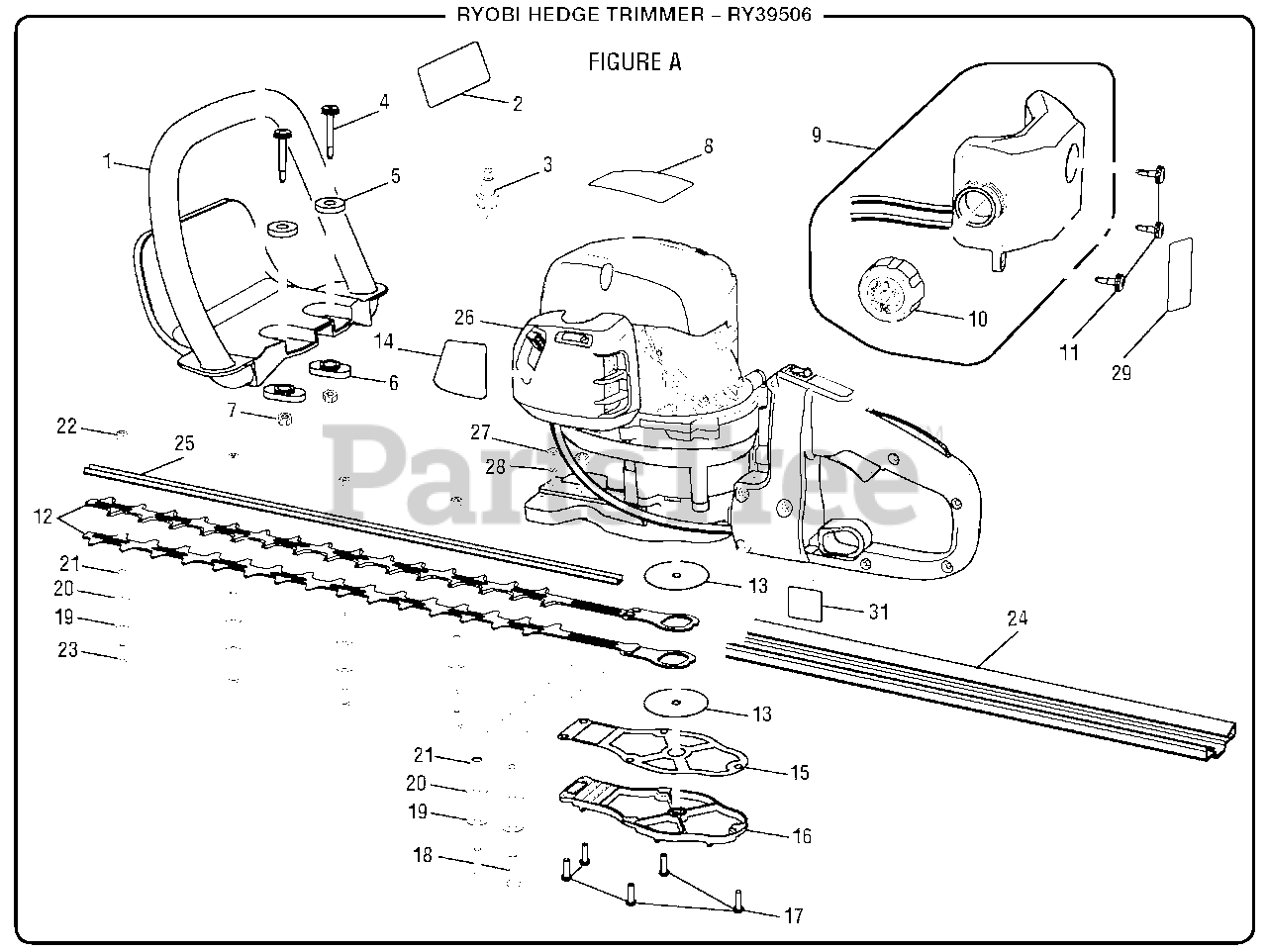

RY 39506 (090137053) - Ryobi Hedge Trimmer Figure A Parts Diagram

Hedge Trimmer

Figure A Parts Diagram

  • Title

1

Homelite 120900035

Front Handle Guard

Note: (Inc. Key No. 2)

$

$

Not available

2

Homelite 940964006

Warning Label

$

$

Not available

3

Homelite 870174002

Spark Plug (L7RTC Torch)
(Superseded to 870170001)

$10.99

$

Usually ships in 3-7 days

0

4

Homelite 660788004

Screw (M5 x 26 mm)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 561960001

Washer

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 561961001

Isolator

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 678509001

Lock Nut (M5 x 0.8 mm)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 940640014

Logo Label

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 308675067

Fuel Tank Assembly

Note: (Inc. Key No. 10)

$8.49

$

Usually ships in 3-7 days

0

10

Homelite 310817004

Fuel Cap

$2.99

$

In Stock, Qty 20+

0

11

Homelite 660970002

Screw (M4)

$1.49

$

In Stock, only 4 left!

0

12

Homelite 308548011

Blade Assembly

$

$

Not available

13

Homelite 638659003

Washer

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 940686150

Starting Label

$1.49

$

In Stock, only 3 left!

0

15

Homelite 901659001

Seal

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 308233001

Gear Box Cover

$5.99

$

Usually ships in 3-7 days

0

17

Homelite 660788003

Screw (M5 x 18 mm)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 660722002

Screw (M6 x 26 mm)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 678433003

Washer

$1.49

$

In Stock, only 4 left!

0

20

Homelite 678587001

Washer

$1.49

$

In Stock, Qty 5

0

21

Homelite 638668001

Spacer

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 678490002

Lock Nut (M6)

$1.49

$

In Stock, only 4 left!

0

23

Homelite 660722001

Screw (M6 x 17 mm)

$1.49

$

In Stock, Qty 6

0

24

Homelite 518921002

Scabbard

$

$

Not available

25

Homelite 638665002

Blade Top Strap

$8.49

$

Usually ships in 3-7 days

0

26

Homelite 311509003

Air Box Cover

Note: (Inc. Key No. 14)

$

$

Not available

27

Homelite 678460002

Lock Nut (M6)

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 678433004

Spring Washer

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 941790001

Gas Tank Warning Label

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 940654088

Combustion Warning Label

$1.49

$

In Stock, only 3 left!

0

31

Homelite 940781001

Indicator Label

$

$

Not available

Homelite 991000584

Operator's Manual (960085014)

Note: NOT SHOWN

$

$

Currently unavailable
