RY 4 CCS (090432036) - Ryobi String Trimmer, 30cc, Rev 02 (2019-09) FIGURE C Parts Diagram

String Trimmer, 30cc, Rev 02

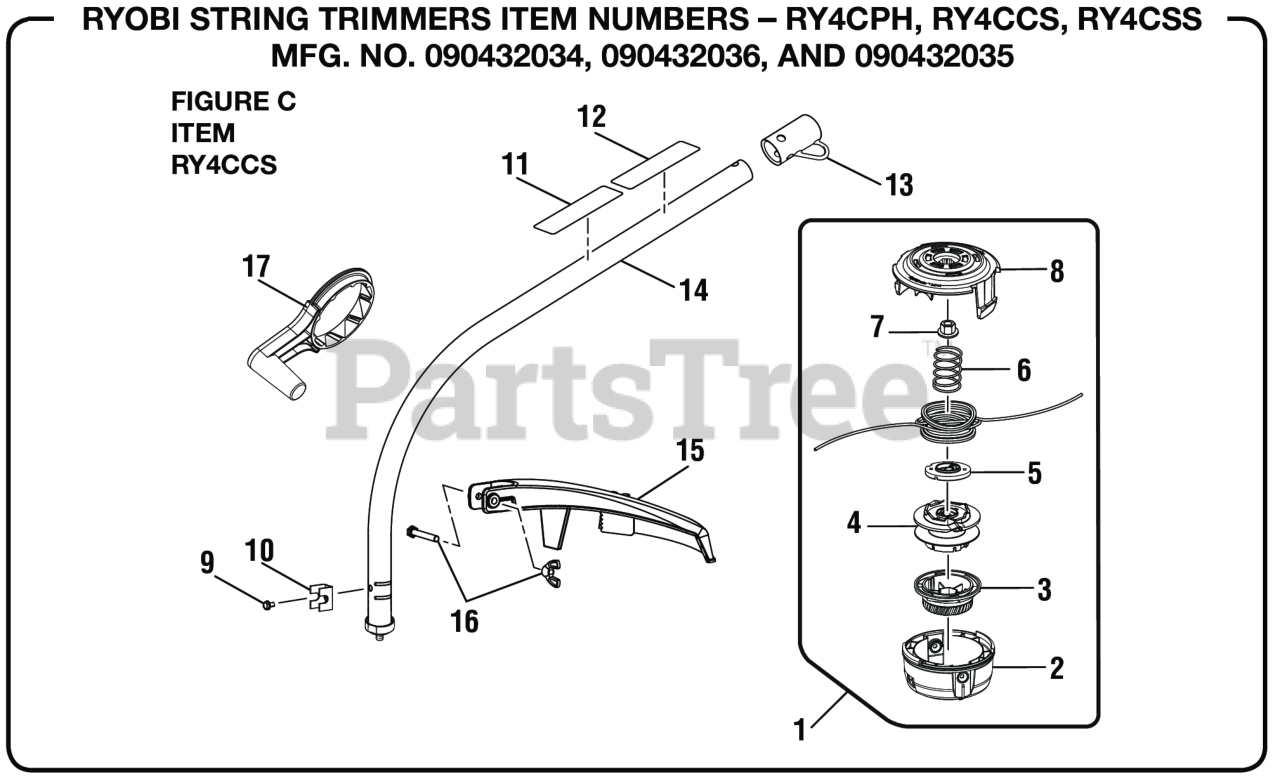

FIGURE C Parts Diagram

  • Title

1

Homelite 311759013

Trimmer Head Assembly (.095)

$33.99

$

In Stock, only 1 left!

0

2

Homelite 530366001

Lower Housing

$9.99

$

In Stock, only 2 left!

0

3

Homelite 530455002

Bump Knob (Green)

$4.99

$

In Stock, Qty 7

0

4

Homelite 530670001

Spool Assembly

$3.49

$

In Stock, Qty 6

0

5

Homelite 529803001

String Guide

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 678749001

Compression Spring

$2.49

$

In Stock, Qty 14

0

7

Homelite 662569001

Flange Nut (M8)

$2.49

$

In Stock, only 2 left!

0

8

Homelite 530001004

Upper Housing

$4.99

$

In Stock, only 2 left!

0

9

Homelite 660647001

Screw (#10-32 x 3/8 in., Hex Washer Hd. S.T.)

$2.49

$

In Stock, Qty 10

0

10

Homelite 638001001

CLAMP

$2.49

$

In Stock, only 4 left!

0

11

Homelite 940726013

Ryobi EXPAND-IT Label

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 940657165

Warning Icon Label

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 518019002

Storage Hanger Cap
(Superseded to 518019004)

$2.49

$

In Stock, Qty 6

0

14

Homelite 307486002

Curved Shaft Assembly

$

$

Not available

15

Homelite 308744010

Grass Deflector Assembly

$16.99

$

In Stock, only 2 left!

0

16

Homelite 205012001

Fastener Parts Kit

$8.49

$

In Stock, only 1 left!

0

17

Homelite 312283001

Crank Handle Assembly

$3.49

$

In Stock, Qty 5

0
