RY 40 PW15 VNM (095079840) - Ryobi 40V Pressure Washer, Rev 01 (2022-03) FIGURE A Parts Diagram

40V Pressure Washer, Rev 01

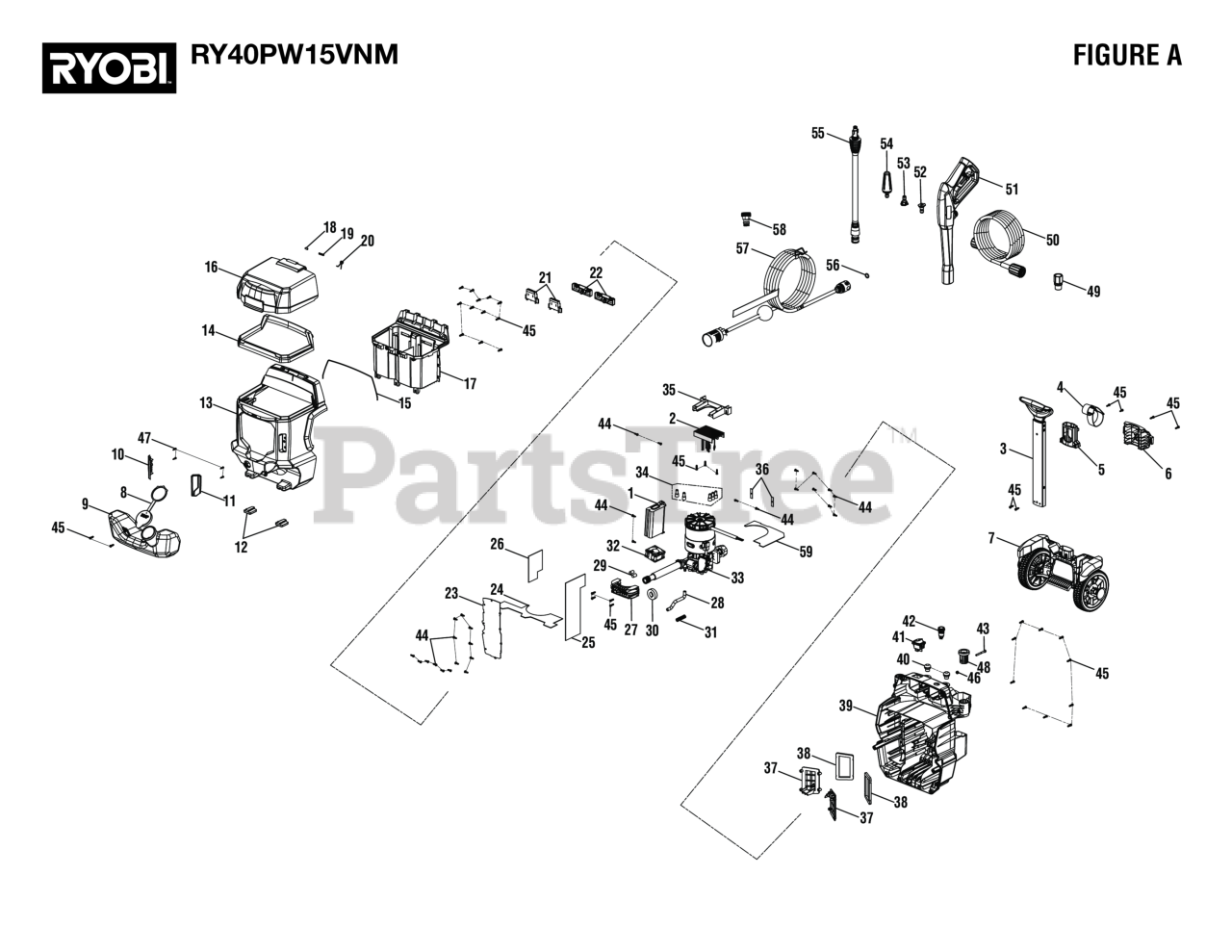

FIGURE A Parts Diagram

  • Title

1

Homelite 280579005

40V DC Controller

$260.99

$

Usually ships in 3-7 days

0

2

Homelite 280865002

Control Board Assembly

$191.99

$

Usually ships in 3-7 days

0

3

Homelite 308790085

Retractable Handle Assembly

Note: (Inc Key Nos. 3-5 & 45)

$65.99

$

Usually ships in 3-7 days

0

4

Homelite 310801007

Hook and Loop Strap

$

$

Not available

5

Homelite 522032090

Hose Bracket

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 522032021

Holder Cover

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 310224099

Wheel Base Assembly (See Fig C)

$

$

Currently unavailable

8

Homelite 310650004

Detergent Tank Cap

$3.49

$

In Stock, Qty 6

0

9

Homelite 580875022

Soap Tank

$13.99

$

Usually ships in 3-7 days

0

10

Homelite 522032087

Mount Cover (Left)

$2.49

$

Usually ships in 0 days

0

11

Homelite 522032088

Mount Cover (Right)

$2.49

$

Usually ships in 0 days

0

12

Homelite 561383059

Rubber Foot

$3.99

$

Usually ships in 3-7 days

0

13

Homelite 522032084

Front Housing

$53.99

$

Usually ships in 3-7 days

0

14

Homelite 561383057

Battery Cover Rubber Seal

$38.99

$

Usually ships in 0 days

0

15

Homelite 561383034

Front Housing Rubber Seal

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 522032085

Battery Cover

$25.99

$

Usually ships in 0 days

0

17

Homelite 522032086

Battery Tray

$29.99

$

Usually ships in 3-7 days

0

18

Homelite 621628001

Battery Door Axle

$2.49

$

In Stock, only 3 left!

0

19

Homelite 679073001

Compression Spring

$2.49

$

In Stock, only 1 left!

0

20

Homelite 679074002

Battery Cover Spring

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 291705005

Battery Holder Assembly (See Fig B)

$

$

Currently unavailable

22

Homelite 525651005

Battery Cover Connector

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 518790028

Air Way Cover

$4.99

$

Usually ships in 3-7 days

0

24

Homelite 518790052

Air Front Sheet

$7.49

$

Usually ships in 0 days

0

25

Homelite 518790031

Water Block Sheet (Left)

$4.99

$

Usually ships in 3-7 days

0

26

Homelite 518790032

Water Block Sheet (Right)

$4.49

$

Usually ships in 3-7 days

0

27

Homelite 522038014

Pump Bracket

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 561399026

Siphon Tube

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 570570002

Shock Absorbing Bushing

$

$

Not available

30

Homelite 980414016

Outlet Tube Cover Foam

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 678857020

Detergent Tank Spring (Compression Spring

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 890025003

Control Board Cooling Fan

$39.99

$

Usually ships in 3-7 days

0

33

Homelite 308833085

Motor and Pump Assembly

$824.99

$

Usually ships in 0 days

0

34

Homelite 870601002

Close-End Connector

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 527932029

Control Board Bracket

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 638700042

Metal Plate

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 522038017

Corner Cover

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 980414018

Cover Sealing Foam

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 522032014

Rear Housing

$60.99

$

Usually ships in 3-7 days

0

40

Homelite 561383021

Nozzle Grommet

$2.49

$

Usually ships in 3-7 days

0

41

Homelite 760504024

Power Switch

$12.99

$

Usually ships in 3-7 days

0

42

Homelite 760504023

Boost Button

$39.99

$

Usually ships in 3-7 days

0

43

Homelite 660454009

Bolt (M5 x 42 mm)

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 660925012

SCREW, ST3.5X12, PAN HEAD

$

$

Not available

45

Homelite 661403016

Screw (M4.2 x 15 mm, Phillips Hd. S.T.)

$2.49

$

Usually ships in 3-7 days

0

46

Homelite 678509001

Lock Nut (M5 x 0.8 mm)

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 661403015

Screw (M2.9 x 14 mm, Pan Hd.)

$

$

Not available

48

Homelite 561383060

Primer Post Rubber Seal

$5.49

$

Usually ships in 0 days

0

49

Homelite 318832001

Priming In-Line Accessory

$33.99

$

Usually ships in 3-7 days

0

50

Homelite 308835119

25 ft. Hose

$65.99

$

In Stock, only 2 left!

0

51

Homelite 308760094

Trigger Handle

$43.99

$

Usually ships in 3-7 days

0

52

Homelite 308698033

15 Deg Nozzle

$8.49

$

Usually ships in 3-7 days

0

53

Homelite 308706013

Soap Nozzle (Blue)

$2.49

$

In Stock, only 4 left!

0

54

Homelite 308311043

Turbo Nozzle

$20.99

$

Usually ships in 3-7 days

0

55

Homelite 308494075

Spray Wand Assembly

$26.99

$

In Stock, only 1 left!

0

56

Homelite 570742189

O-Ring (ID11.3 x CS2.5)

$2.49

$

In Stock, only 2 left!

0

57

Homelite 308835140

Suction Hose w/Swivel Connector

$60.99

$

Usually ships in 3-7 days

0

58

Homelite 308751031

Inlet Connector

$14.99

$

In Stock, only 2 left!

0

59

Homelite 518790029

Air-Separation Sheet

$4.99

$

Usually ships in 3-7 days

0

Homelite 998000754

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 998000755

Quick Refrence Guide

Note: Not Shown

$

$

Currently unavailable
