RY 40003 (107297001) - Ryobi String Trimmer Powerhead, Rev 01 (2017-10) Figure A Parts Diagram

String Trimmer Powerhead, Rev 01

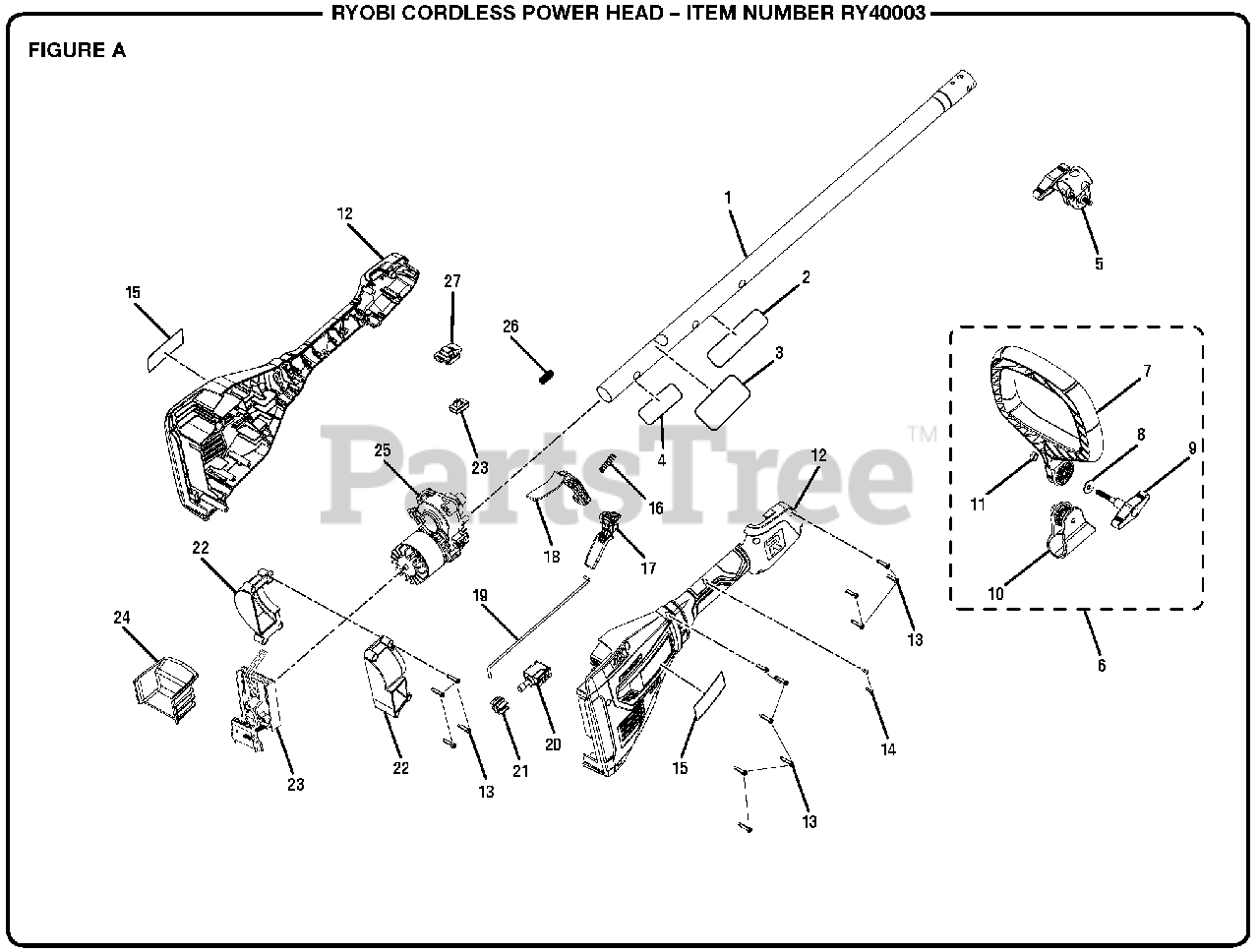

Figure A Parts Diagram

  • Title

1

Homelite 313455001

Upper Boom Assembly

Note: (Inc. Key Nos. 2-4)

$111.99

$

Usually ships in 3-7 days

0

2

Homelite 941013005

Warning Label (French/Spanish)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 941013004

Warning Icon Label

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 941588210

Data Label

$

$

Not available

5

Homelite 313454001

Boom Clamp Assembly

$5.99

$

Usually ships in 3-7 days

0

6

Homelite 313554001

Front Handle Assembly

Note: (Inc. Key Nos. 7-11)

$13.99

$

Usually ships in 3-7 days

0

7

Homelite 523409001

Front Handle

$9.49

$

Usually ships in 3-7 days

0

8

Homelite 678587003

Washer (ID6.4 x OD18 x 1.6t)

$

$

Not available

9

Homelite 313559001

Knob Assembly

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 524847002

Auxiliary Handle Bracket

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 680196006

Hex Nut (M6)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 313242002

Rear Handle Assembly

Note: (Inc. Key No. 15)

$

$

Not available

13

Homelite 661864007

Screw (M4 x 18 mm, T15 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 660203052

Screw (M3 x 8 mm, Pan. Hd.)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 940705393

Logo Label

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 695180001

Compression Spring (Trigger Lock)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 534148001

Switch Trigger
(Superseded to 313687001)

$

$

Not available

18

Homelite 534152001

Trigger Lock-Out Lever
(Superseded to 313687001)

$

$

Not available

19

Homelite 639787001

Rod

$

$

Not available

20

Homelite 760952002

Variable Speed Switch

$8.99

$

Usually ships in 3-7 days

0

21

Homelite 534149001

Switch Cap

$

$

Not available

22

Homelite 313350001

Motor Cover

$4.99

$

Usually ships in 3-7 days

0

23

Homelite 313240001

Electric Controller and Switch Assembly

$

$

Not available

24

Homelite 534155001

Bucket Housing

$

$

Not available

25

Homelite 313244001

Motor and Gear Box Assembly

$133.99

$

Usually ships in 3-7 days

0

26

Homelite 690140011

Compression Spring
(Superseded to 06713)

$1.49

$

In Stock, only 2 left!

0

27

Homelite 534157001

Slide Switch Cover

$

$

Not available

Homelite 995000324

Operator's Manual

Note: Not Shown

$

$

Not available
