RY 40006 (314778002) - Ryobi 40V String Trimmer Powerhead, Rev 02 (2019-11) General Assembly Parts Diagram

40V String Trimmer Powerhead, Rev 02

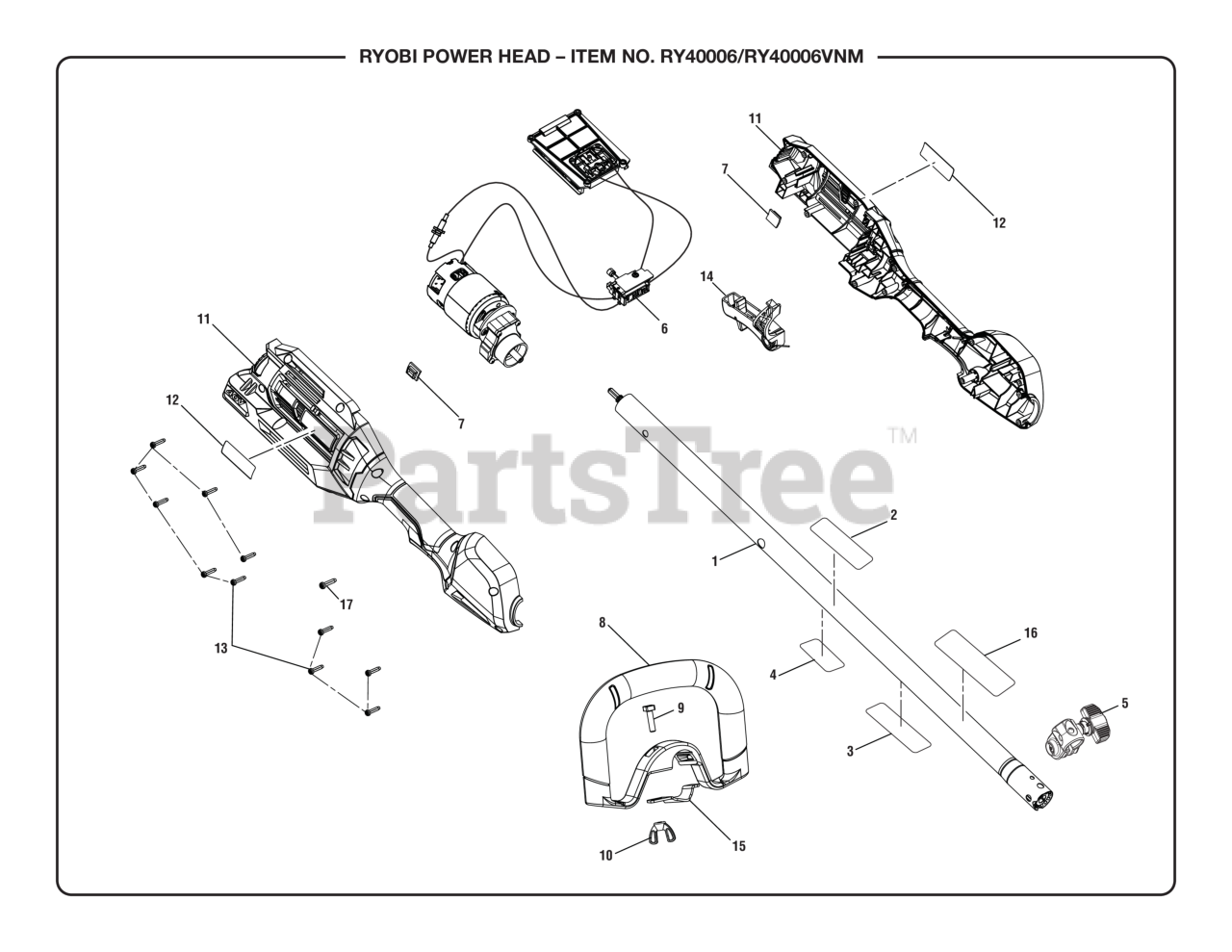

General Assembly Parts Diagram

  • Title

1

Homelite 314829002

Boom Assembly
(Superseded to 317463001)

Note: (Inc. Key Nos. 2-4 and 16, RY40006)

$51.99

$

Usually ships in 3-7 days

0

2

Homelite 941013004

Warning Icon Label

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 941013005

Warning Label (French/Spanish)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 941588367

Data Label

Note: (RY40006)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 314562001

Boom Clamp Assembly

$

$

Not available

6

Homelite 314832002

Motor, Gear Box, Switch & Contact Plate Assembly
(Superseded to 317464001)

$278.99

$

Usually ships in 3-7 days

0

7

Homelite 570115001

Rubber Bumper

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 308056009

Front Handle Assembly

Note: (Inc. Key Nos. 9-10 & 15)

$26.99

$

In Stock, only 2 left!

0

9

Homelite 660857001

Bolt (1/4-20 x 1 in., Square Hd.)
(Superseded to PS02435)

$4.49

$

In Stock, only 1 left!

0

10

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 3 left!

0

11

Homelite 314830001

Rear Handle Assembly (Inc. Key No. 12)

Note: (Inc. Key No. 12)

$33.99

$

Usually ships in 3-7 days

0

12

Homelite 940705432

Logo Label

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 661864007

Screw (M4 x 18 mm, T15 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 314833001

Switch Trigger Assembly

$12.99

$

Usually ships in 3-7 days

0

15

Homelite 639167001

Front Handle Clamp

$3.99

$

Usually ships in 3-7 days

0

16

Homelite 941851150

Attachment Label

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 660031017

Screw (M3.5 x 16 mm, T10 Torx Pan Hd.)

$0.99

$

Usually ships in 3-7 days

0

Homelite 995000659

Operator's Manual

Note: Not Shown

$

$

Not available
