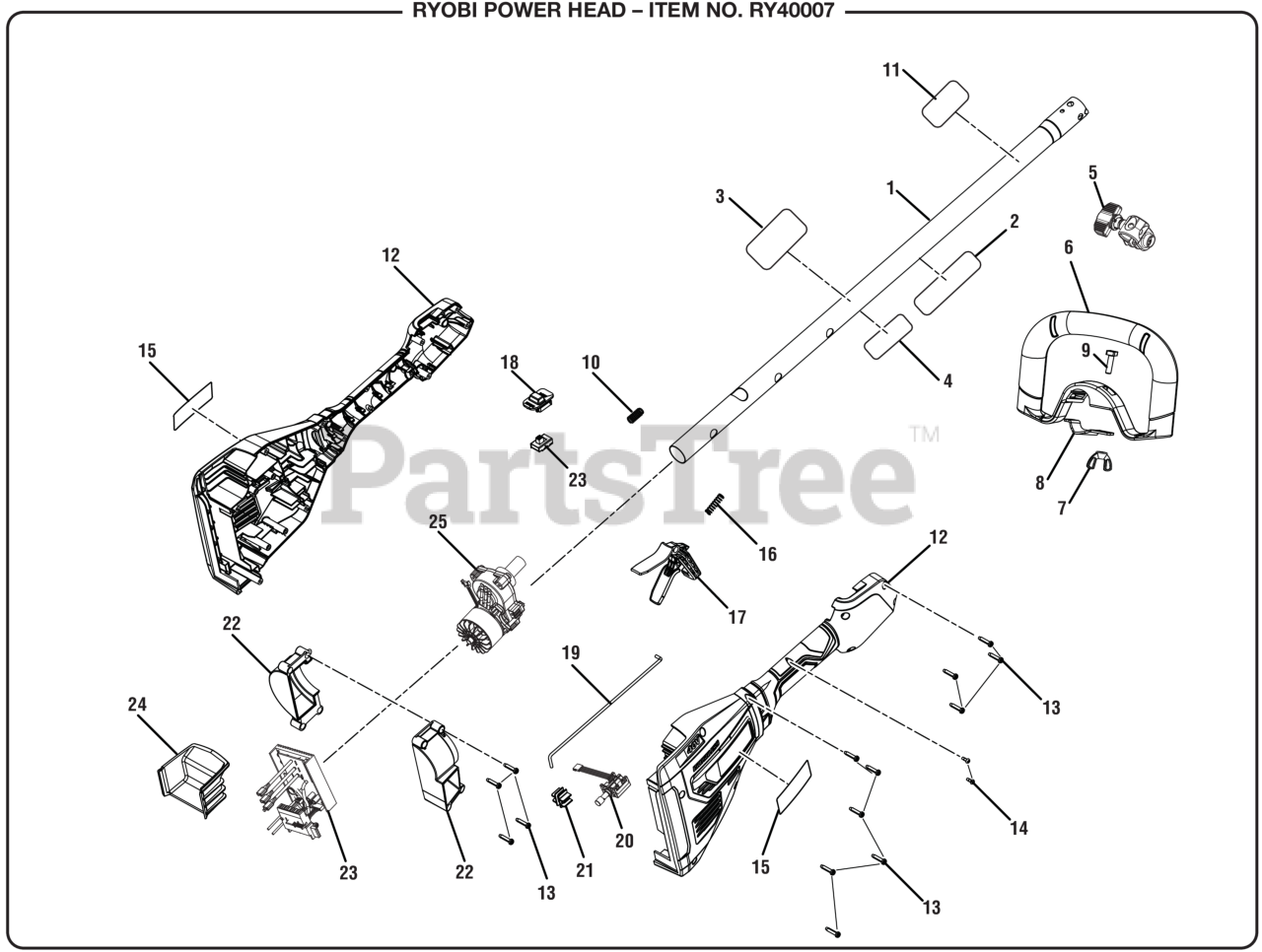

RY 40007 (315580001) - Ryobi String Trimmer Powerhead, Rev 02 (2020-01) General Assembly Parts Diagram

String Trimmer Powerhead, Rev 02

General Assembly Parts Diagram

  • Title

1

Homelite 315648001

Upper Boom Assembly

Note: (Inc. Key Nos. 2-4 & 11)

$25.99

$

Usually ships in 3-7 days

0

2

Homelite 941013005

Warning Label (French/Spanish)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 941013004

Warning Icon Label

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 941851235

Data Label

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 314562001

Boom Clamp Assembly

$

$

Not available

6

Homelite 308056009

Front Handle Assembly

Note: (Inc. Key Nos. 7-9)

$13.99

$

Usually ships in 3-7 days

0

7

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$1.49

$

In Stock, only 3 left!

0

8

Homelite 639167001

Front Handle Clamp

$1.99

$

In Stock, only 1 left!

0

9

Homelite 660857001

Bolt (1/4-20 x 1 in., Square Hd.)
(Superseded to PS02435)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 690140011

COMPRESSION SPRING
(Superseded to 06713)

$1.49

$

In Stock, only 4 left!

0

11

Homelite 941851150

Attachment Label

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 313242004

Rear Handle Assembly

Note: (Inc. Key No. 15)

$31.99

$

Usually ships in 3-7 days

0

13

Homelite 661864007

Screw (M4 x 18 mm, T15 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 660203052

Screw (M3 x 8 mm, Pan. Hd.)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 940705393

Logo Label

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 695180001

Compression Spring (Trigger Lock)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 313687001

Switch Trigger Assembly w/Lock-Out

$

$

Not available

18

Homelite 534157001

Slide Switch Cover

$

$

Not available

19

Homelite 639787001

Rod

$

$

Not available

20

Homelite 760579005

Switch

$9.99

$

Usually ships in 3-7 days

0

21

Homelite 534149001

Switch Cap

$

$

Not available

22

Homelite 313350001

Motor Volute Assembly

$4.99

$

Usually ships in 3-7 days

0

23

Homelite 313240001

Electric Controller and Switch Assembly

$

$

Not available

24

Homelite 534155001

Bucket Housing

$

$

Not available

25

Homelite 313244001

Motor and Gear Box Assembly

$133.99

$

Usually ships in 3-7 days

0

Homelite 995000923

Operator's Manual

$

$

Not available
